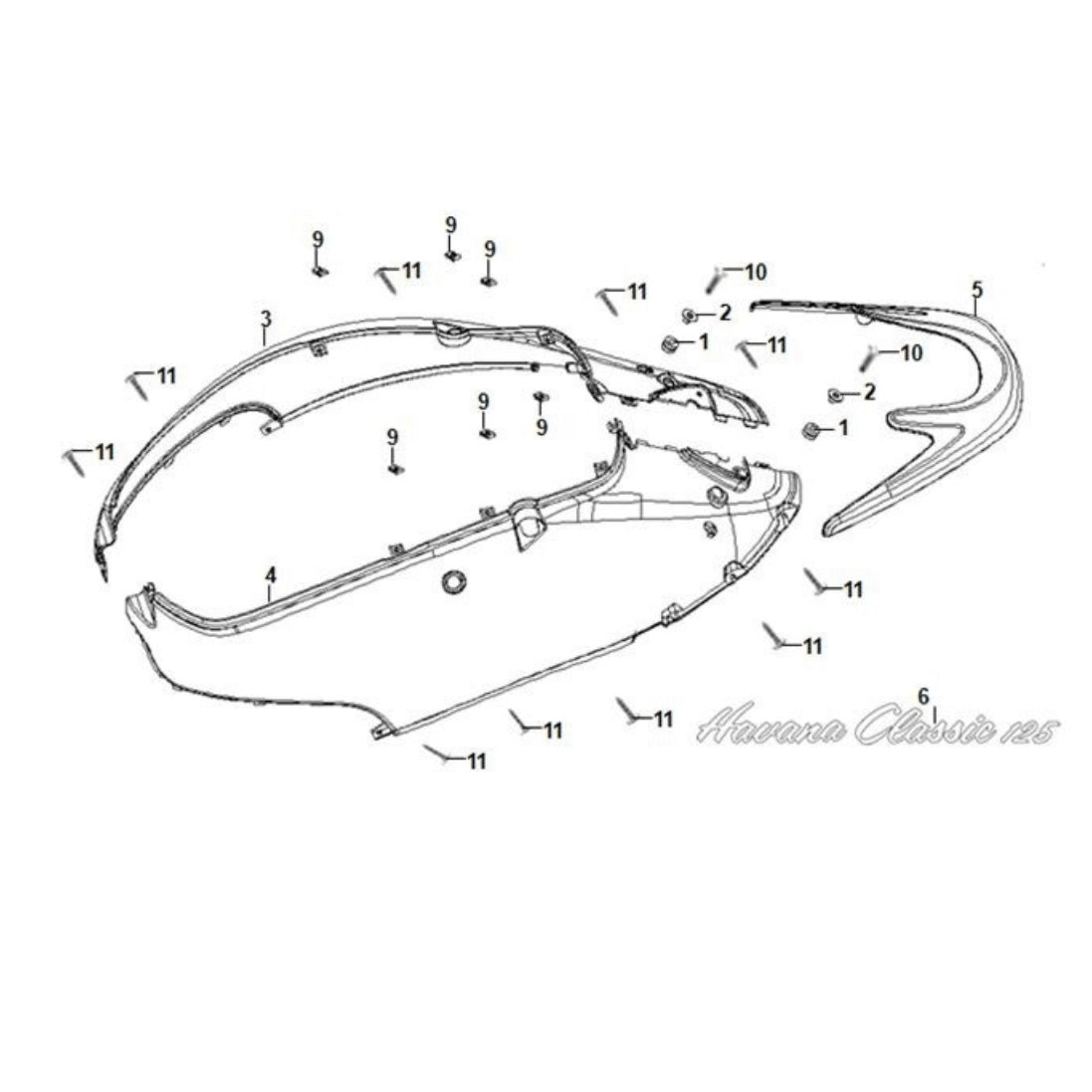

Lance Havana 125 - F 08 Body Cover Diagram

Lance Havana 125 - F 08 Body Cover Diagram

***NOTE: For colored body panels, please select desired color to match your scooter***

Parts:

• 1.
• 64304-X01-0000-havana125 - Body Cover Rubber

• 2.
• 64306-X01-0000-havana125 - Body Cover Collar

• 3.
• 83500-Z4A-0000-havana125 - RH Body Cover

• 4.
• 83600-Z4A-0000-havana125 - LH Body Cover

• 5.
• 83700-Z4A-0000-havana125 - Rear Body Chrome Cover

• 6.
• 87127-Z4E-0000-havana125 - LH or RH Body Emblem

• 9.
• 90302-SA4-9000-0-HAVANA125 - Spring Nut, 4mm

• 11.
•  93903-45340-HAVANA125 - Tapping Screw 5*16 /each
