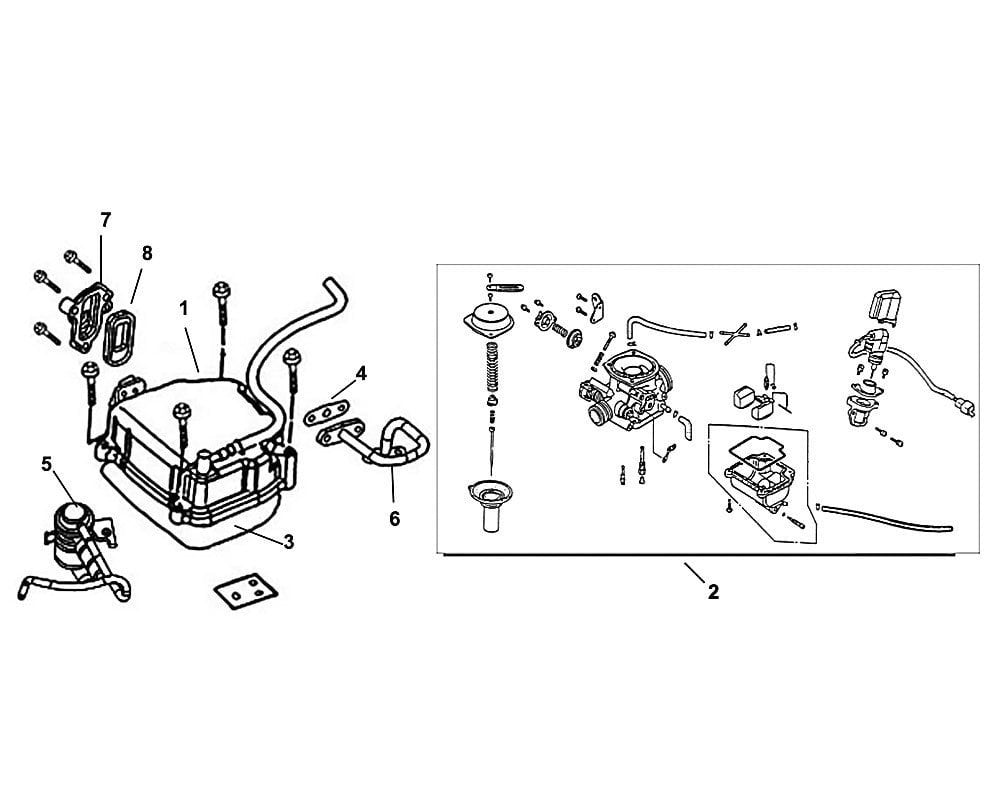

E 02 Cylinder Head Cover / Carburetor for Lance Cali Classic 125cc

Parts:

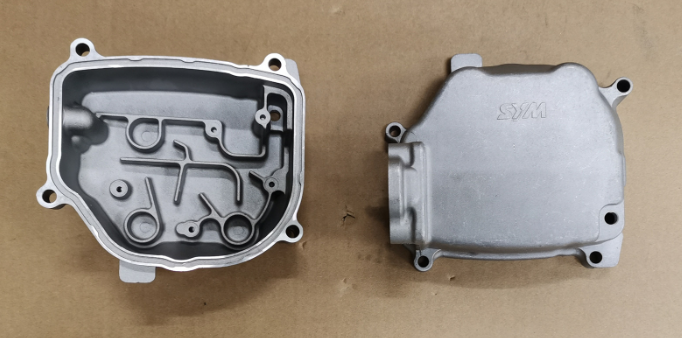

• 01 Valve Cover
•  12301-GY6-0000-cali125

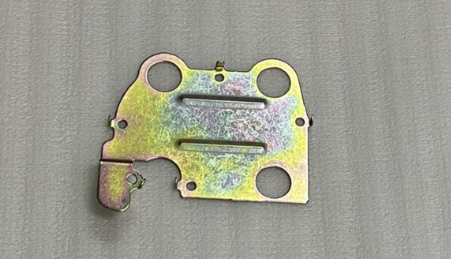

• 02 Breather Separate Plate
• 12302-GY6-A001-CALI125

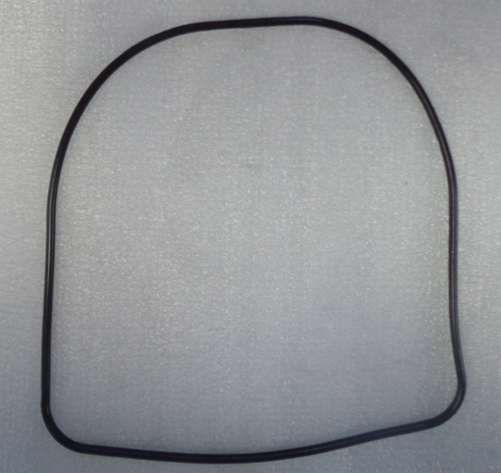

• 03 Valve Cover Gasket
•  12391-GY6-9400-cali125

• 04 Carburetor Assy
•  16100-ABP-0000-cali125

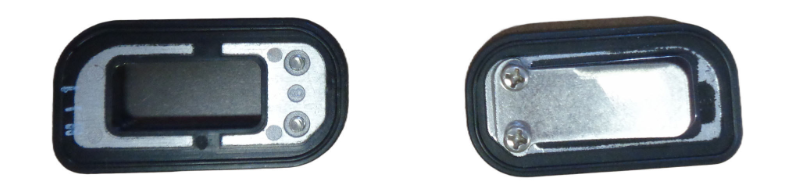

• 05 Reed Valve Comp
•  18601-MJ1-9000-cali125

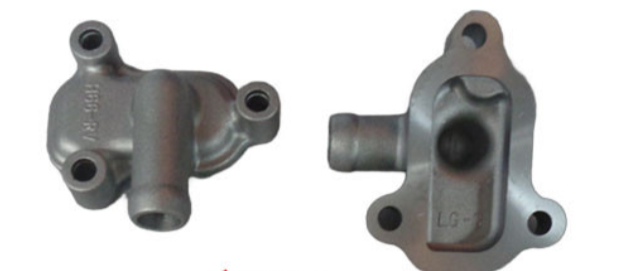

• 06 Reed Valve Cover
•  18612-H66-0002-cali125

• 07 Al Pipe Gasket
•  18645-M9Q-0000-cali125

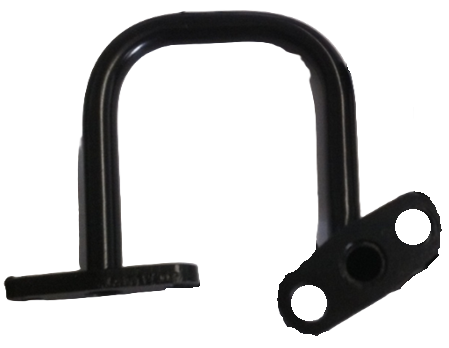

• 08 Al Pipe
•  18647-GY6-9400-cali125

• 09 Flange Bolt 6x25
• 96001-06025-0800-CALI125

• 10 Flange Bolt 6x40
• 96001-06040-08-CALI125

• 11 Flange Bolt 6x50
• 96001-06050-08-CALI125

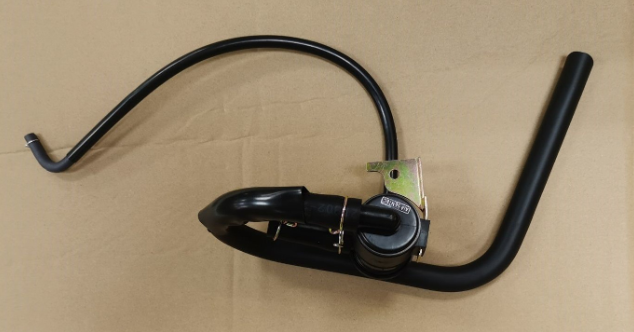

• 12 A.I.C.V. Unit
•  1865A-ALA-6001-cali125


• 13 A.I.S.V. Stay Comp
• 18659-H69-0000-CALI125

NOTE:  Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
