F07 Floor Panel / Center Cover for Lance Cali Classic 125cc

NOTE: When purchasing painted body panels, please choose the correct color option for your scooter.

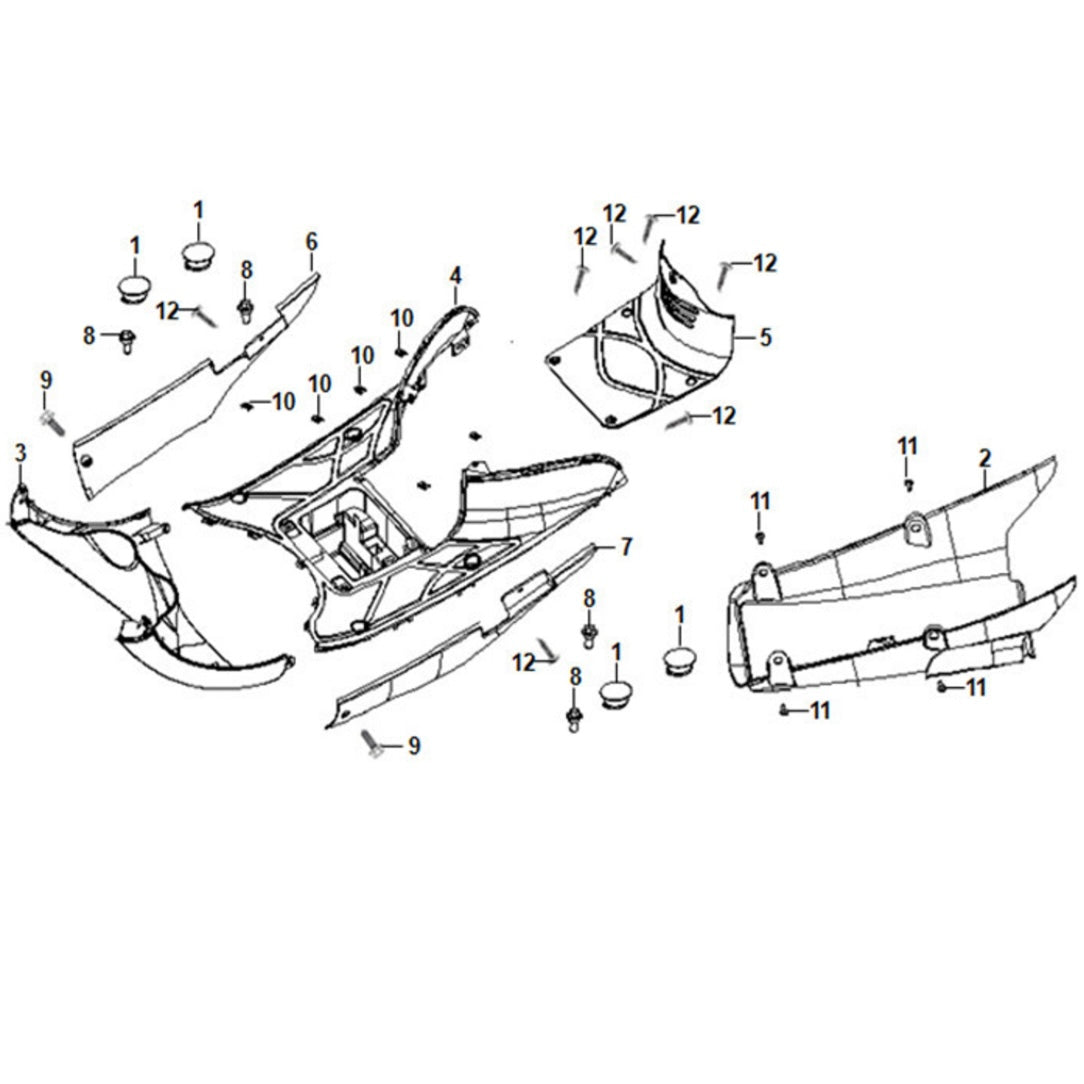

Parts:

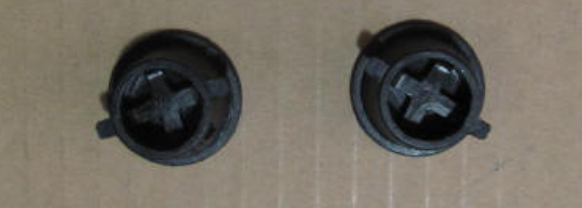

01 Cap A Floor Step
50612-APA-0000-cali125

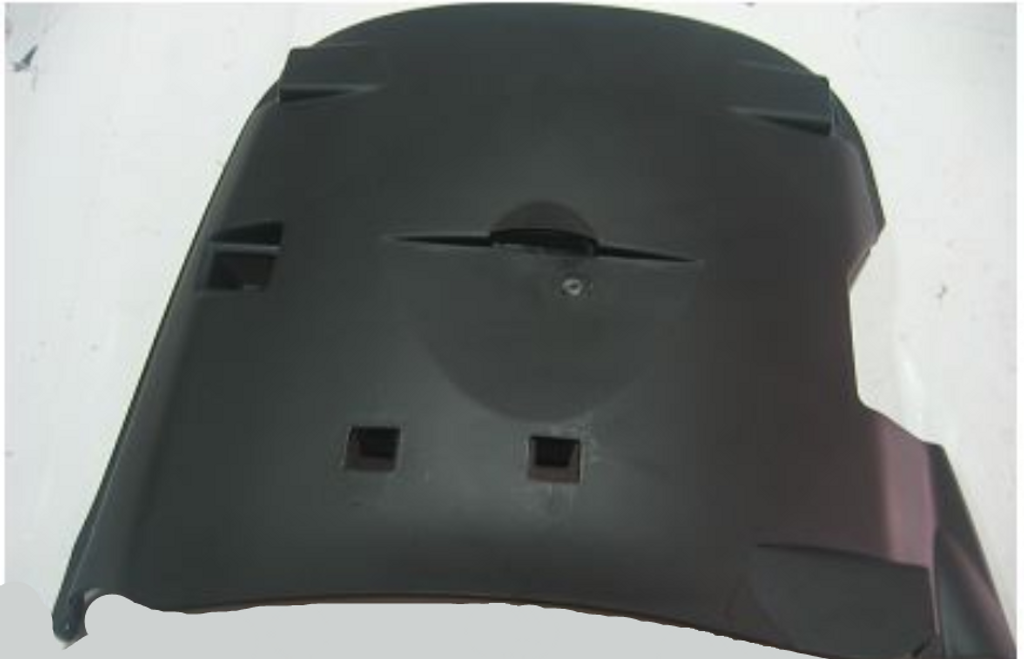

02 Under Cover
50613-ALA-0000-cali125

03 Front Spolish
64300-Z4A-0000-cali125

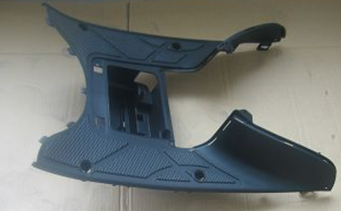

04 Floor Panel
64310-A9A-0002-cali125

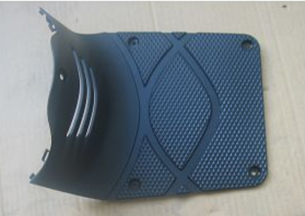

05 Battery Cover
50326-Z4A-0000-cali125

06 Right Side Cover
83520-Z4A-0000-cali125

07 Left Side Cover
83620-Z4A-0000-cali125

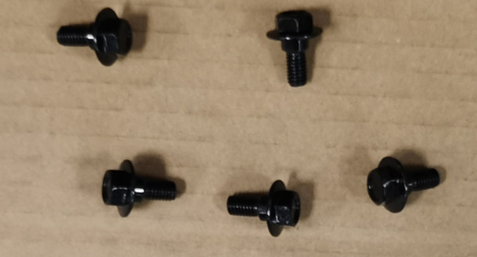

08 Flange Bolt 6mm
90111-AAA-0000-CALI125

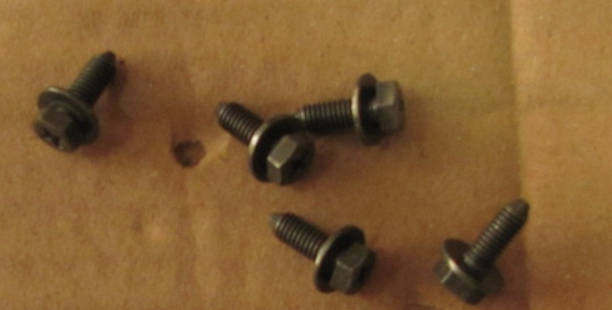

09 Washer Bolt 5*14
90118-ALA-0000-CALI125

10 Spring Nut 4mm
90302-SA4-9000-CALI125

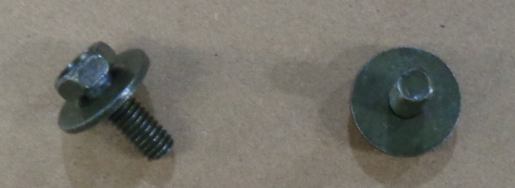

11 Washer Bolt 6*16 cali 125
93404-06016-04-CALI125

11 Washer Bolt 6x*6 cali 200i
93404-06016-04-CALI200i

12 Tapping Screw 5*16 (each)
93903-35340-00-CALI125

NOTE: Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
