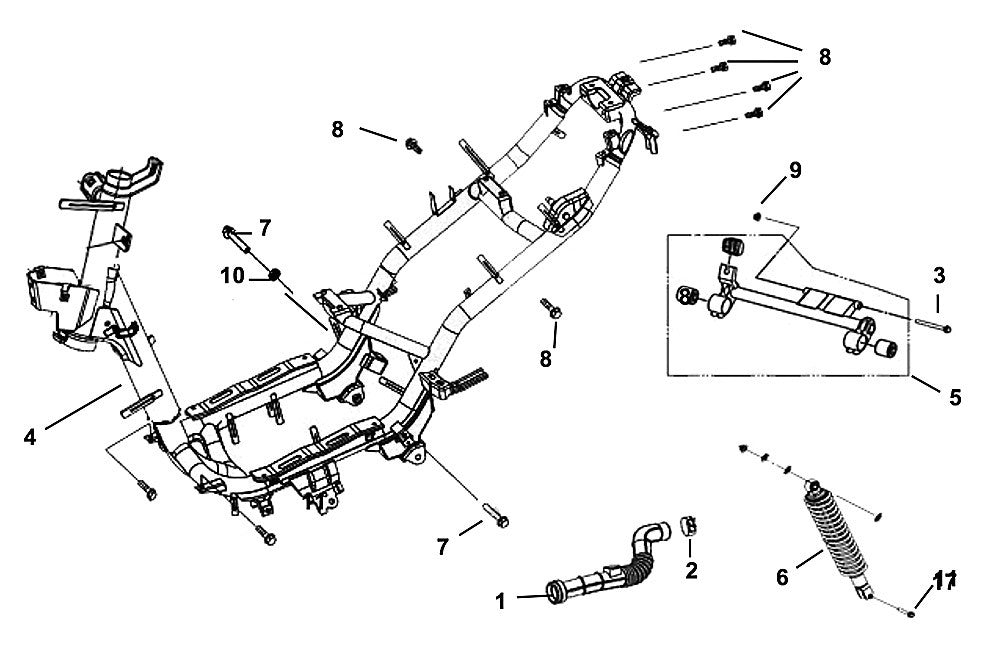

F-19 Frame Body / Engine Hanger for Lance Cabo 200i Gas Scooter

Frame Body / Engine Hanger for Lance Cabo 200i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

Parts:

• 01 L. Cover Duct
•  11345-ABA-0005

• 02 L. Cover Duct Band
•  11346-ABA-0000

• 03 Flange Bolt 10*172
•  44301-AAA-0000-00

• 04 Frame Body Comp
•  50100-AE4-0001

• 05 Eng Hanger Link Assy
•  50350-ANA-0101

• 06 RR. Cushion Assy
•  52400-ABA-0101-M1

• 07 Flange bolt 10*55 (green)/each
•  90106-AAA-0000

• 08 Flange Bolt 6x12
•  95801-06012-04

• 09 Flange U Nut 10mm/each
•  90304-AAA-0000

• 10 Distance Collar
•  90121-M9Q-0001

• 11 Flange Bolt 8x35
•  95801-08035-04

NOTE:  Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive
