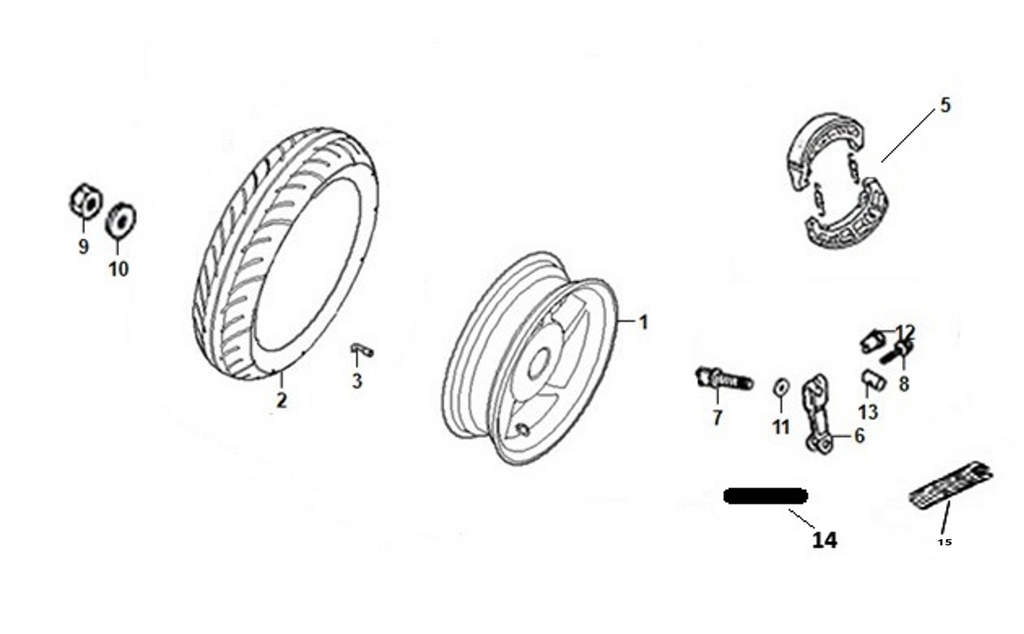

F 11 Rear Wheel - Lance Cali Classic 125cc

Parts:

• 01 Rear Wheel Rim
•  42601-Z5A-0000-cali125

• 02 Rear Tire
•  42710-X1A-0000-cali125

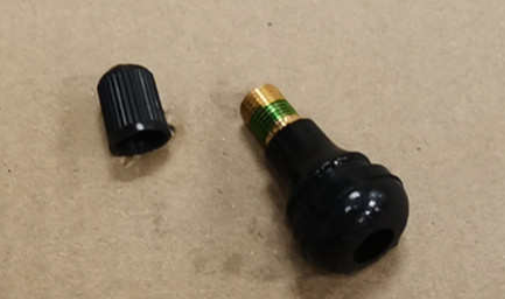

• 03 Valve Stem
•  42753-Z2D-0000-M1-cali125

• 05 Rear Brake Assy
• 4312A-H1A-0000-cali125

• 06 Rear Brake Arm
•  43410-ALG-0000-cali125

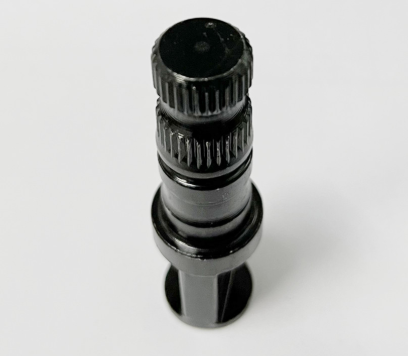

• 07 RR. Brake Cam
•  43141-ANT-0000-cali125

• 08 Flange bolt 6x32
•  95801-06032-08-cali125

• 09 Self-lock Nut 16mm
•  90305-AAA-0000-cali125

• 10 16mm Washer
•  90501-M9Q-0000-cali125

• 11 O-ring 11.3x1.3
•  91352-M9Q-0000-M1-cali125

• 12 Brake Arm Joint B
•  95015-32001-cali125

• 13 Adjust Nut B
•  95015-42000-cali125

• 14 Brake Cable Boot
•  43452-M9Q-0000-cali125

• 15 RR. BRK. Arm Return SRG
•  43472-ABA-0000-cali125

NOTE:  Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
