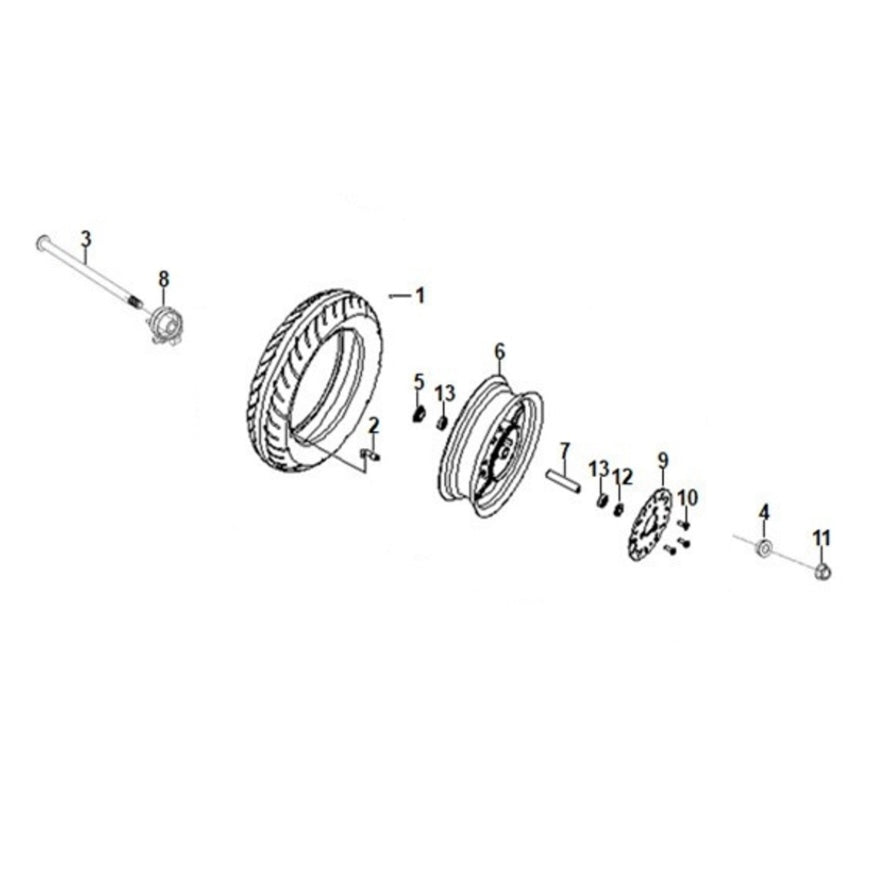

F 10 - Front Wheel - Cali Classic 200i

Part Numbers:

• 01 FR. Tire
•  44710-X1A-0000-cali200i

• 02 Rim Valve
•  42753-Z2D-0000-cali200i

• 03 Front Wheel Axle
•  44301-AAA-0000-cali200i

• 04 FR. Wheel Left Collar
•  44311-AAA-9000-cali200i

• 05 SPDMT Gear Box Seal
•  91258-M9Q-0000-cali200i

• 06 BLACK FR. Cast Wheel
•  44601-AAA-0000-K-cali200i

• 06 WHITE FR. Cast Wheel
• 44601-AAA-0000-WA-cali200i

• 07 FR. Axle Dist Collar
•  44620-AAA-0000-cali200i

• 08 SPDMT Gear Box Assy
•  44800-ALA-0000-cali200i

• 09 FR. Brake Disc
•  45121-AWU-0000-K-M1-cali200i

• 10 FR. Disc Bolt 8*26
•  90106-N02-0003-cali200i

• 11 Self Lock Nut 12mm
•  90306-X11-0000-cali200i

• 12 Dust Seal 20*32*5
•  90754-M9Q-0000-cali200i

• 13 Bearing 6201(U) (NTN)
•  90912-M9Q-0000-M1-cali200i

NOTE:  Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
