F-09 Front Wheel for Lance Cabo 200i Gas Scooter

Front Wheel for Lance Cabo 200i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

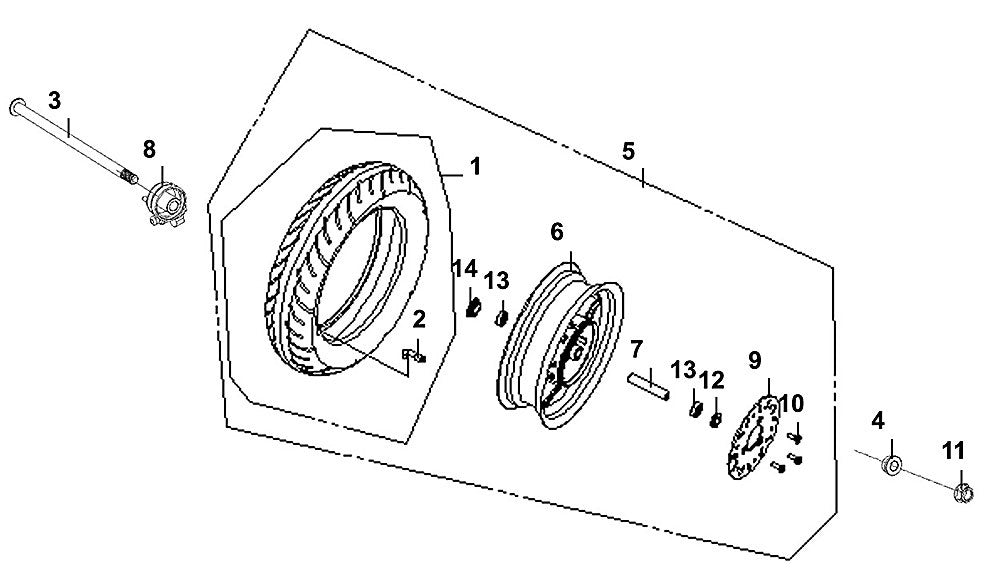

Parts:

• 01 Tire
•  44710-AWU-0000

• 02 Rim Valve
•  42753-Z2D-0000

• 03 FR. Wheel Axle M10*172
•  44301-AAA-0000

• 04 Collar FR Wheel Side
•  44311-AAA-0000

• 06 FR. Cast Wheel
•  44601-AAA-0003-K

• 07 FR. Axle Dist Collar
•  44620-AAA-0000

• 08 SPDMT Gear Box Assy
•  44800-ATA-0000-K

• 09 FR. Brake Disk
•  45121-AWU-0000

• 10 FR. DISK Bolt 8*26*3each
•  90106-N02-0003

• 11 Self-lock Nut 12mm
•  90306-N7C-0000

• 12 Dust Seal 20*32*5each
•  90754-M9Q-0000

• 13 Bearing 620 (U) (NTN)
•  90912-M9Q-0000-M1

• 14 SPDMT Gear Box Seal
•  91258-M9Q-0000

NOTE:  Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive
