F 07 Floor Panel / Center Cover - Lance Havana 125

F 07 Floor Panel / Center Cover - Lance Havana 125

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***

New Genuine Stock Replacement Parts - Manufactured by SYM Taiwan

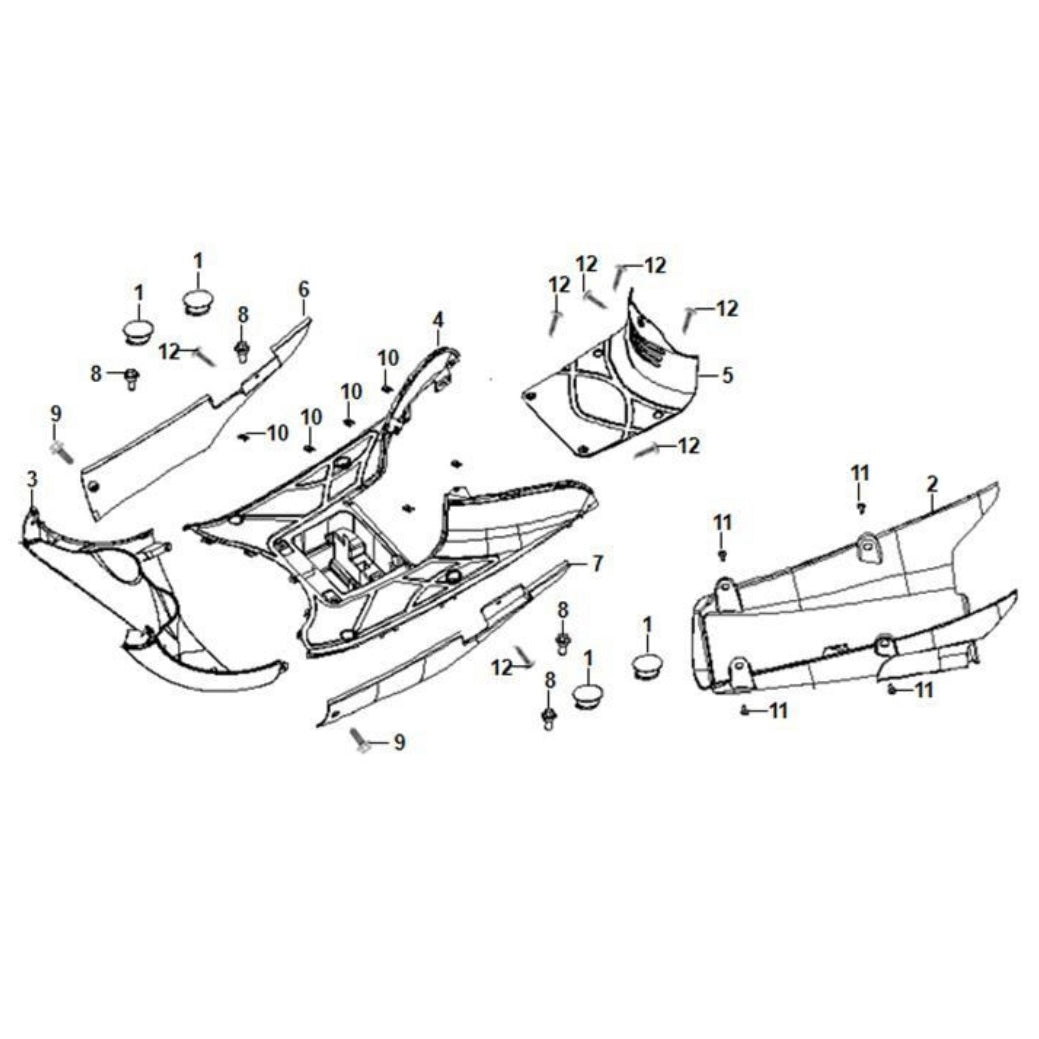

Parts List:

• 01
• 50612-APA-0000 - Floor Board Cap /each

• 02
• 50613-ALA-0000 - Skid Plate / Under Panel

• 03
• 64300-Z4A-0000 - FR Lower Section Panel

• 04
• 64310-A9A-0002 - Step Floor Board

• 05
• 50326-Z4A-0000 - Battery Cover

• 06
• 83520-Z4A-0000 - RH Lower Side Cover

• 07
• 83620-Z4A-0000 - LH Lower Side Cover

• 08
• 90111-AAA-0000 - Flange Bolt 6mm /each

• 09
• 90118-ALA-00000 - Washer Bolt 5*14 /each

• 10
• 90302-SA4-9000 - Spring Nut 4mm / each

• 11
• 93404-06016-04 - Washer Bolt 6*16 / each

• 12
•  93903-35340 - Tapping Screw 5x16 / each
