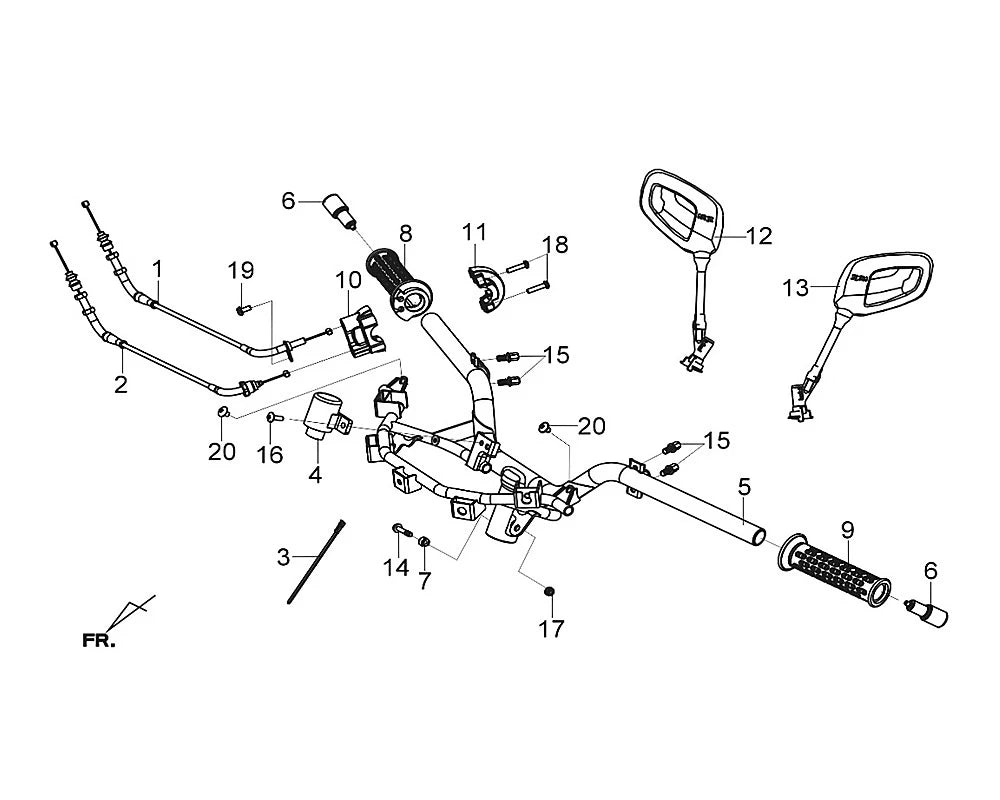

F 05 HANDLE & MIRROR for SYM Citycom S 300i Gas Scooter

F 05 HANDLE & MIRROR for SYM Citycom S 300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

OEM Parts:

• 01 Throttle Cable A
• 17910-LHD-000

• 02 Throttle Cable B
• 117920-LHD-000

• 03 Wire Band 200x8
• 32160-A3A-900

• 04 Winker Relay Complete
• 38301-RFA-000-E6

• 05 Handle Strg. Complete
• 53100-LEA-000

• 06 Handle Pipe Weight Assembly
• 53104-N02-000

• 07 Handle Set Collar
• 53125-M9Q-000

• 08 Throttle Grip Complete
• 53140-HMA-900

• 09 Left Handle Grip BK-004U
• 53166-H85-000

• 10 Throttle Und. Housing
• 53167-LEA-000

• 11 Throttle Upper Housing
• 53168-LEA-000

• 12 Rh. Back Mirror Assembly
• 88110-LEA-000

• 13 Lh. Back Mirror Assembly
• 88120-LEA-000

• 14 Flange Bolt 10x50
• 90106-M9Q-000

• 15 Special Screw 6*12
• 90110-T53-000

• 16 Screw Washer 5x18
• 90119-HMA-000


• 17 Nut U Flange 10mm
• 90304-M9Q-000

• 18 Pan Screw 5*25
• 93500-05025-0G

• 19 Washer Screw 5x12
• 93891-05012-07

• 20 Tapping Screw 5x12
• 93903-25280

NOTE:  Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
