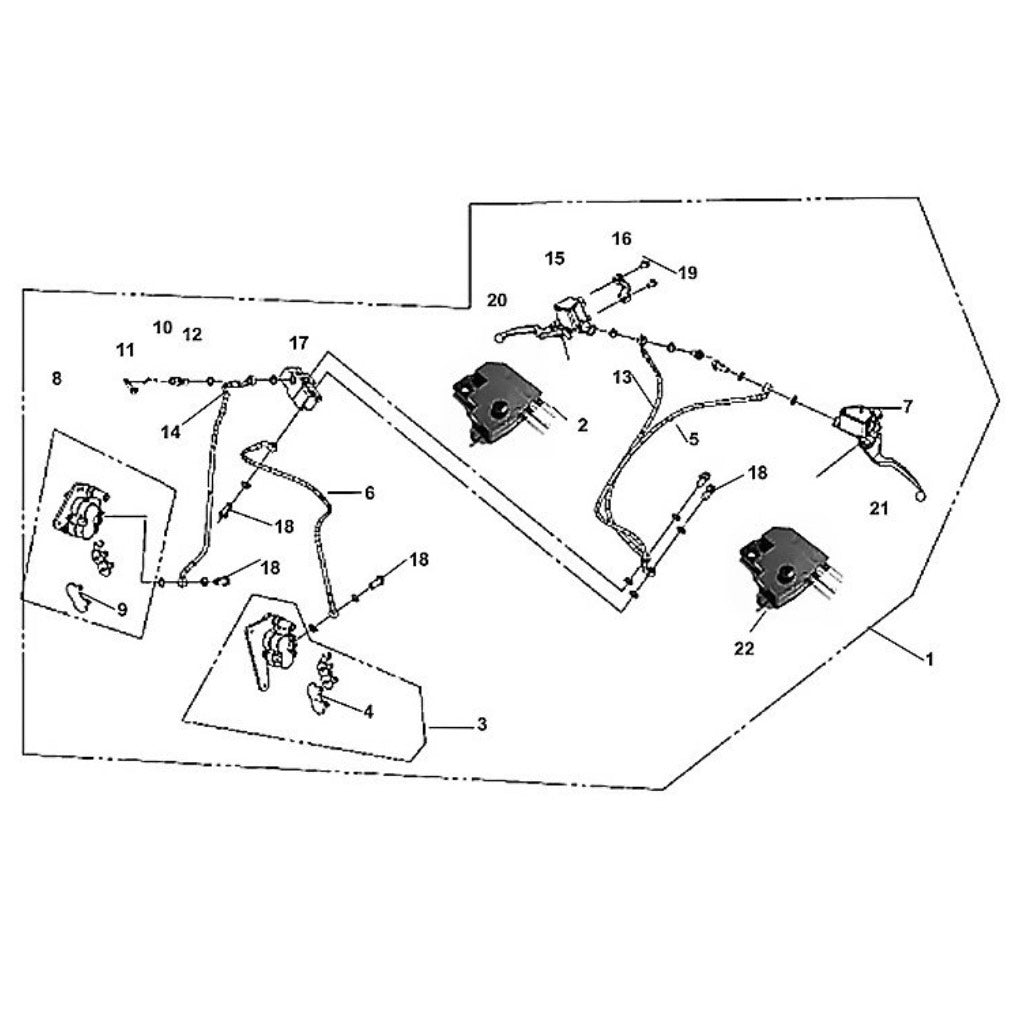

F 04 - CBS Brake System - Lance Cabo 200i Diagram

01 - Brake System Assembly
4500A-AE4-0002-cabo200i

02 - Front Stop Switch Assembly
35340-XDE-0000-cabo200i

03 - Rear Brake Caliper Assembly
43100-XJA-0001-K-cabo200i

04 - Rear Brake Pad Set (A/B)
4310C-ARB-0000-cabo200i

05 - Rear Brake Hose A Comp
43124-AE4-0000-cabo200i

06 - Rear Brake Hose B Comp
43125-AE4-0001-cabo200i

07 - Rear Master Cylinder Assembly
43500-AE1-0000-cabo200i

08 - Front Brake Caliper Assembly (Red)
45100-ATA-000R-cabo200i

09 - Front Brake Pad Set
45105-AJF-0001-cabo200i

10 - Bleeder Screw
45109-L4A-3000-cabo200i

11 - Bleeder Cap
45110-L4A-3000-cabo200i

12 - T-fuel Pipe Joint Assembly
4511A-LEF-0000-cabo200i

13 - Front Brake Hose A Comp
45124-AE4-0000-cabo200i

14 - Front Brake Hose B Comp
45125-AE4-0000-cabo200i

15 - Front Master Cylinder Assembly
45500-AE1-0000-cabo200i

16 - Master Cylinder Holder
45517-N3G-A000-cabo200i

17 - CBS Control Valve Assembly
46300-LEA-0000-cabo200i

18 - Oil Bolt 10*22
90145-M9Q-0000-cabo200i

19 - Flange Bolt 6*22
95801-06022-07-cabo200i

20 - Rear Lever STRG. Handle
53170-AWU-0000-cabo200i

21 - Left STRG. Handle Lever
53178-AE1-0002-cabo200i

22 - Rear Stop Switch Assembly
35340-ARB-0000-cabo200i
