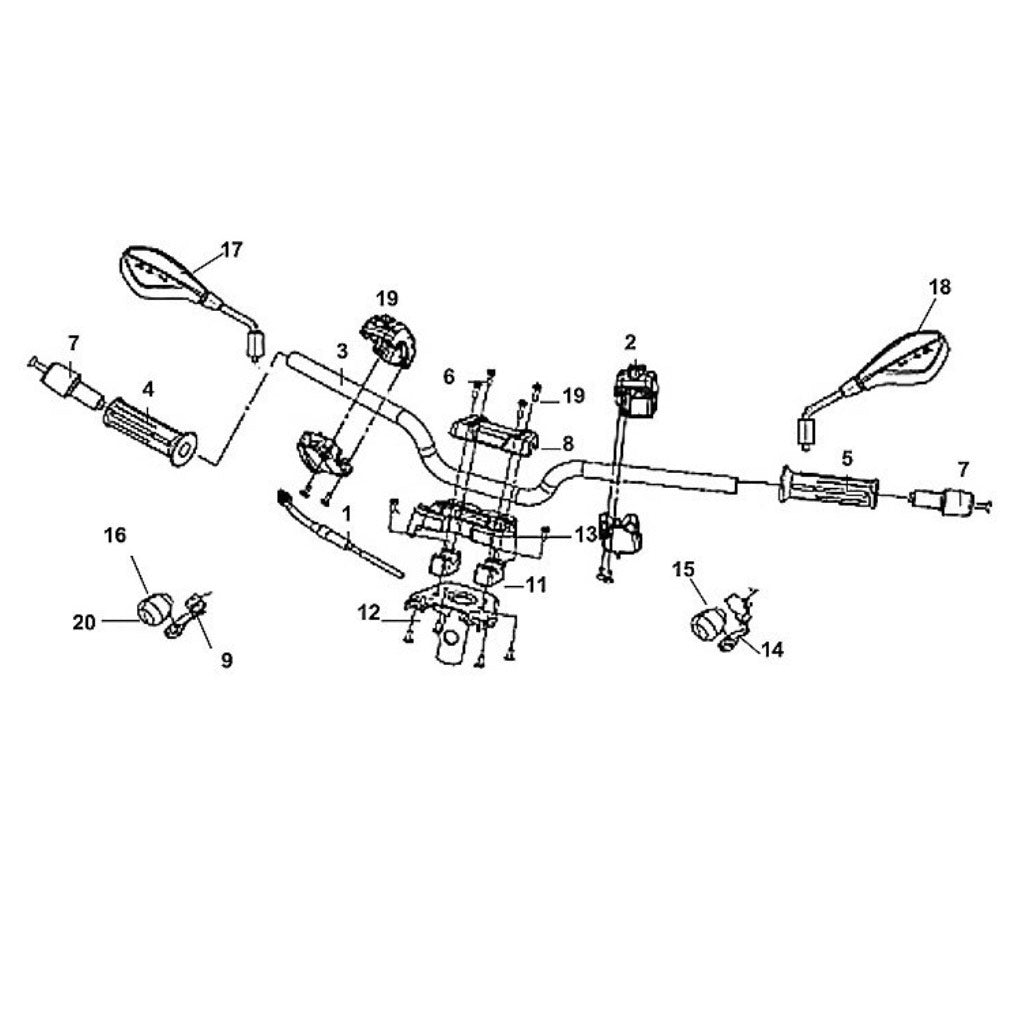

F 03 Cable / Switch / Lever - Lance Cabo 200i Diagram

01 - Throat Cable Comp
17910-AE6-0000-cabo200i

02 - Left Handle Switch Unit
35200-AE4-0000-cabo200i

03 - Left STRG. Handle
53100-AWU-0001-cabo200i

04 - Right Handle Grip
53140-N7K-0001-cabo200i

05 - Left Handle Grip
53166-N7K-0001-cabo200i

06 - Socket Bolt 6*25
96700-06025-49-cabo200i

07 - Handle Bar End
53104-N5G-0000-cabo200i

08 - Handle Pipe Up Holder
53131-AWU-0000-cabo200i

09 - Front Right Winker Stay
33401-AEP-0000-cabo200i

10 - Left Handle Bracket
53192-T6G-A000-cabo200i

11 - Handle Pipe Down Holder
53132-AWU-0000-cabo200i

12 - Handle Pipe Holder Comp
53231-AWU-0001-cabo200i-2

13 - Front Handle Cover
53205-AWU-0000-cabo200i

14 - Unavailable - Replaced by #29 one piece stay
33451-AEP-0000-cabo200i

15 - Front Left Turn Signal / Winker
33450-AKF-0000-cabo200i

16 - Front Right Turn Signal / Winker
33400-AKF-0000-cabo200i

17 - Right Back Mirror
88110-Z8G-0000-cabo200i

18 - Left Back Mirror
88120-Z8G-0000-cabo200i

19 - Right Handle Switch
35150-AE4-9000-cabo200i

20 - L & R Winker Lens
33602-AKF-0000-cabo200i

26 - Right Handle Cover
53208-AWU-0000

27 - Left Handle Cover (Cabo)
53209-AWU-0000

29 - Front Winker Stay - one piece
3340A-AWX-0000-CABO50

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
