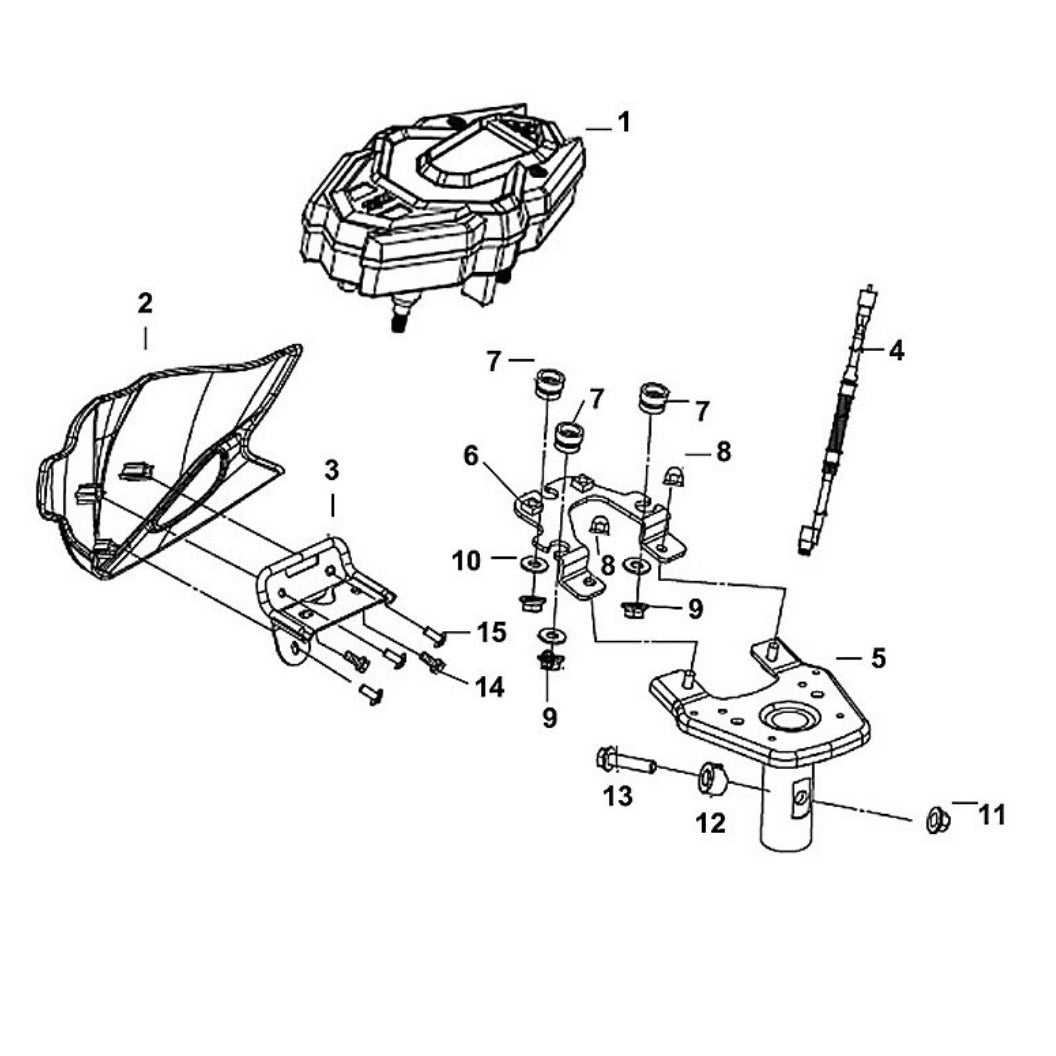

Speedometer Assembly / Dash - Lance Cabo 200i Diagram

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

Parts:

• 01 - Speedometer Assembly
•  37200-AE4-0000

• 02 - Meter Visor A
•  53207-B9A-0003

• 03 - Meter Visor Stay
•  53201-AWU-0000

• 04 - Sensor
•  44830-U43-0000

• 05 - Handle Pipe Holder COMP
•  53231-AWU-0001

• 06 - Meter Stay
•  37212-AJF-0001

• 07 - Meter Cushion Rubber
•  37001-N3G-A000

• 08 - Open Stay Nut 6mm
•  90301-M9Q-9000

• 09 - Tapping Screw 5x12 (each)
•  93903-35240

• 10 - Plain Washer 6mm
•  94101-06400

• 11 - Flange. U Nut 10mm (Green)
•  90304-AAA-0000

• 12 - Steering Stem Lock Collar
•  53125-CT1C-A000
• 13 - Flange Bolt 10*50 (Green)
•  90106-AAA-0000
• 14 - Flange Bolt 6X12
•  95801-06012-04
• 15 - Tapping Screw 5X12
•  93903-35240

OTHER PART OPTION:

Long Version Turn Signal Stay Bracket (goes across, not pictured) -

3340A-AWX-0000

Note: Electrical parts are non-returnable. Please compare photos and part numbers for quality and fitment. It is always recommended to consult with a professional mechanic for repairs.
