E 16 OIL PUMP ASSEMBLY for SYM Citycom S300i Gas Scooter

OIL PUMP ASSEMBLY for SYM Citycom S300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

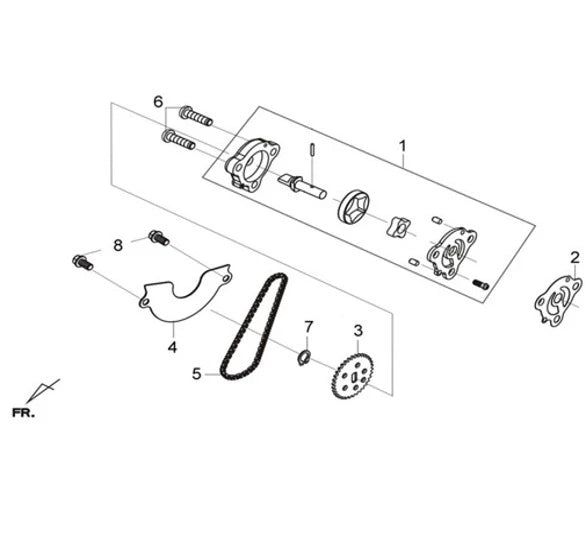

OEM Parts:

• 01 Oil Pump Assembly
• 15100-HMA-000

• 02 Oil Pump Gasket
• 15126-B8A-000

• 03 Oil Pump Driven Sprocket
• 15133-HMA-000

• 04 Oil Separater
• 15711-HML-000

• 05 Oil Pump Chain 92RH 2005-48
• 1C15141-HMA-000

• 06 Pan Screw
• 93500-06025-0H

• 07 Cir Clip 10mm
• 94510-10000

• 08 Flange Bolt SH 6X12
• 96001-06012-08

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
