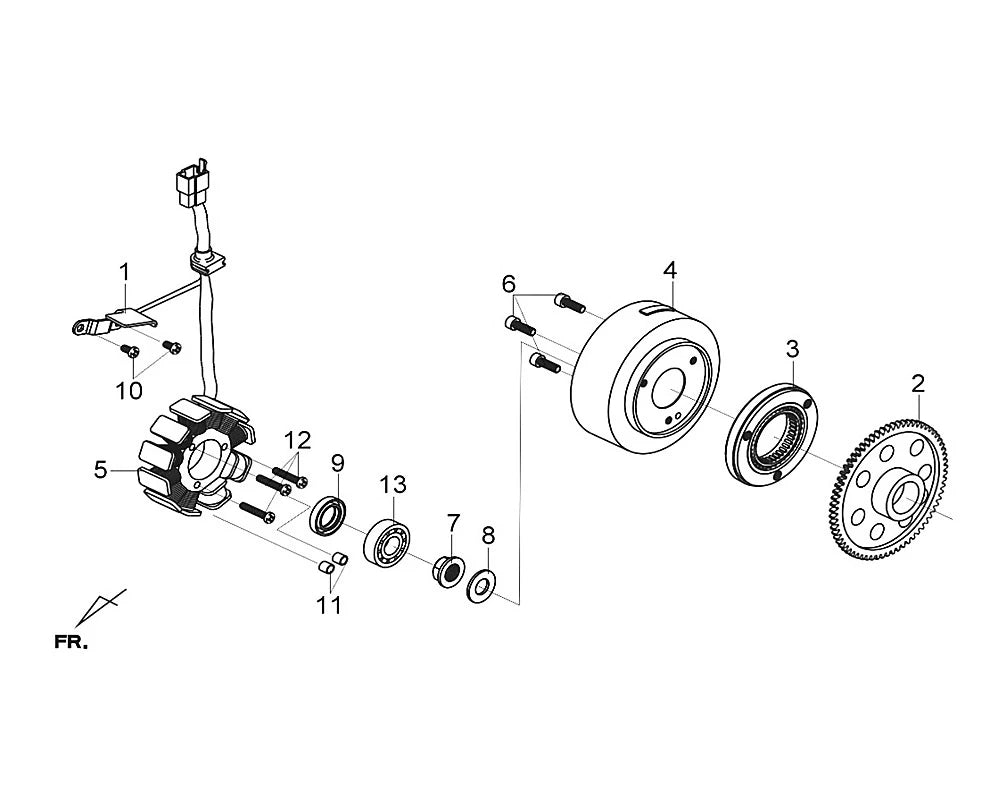

E 15 FLYWHEEL & STATOR for SYM Citycom S300i Gas Scooter

FLYWHEEL & STATOR for SYM Citycom S300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

OEM Parts:

• 01 Oil Baffle Plate 6x32
• 15713-HMC-010

• 02 Starting Clutch Gear Complete
• 28110-HMA-000

• 03 One Way Clutch Assembly
• 2812A-L3A-000

• 04 Flywheel Complete
• 31110-L3A-000

• 05 Stator Complete
• 31120-L3A-100

• 06 Socket Bolt 8x20
• 90157-F3G-000

• 07 Flange Nut 14mm
• 90201-KR8-751-M1

• 08 Thrust Washer 14x28x2
• 90401-KJ9-000

• 09 Oil Seal
• 91202-HMA-000

• 10 Pan Screw 5x16
• 93500-05016-0A


• 11 Dowel Pin 8x14
• 94301-08140

• 12 Flange Bolt SH 6X30
• 96001-06030-00


• 13 Radial Ball Brg. 6201 LUC3
• 96140-62013-10

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***

***NOTE: There are no returns on electrical parts. Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.***
