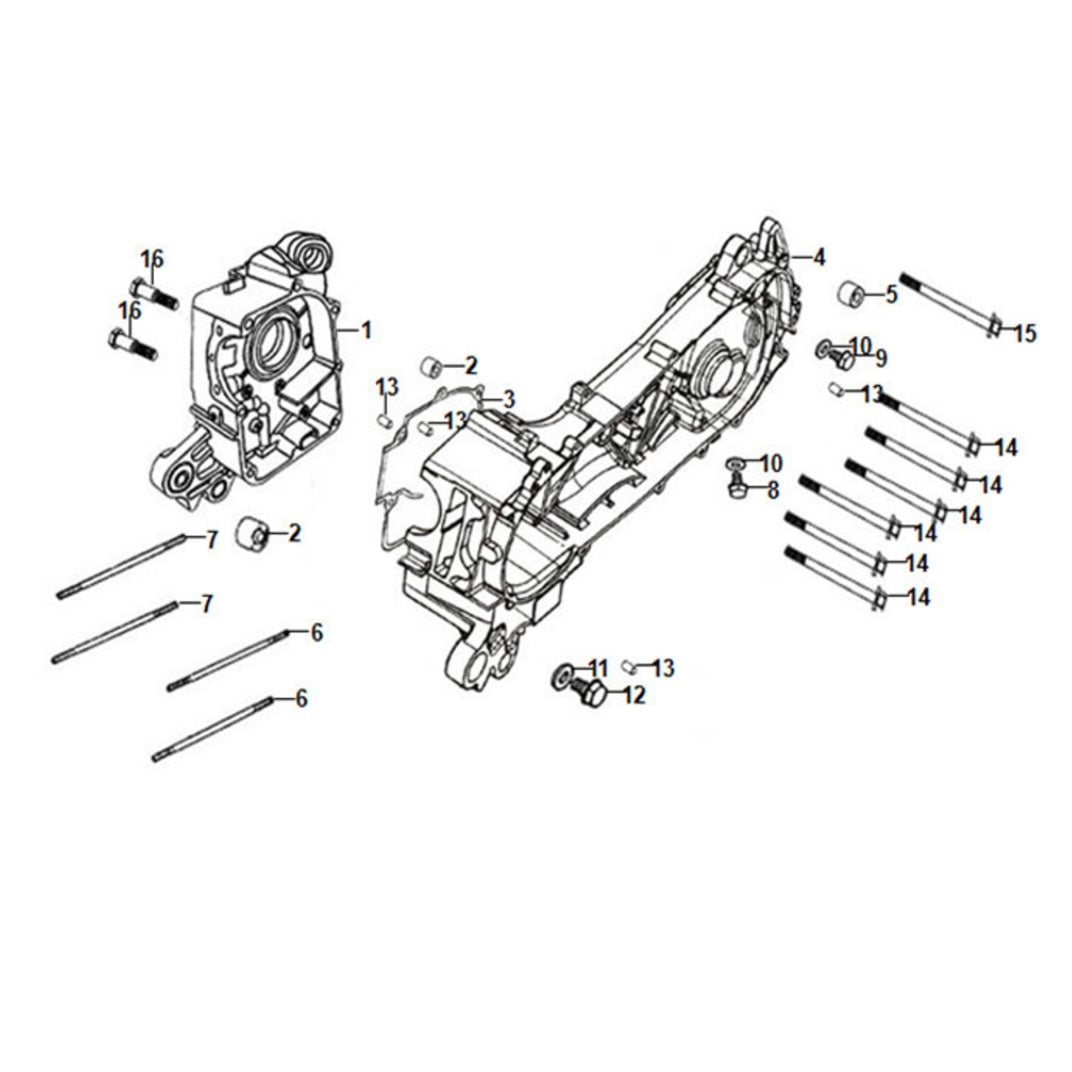

E 15 Crank Case for Lance Cali Classic 125cc

Parts:

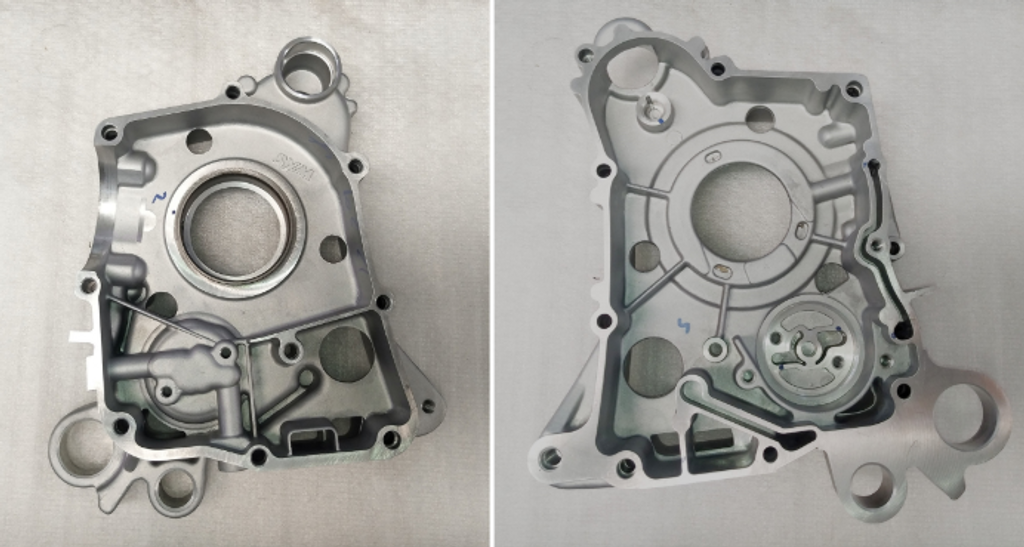

01 R. Crank Case Comp
11100-ABA-0004-cali125

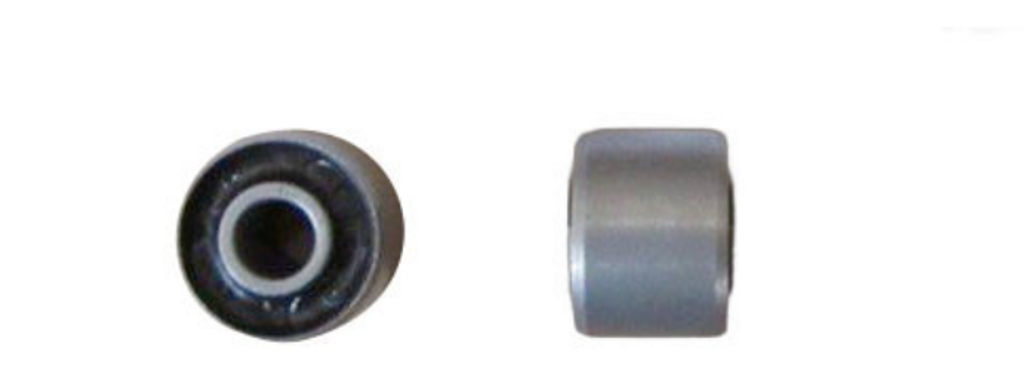

02 Engine Hanger Rubber Bush
11102-M9Q-3000-cali125

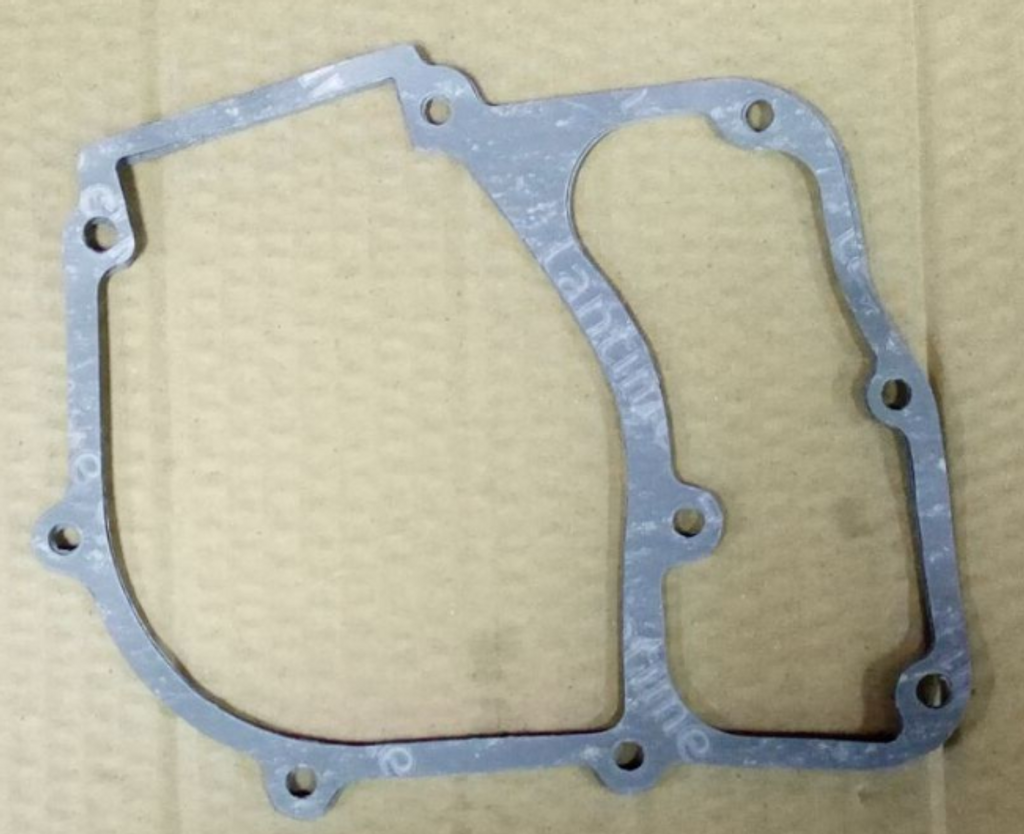

03 Crank Case Gasket
11192-Z8G-0000-cali125

04 L. Crank Case Gasket Comp
11200-Z4A-0002-cali125

05 RR. Cushion Under Rubber
11203-AFA-0000-cali125

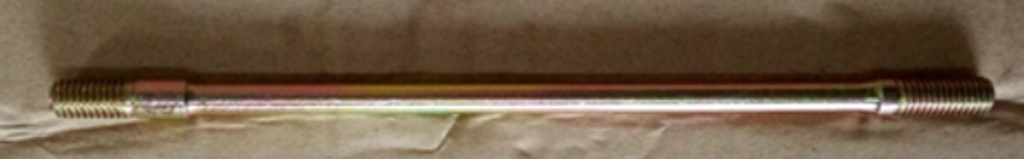

06 Stud Bolt 8x187.59
90031-GY6-9000-cali125

07 Stud Bolt 8x195.5
90032-GY6-9000-cali125

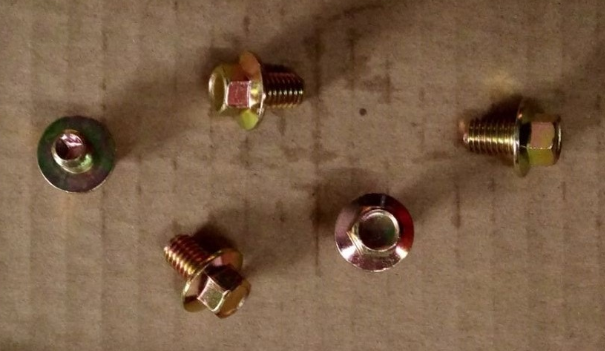

08 Special Bolt 8mm
90103-KN8-000A-cali125

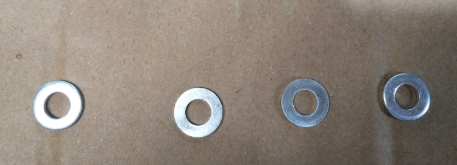

09 Washer 8mm
90105-H68-0000-CALI125

10
90474-333-0000-CALI125

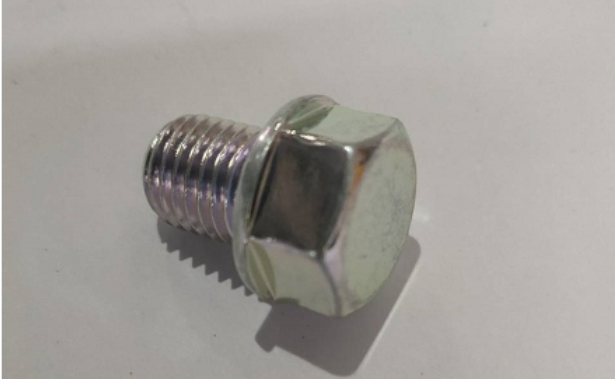

11 Drain Plug Bolt 12mm
92800-12000-cali125

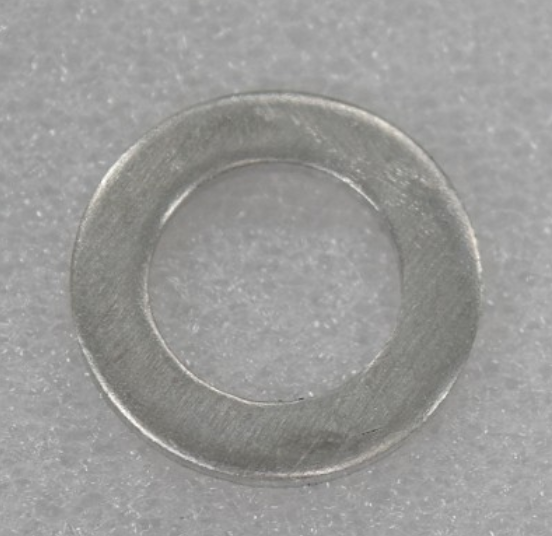

12 Drain Plug Washer 12mm
94109-12000-cali125-2

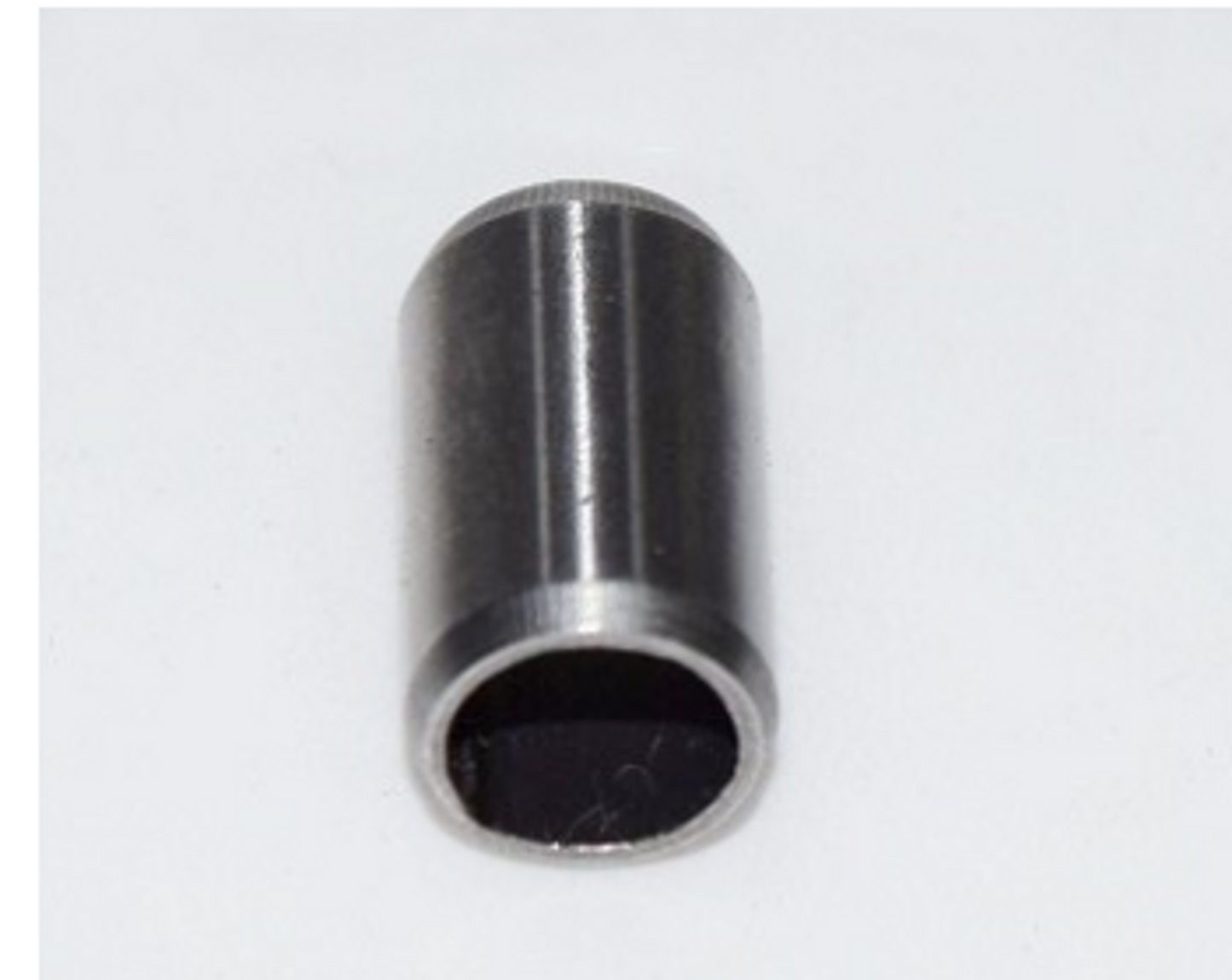

13 Dowel Pin
94301-08140-0-CALI125

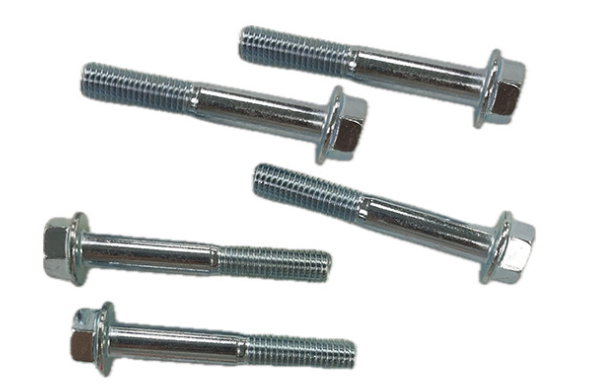

14 Flange bolt 8x55
95701-08055-00-CALI125

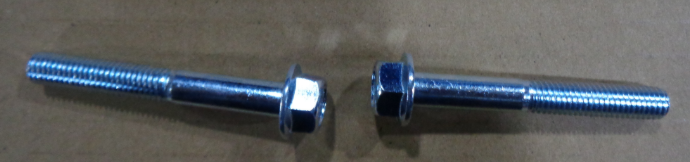

15 Flange Bolt 8x60
95701-08060-00-CALI125

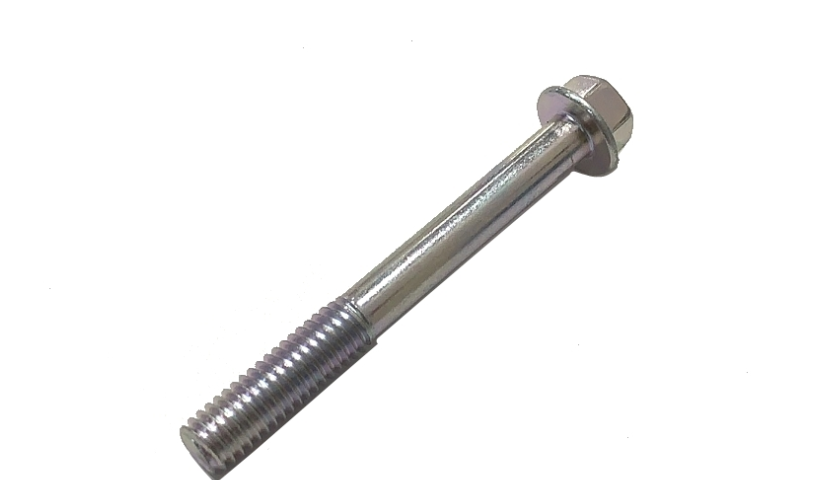

16 Flange Bolt 6x50
96001-06050-080-cali125

NOTE: Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
