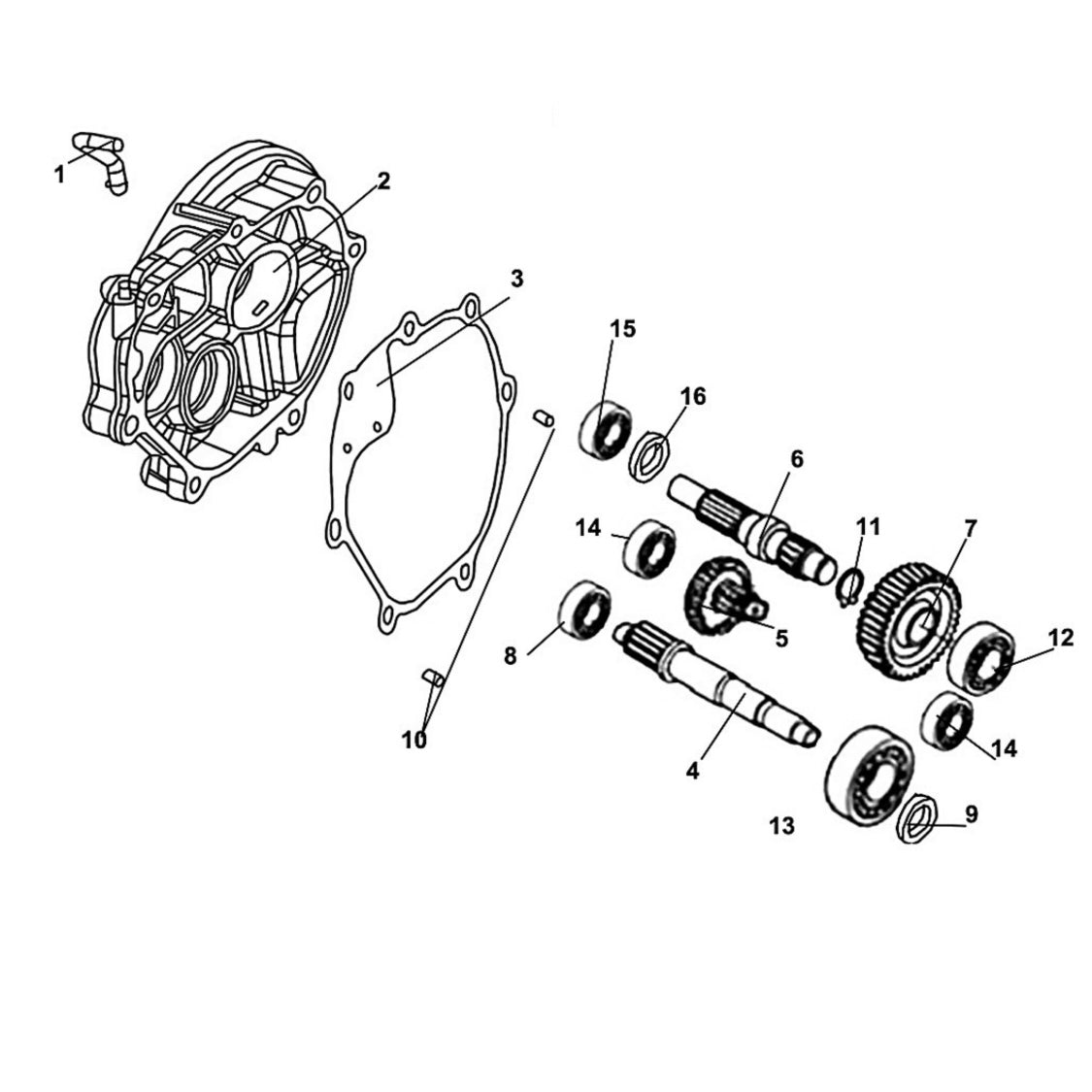

E 14 Transmission for Lance Cali Classic 125cc

Parts:

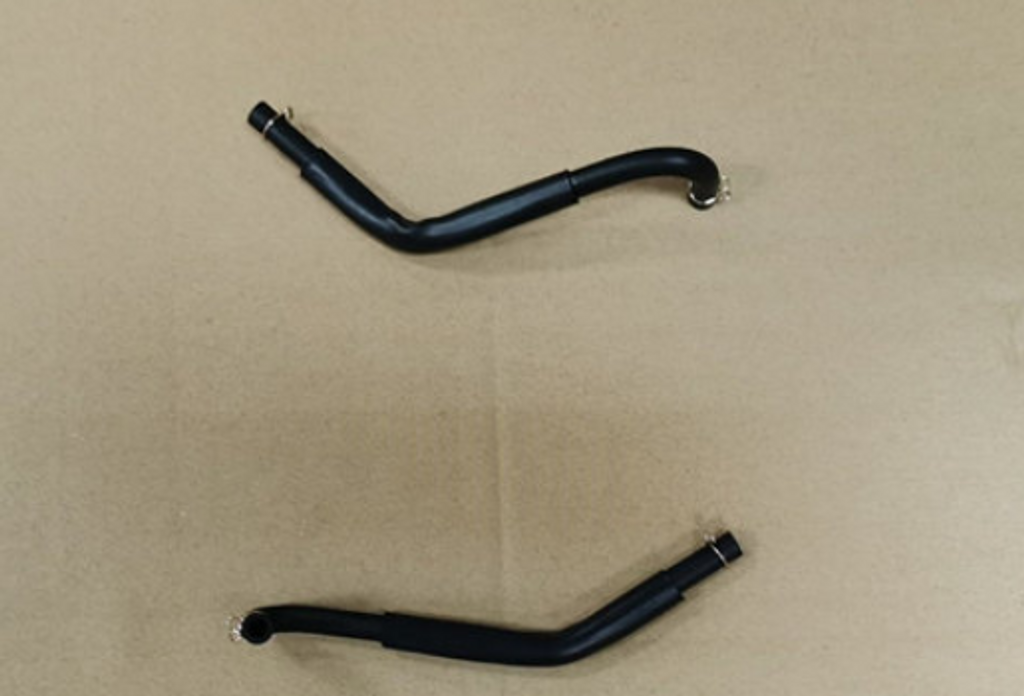

01 Mission Breather Tube
11221-ABA-0000-cali125

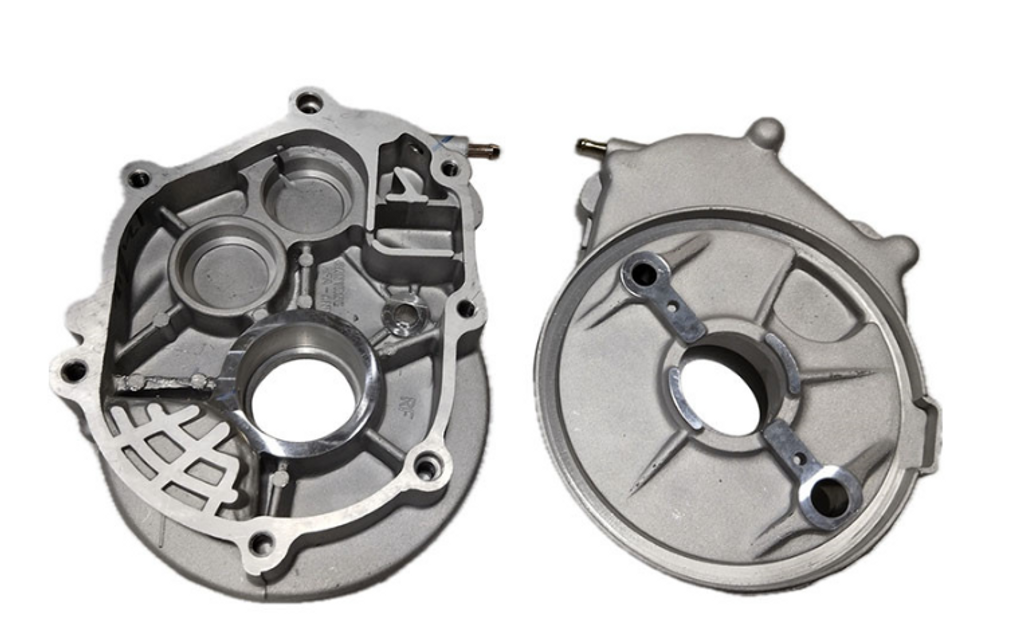

02 Mission Case Complete
21200-AFA-0001-cali125

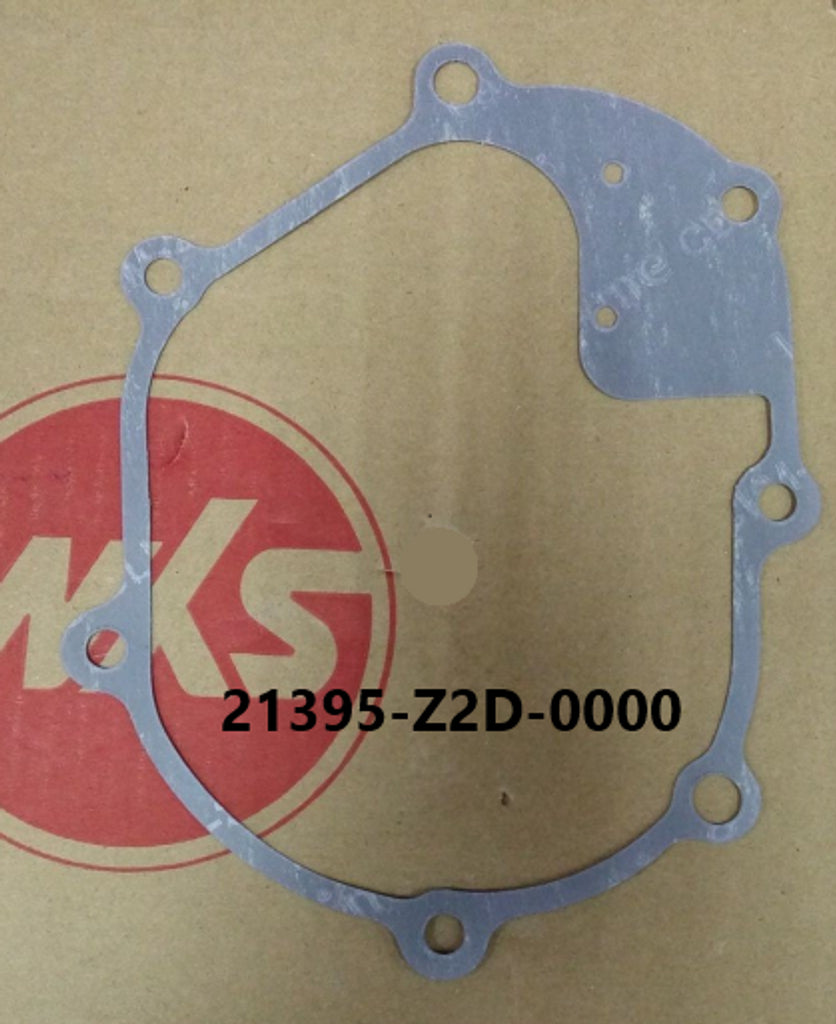

03 Mission Case Gasket
21395-Z2D-0000-cali125

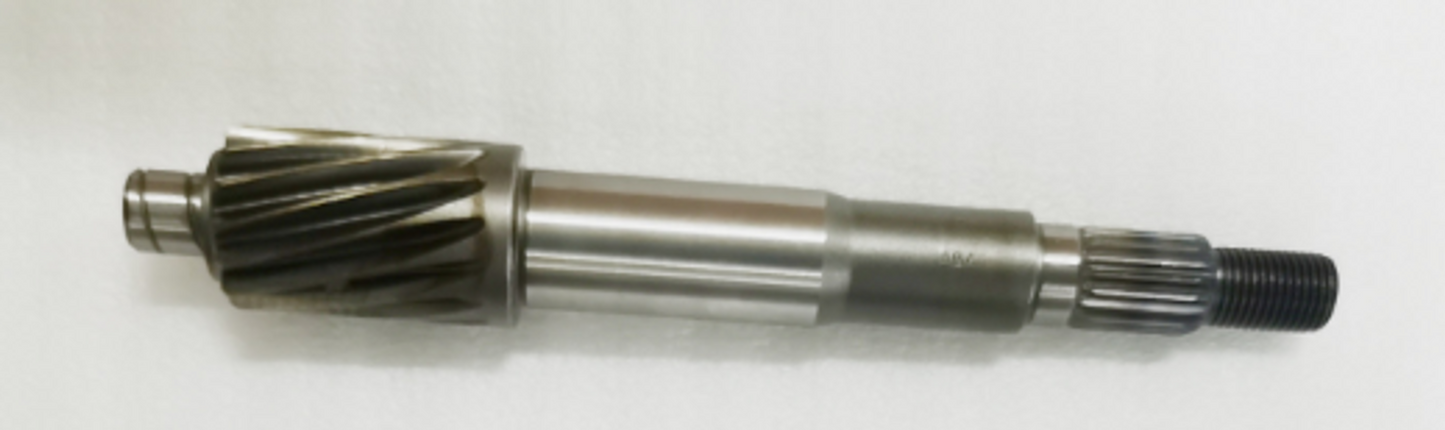

04 Drive Shaft
23411-ABA-0001-cali125

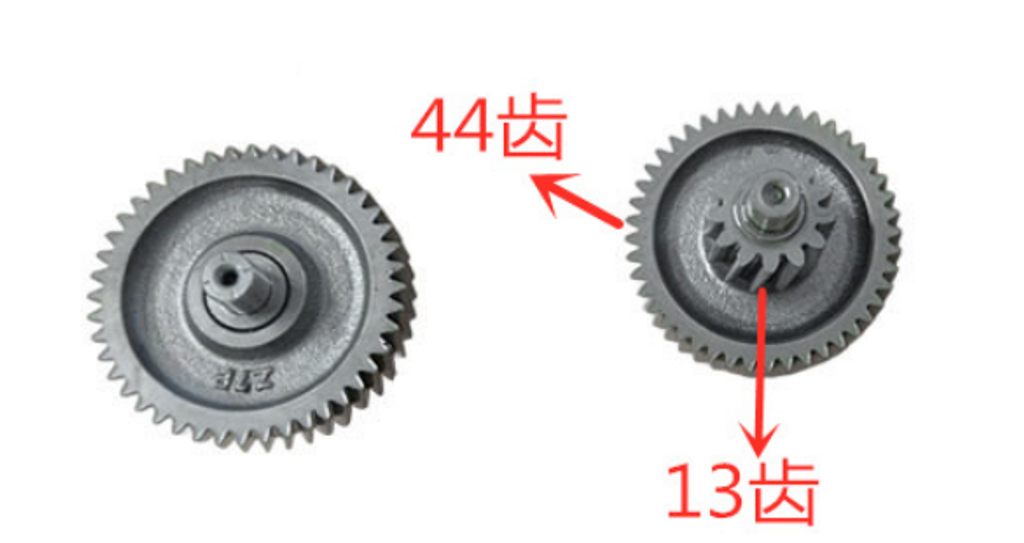

05 Counter Shaft Complete
23420-Z7P-0100-M2-cali125

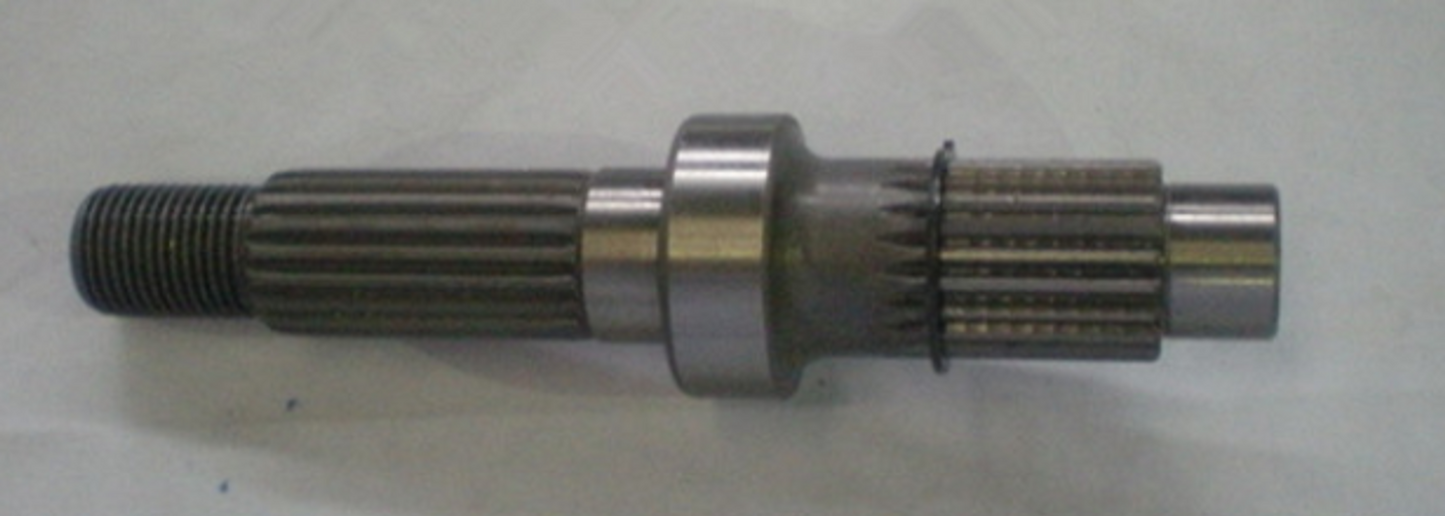

06 Final Shaft
23431-ABA-0000-cali125

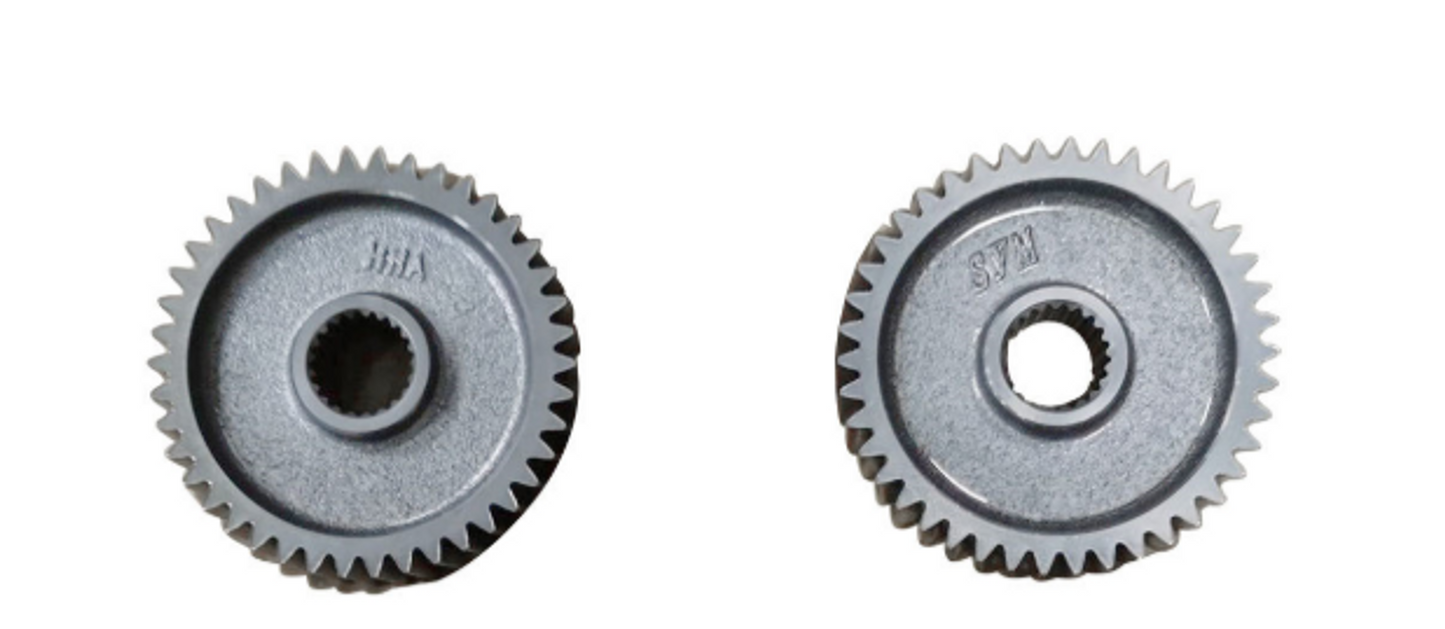

07 Final Gear
23432-HHA-0100-cali125

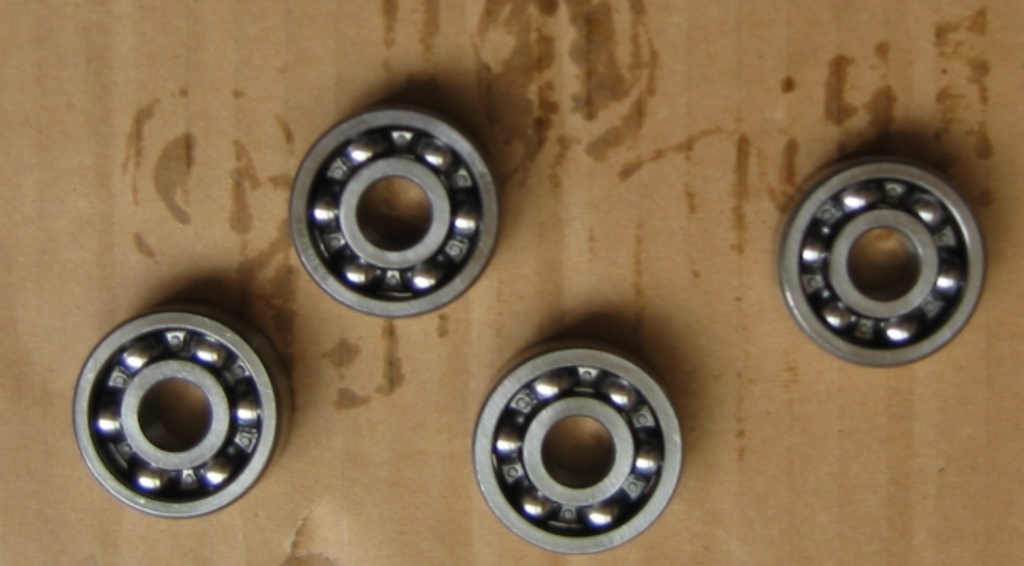

08 Radial Ball Bearing
96100-63013-00-cali125

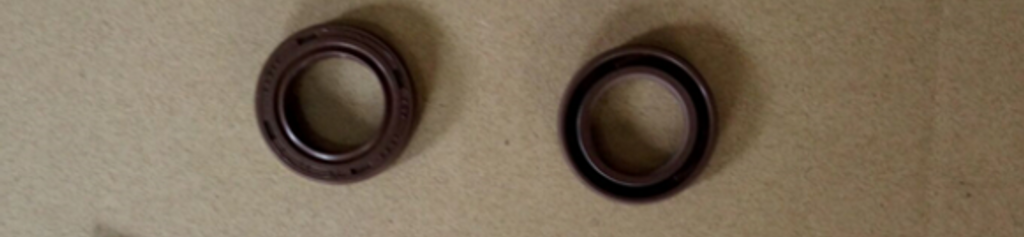

09 Oil Seal 20x32x6
91202-KJ9-0030-M1-cali125

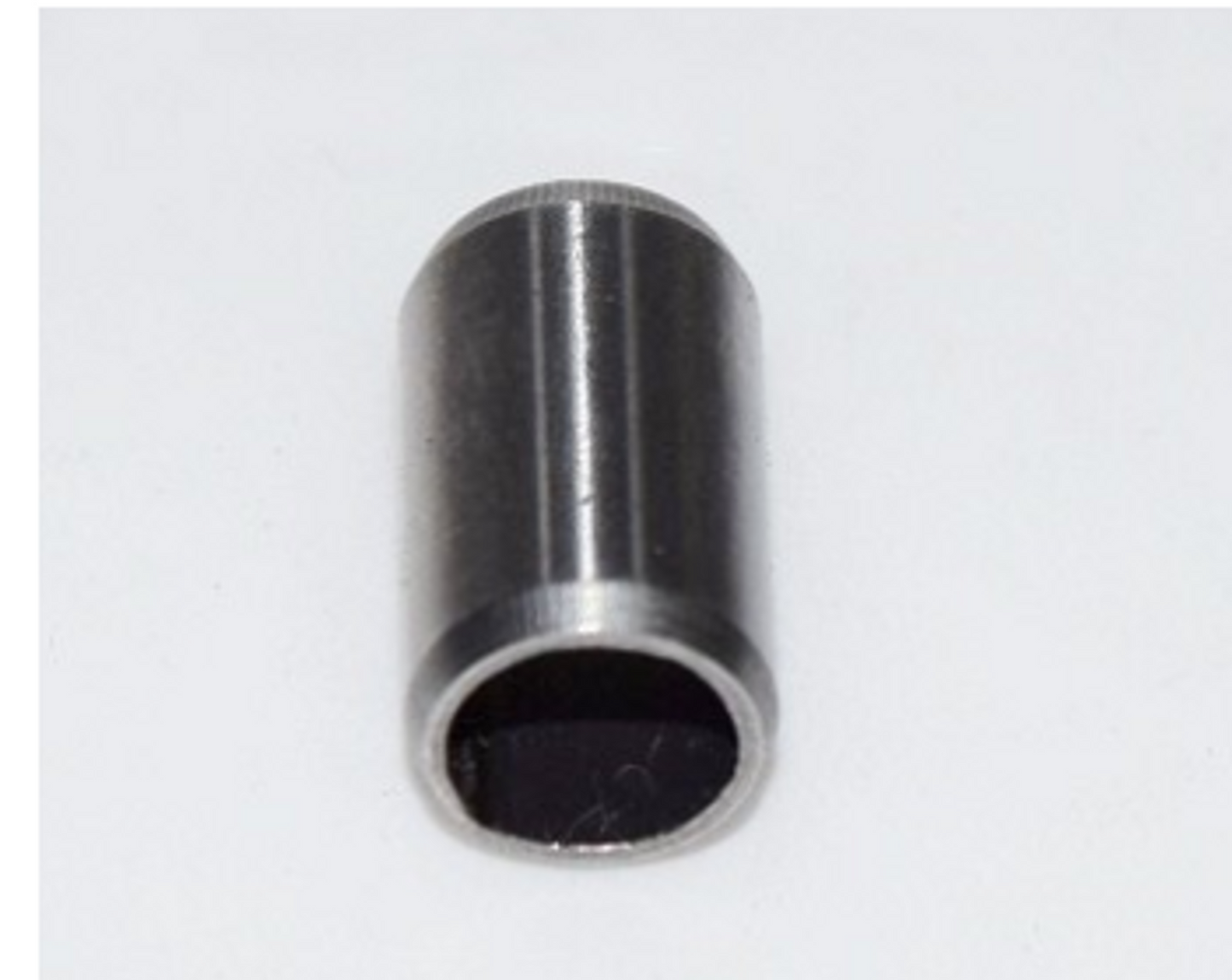

10 Dowel Pin 10x14
94301-08140-cali125-3

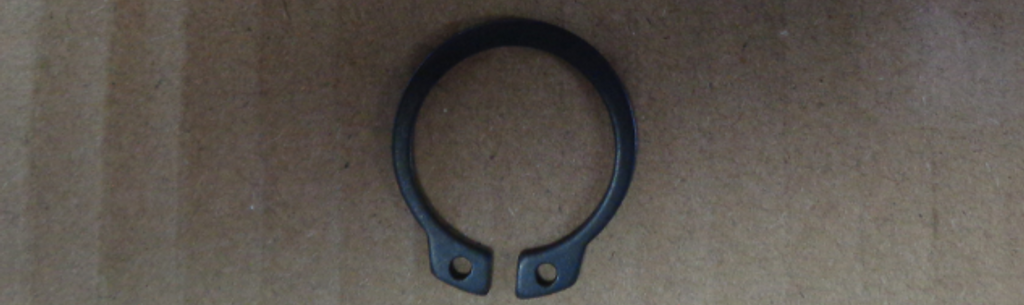

11 EX. Circle Clip 20mm
94510-22000-cali125

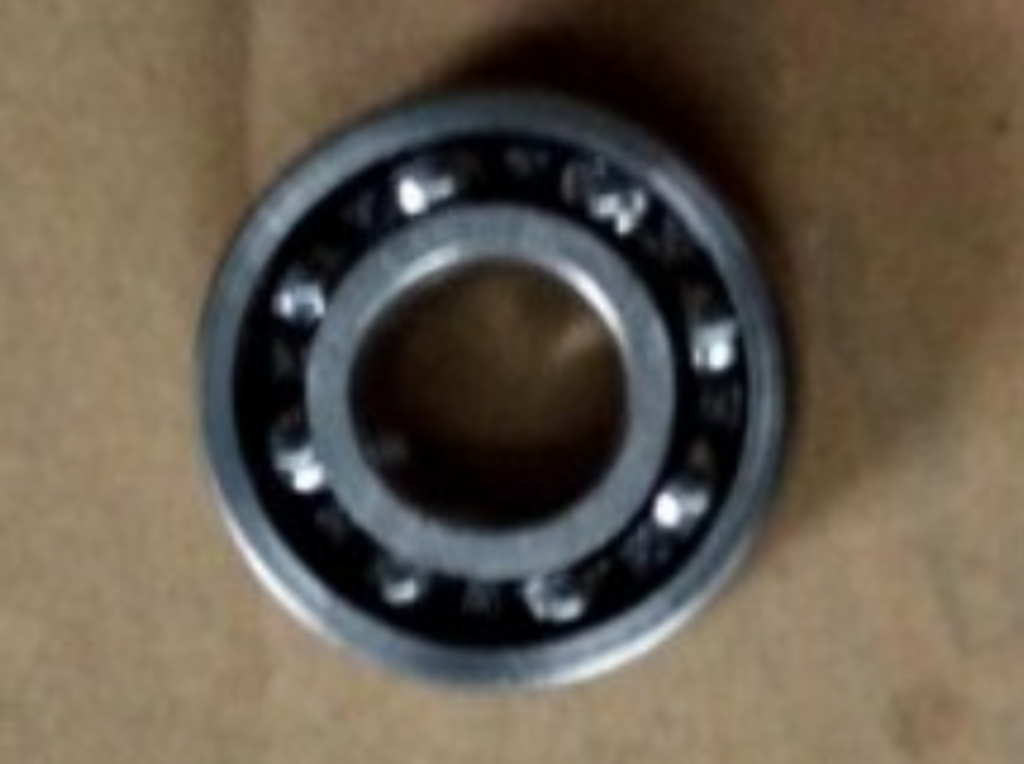

12 Radial Ball Bearing
96100-62030-00-cali125

13 Radial Ball Bearing 204
96100-62043-00-cali125

14 Radial Ball Bearing
96100-63013-00-cali125-2

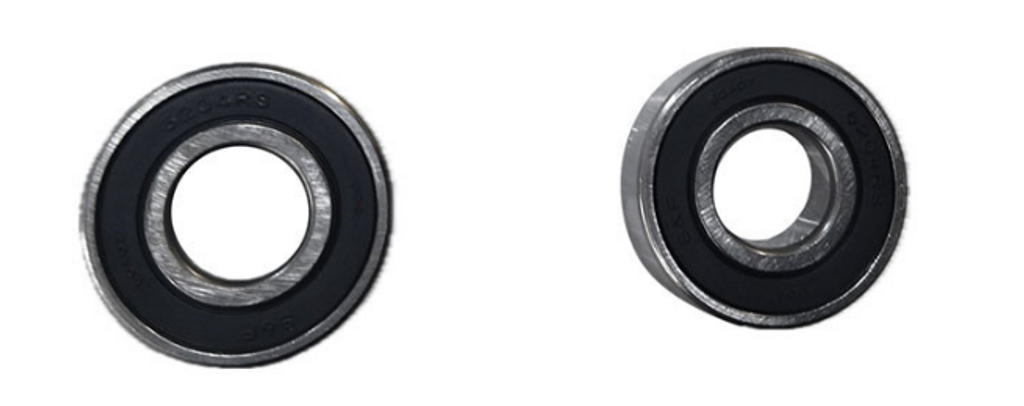

15 Radial Ball Bearing
96150-62043-10-cali125

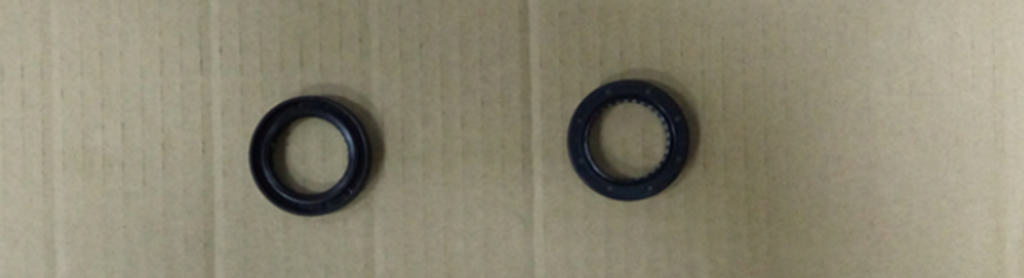

16 Oil Seal 32x47x7
91201-HHA-3001-cali125

NOTE: Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
