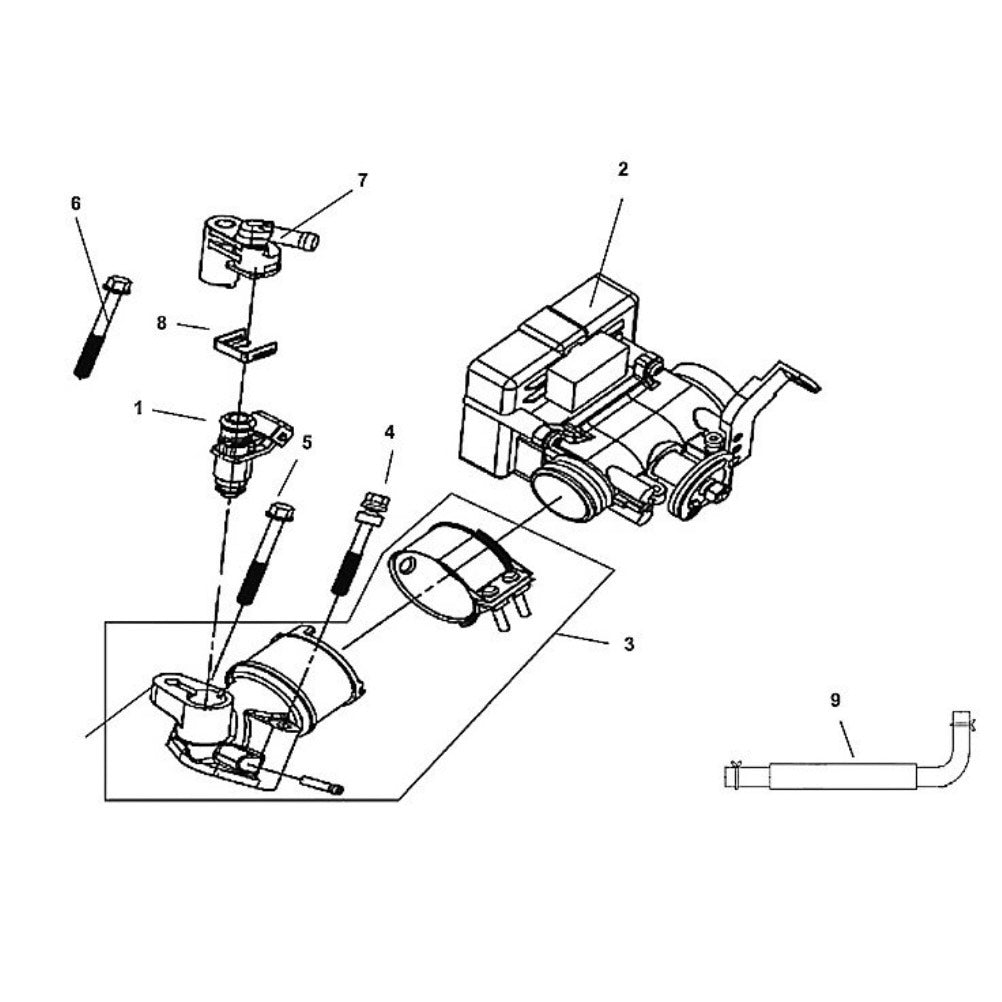

E 14 - ECU Set / Fuel Injector / Throttle Body - Lance Cabo 200i Diagram

E 14 - ECU Set / Fuel Injector / Throttle Body - Lance Cabo 200i Diagram

• 01 - Fuel Injector
•  06414-HKK-0001-cabo200i

• 02 - ECU Set
•  1640A-AE4-0002-cabo200i

• 03 - Inlet Pipe Assembly
•  1711A-Z5C-0104-cabo200i

• 04 - Self-locking Bolt 6*50
•  90083-B12-0000-0-cabo200i

• 05 - SH. Flange Bolt 6*20
•  96001-06050-08-cabo200i

• 06 SH. Flange Bolt 6*45
•  96001-06045-00-cabo200i

• 07 - Fuel Injector Cap Assembly
•  17120-XJA-0000-cabo200i

• 08 - Fuel Injector Cap Clip
•  17121-H6Y-0002-cabo200i

• 09 - Cani Tube
•  17685-ZDA-0002-cabo200i

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
