E 13 MISSION CASE COMPLETE for SYM Ctiycom S 300i Gas Scooter

MISSION CASE COMPLETE for SYM Ctiycom S 300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

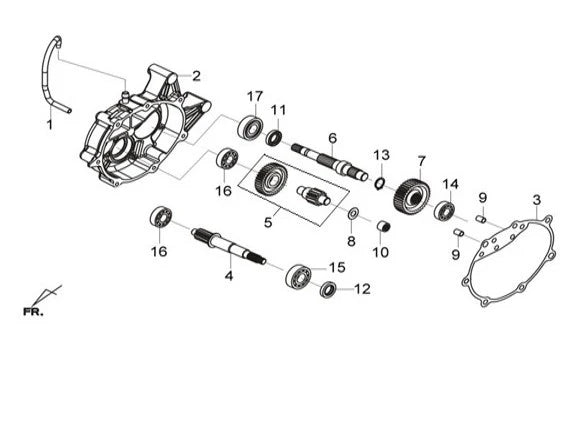

OEM Parts:

• 01 Mission Breather Tube Assembly
• 1122A-LEA-000

• 02 Mission Case Complete
• 21200-LHA-000

• 03 Mission Case Gasket
• 21395-LHA-000

• 04 Drive Shaft (13t)
• 23411-LHA-000

• 05 Counter Shaft Complete
• 23420-LHA-000

• 06 Final Shaft
• 23431-LEA-020

• 07 Final Gear (38t)
• 23432-LHA-000

• 08 Thrust Washer 15mm
• 90401-HMA-000

• 09 Dowel Pin 10x14
• 90703-M8Q-000

• 10 Needle Brg. Nk 15*23*16
• 91002-HWA-000-M1

• 11 Oil Seal Tc32*52*7
• 91203-LEA-000

• 12 Oil Seal
• 91204-HMA-000

• 13 Ex. Cir Clip 25mm
• 94510-25000

• 14 Radial Ball Brg. 6204
• 96100-62040-10

• 15 Radial Ball Brg. 6205 C3
• 96100-62053-10

• 16 Rad. Ball Brg. 6302
• 96100-63020-00

• 17 Radial Ball Brg. 6205 LLU
• 96150-62050-10

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
