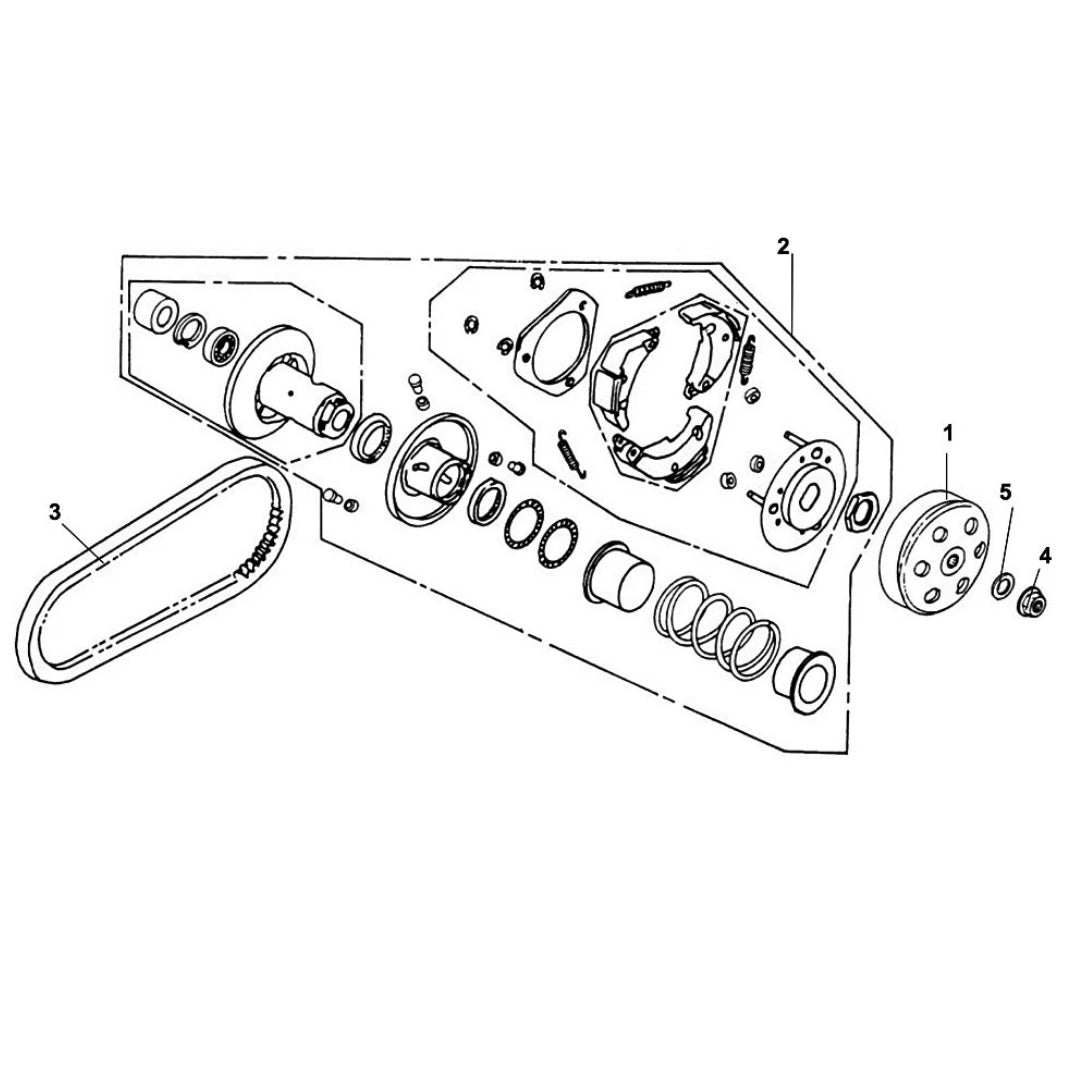

E 13 Driven Pulley Diagram for Lance Havana 125cc Gas Scooter

Driven Pulley Diagram for Lance Havana 125cc Gas Scooter

Parts:

01. 22101-ABA-0000 - Clutch Hub - $61
02. 23010-ABA-0000 - Driven Pulley - $217
03. 23100-KC1-0000 - Drive Belt 799.19.28 - $89
04. 94050-12080 - Flange Nut 10mm - $2
05. 90440-166-0000 - Washer - $2

***We do not have live stock updates on diagram parts - please note that select parts may be out of stock. If you do not want to risk your parts being placed on backorder, visit the Contact page to check availability. Select parts may take a few weeks to arrive.***

Questions about parts & compatibility? Visit the Contact page.
