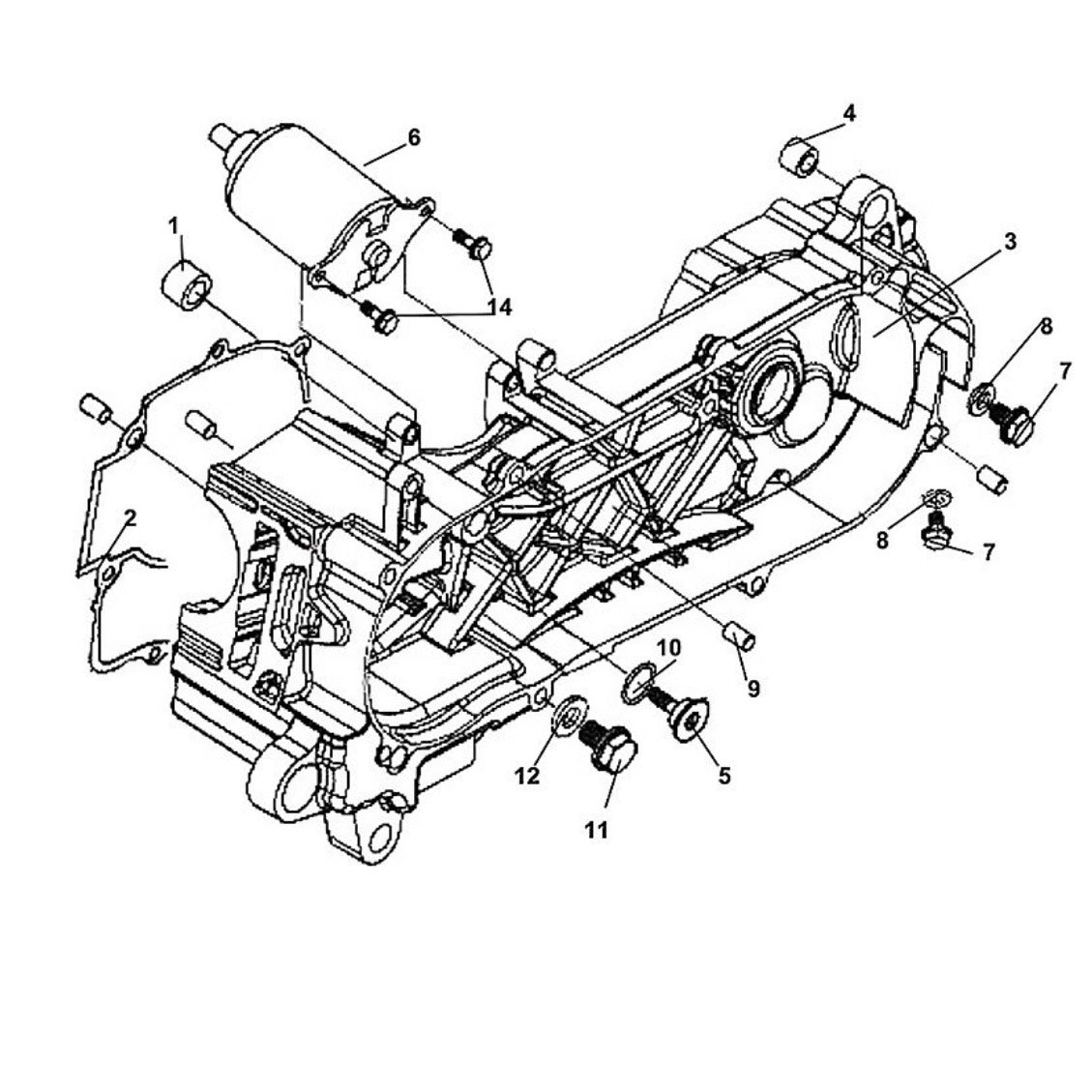

E 12 Left Crank Case - Lance Cabo 200i Diagram

01 - ENG. Hanger Rubber Bush
11102-M9Q-3000-cabo200i-2

02 - R. Crank Case Gasket
11192-XRB-0000-cabo200i

03 - L. Crank Case Comp
11200-ANA-0100-cabo200i

04 - RR. CUSH. UN. Rubber Bush
11203-AFA-0000-cabo200i

05 - Cam Chain Tensioner Pivot
14531-M9Q-0000-cabo200i

06 - Start Motor Assy
31200-F6C-0000-cabo200i

07 - Special Bolt 8MM
95801-08070-07-cabo200i

08 - Washer 8MM
90474-333-0000-cabo200i

09 - Dowel pin 10*14
90703-M8Q-0003-cabo200i-3

10 - O-ring 15.2*1.5
91301-GR0-0030-cabo200i

11 - Drain Plug Bolt 12mm
92800-12000-cabo200i

12 - Drain Plug Washer 12mm
94109-12000-cabo200i
