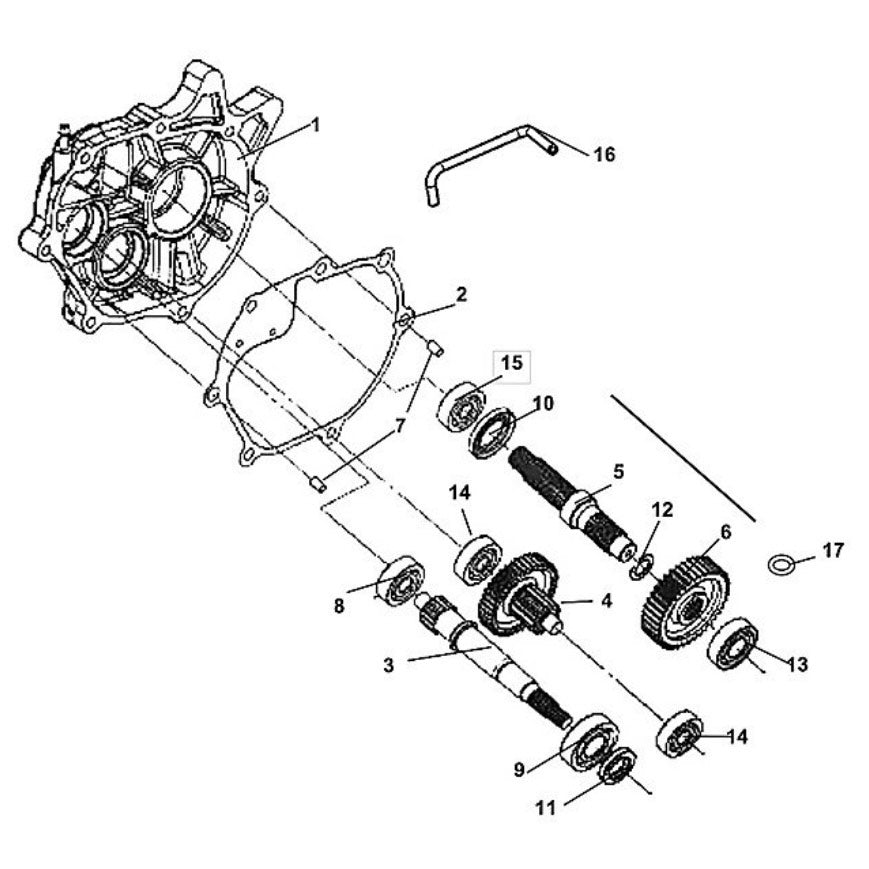

E 11 Mission Case & Drive Shaft - Lance Cabo 200i Diagram

E 11 Mission Case & Drive Shaft - Lance Cabo 200i Diagram

• 01
• Mission Case COMP - 21200-A6A-0003-cabo200i

• 02
• Mission Cover Gasket - 21395-Z2D-0000-cabo200i

• 03
• Drive Shaft - 23411-ANA-0001-cabo200i

• 04
• Counter Shaft COMP - 23420-XJA-0000-cabo200i

• 05
• Final Shaft - 23431-ANL-0000-cabo200i

• 06
• Final Gear 43T - 23432-XJA-0001-cabo200i

• 07
• Dowel Pin 10*14 - 90703-M8Q-0003-cabo200i-2

• 08
• Radial Ball BRG. CSB301 - 91003-M8Q-0000-cabo200i

• 09
• Radial Ball BRG. CSB204 - 91104-KN7-6700-M2-cabo200i

• 10
• Oil Seal 34*52*8 - 91203-A6A-0000-cabo200i

• 11
• Oil Seal 20*32*6 - 91202-KJ9-0030-M1-cabo200i

• 12
• EX. Cir-clip 25MM - 94510-25000-cabo200i

• 13
• Radial Ball BRG. 6203 - 96100-62033-10-cabo200i

• 14
• Radial Ball BRG. 6301 - 96100-63013-00-cabo200i

• 15
• Ball Radial Bearing 6205 - 96150-62050-10-cabo200i

• 16
• Mission Breather Tube - 11221-ABA-0000-cabo200i

• 17
• Washer 17*30*1 - 90401-ANL-0000-cabo200i
