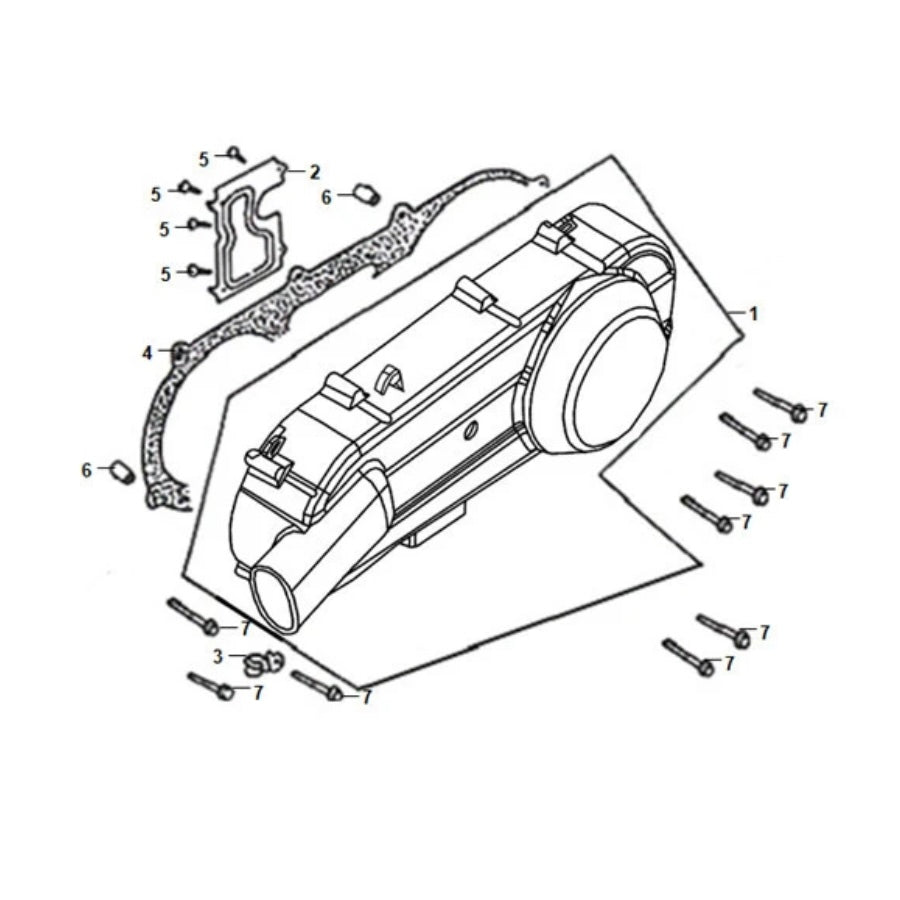

E 11 Left Crank Case Cover Diagram for Lance Havana 125cc Gas Scooter

E 11 Left Crank Case Cover Diagram for Lance Havana 125cc Gas Scooter

Parts:

1. 11341-Z4B-0101-S1 — L. Crank Case Cover — $196

2. 11342-GY6-9000 — L. Cover Plate — $13

3. 11383-GY6-A000 — Air/C Drain Tube Clamper — $4

4. 11395-KC1-0000 — L. Cover Gasket — $23

5. 93903-34120 — Tapping Screw 4×8 — $1

6. 94301-08140 — Dowel Pin 8×14 — $1

7. 96001-06040-08-0 — Flange Bolt 6×40 — $2

**We do not have live stock updates on diagram parts — please note that select parts may be out of stock. If you do not want to risk your parts being placed on backorder, visit the Contact page to check availability. Select parts may take a few weeks to arrive.

Questions about parts & compatibility? Visit the Contact page.
