E 11 Buddy 125 Air Cleaner Diagram

E 11 Buddy 125 Air Cleaner Diagram

Regular price $84.00 USD
Regular price Sale price $84.00 USD
Sale Sold out
Shipping calculated at checkout.
Parts
Quantity

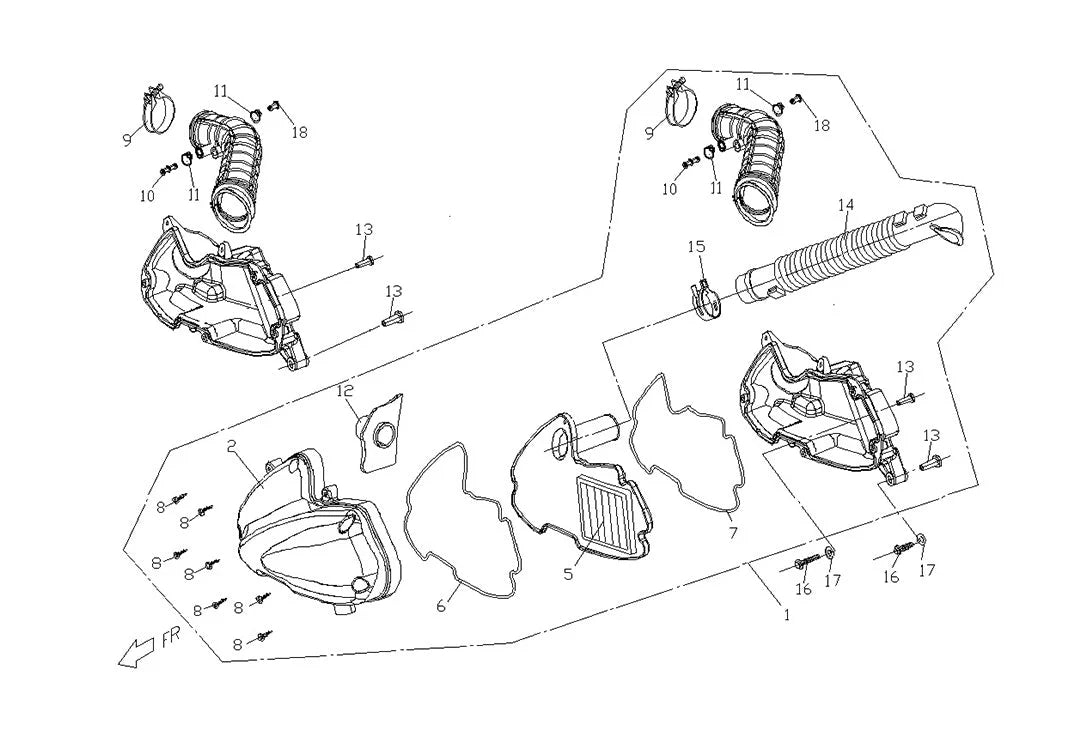

E 11 Buddy 125 Air Cleaner - Diagram

Part Numbers:

  • 1
    P62620000002 - AIR CLEANER ASSY (BUDDY125/150)
  • 2
    P6262020000 - COVER, AIR CLEANER (BUDDY125/150/170)

  • 5
    P6262030000 - GSC Air Filter Element - Genuine Buddy 125/150/170i
  • 6
    P6262040000 - PACKING, AIR FILTER (1) (BUD 125/150)
  • 7
    P6262230000 - PACKING, AIR CLEANER (2) (BUD 125/150/170)
  • 8
    90150502000 - C-R ROUND HD. TAPPING SCREW (BUD 125)
  • 9
    P62621100001 - CLIP (BLACK) (BUD125/170)
  • 10
    P6262360000 - PIPE, TWO WAY (BUD125/170)
  • 11
    92201200000 - CLIP (BUD 125/150/170/HOOL)
  • 12
    P6262050000 - CONNECTION PIPE (BUD 125)
  • 13
    P6262060000 - BUSH (BUD125/170)
  • 14
    P6262270000 - INLET CONNECTING PIPE (BUD 125/170)
  • 15
    92214000000 - HOSE CLIP (BUD 125)
  • 16
    90190603500 - GSC Hex Flange Bolt M6 x 1.0mm x 35mm - 8mm Head D
  • 17
    92140600018 - WASHER - 6.4DX13DX1T, PLAIN WASHER - Sold out
  • 18
    P6262370000 - PLUG, JOINT TUBE (BUD 125)
    Questions about parts & compatibility? Visit the contact page.
