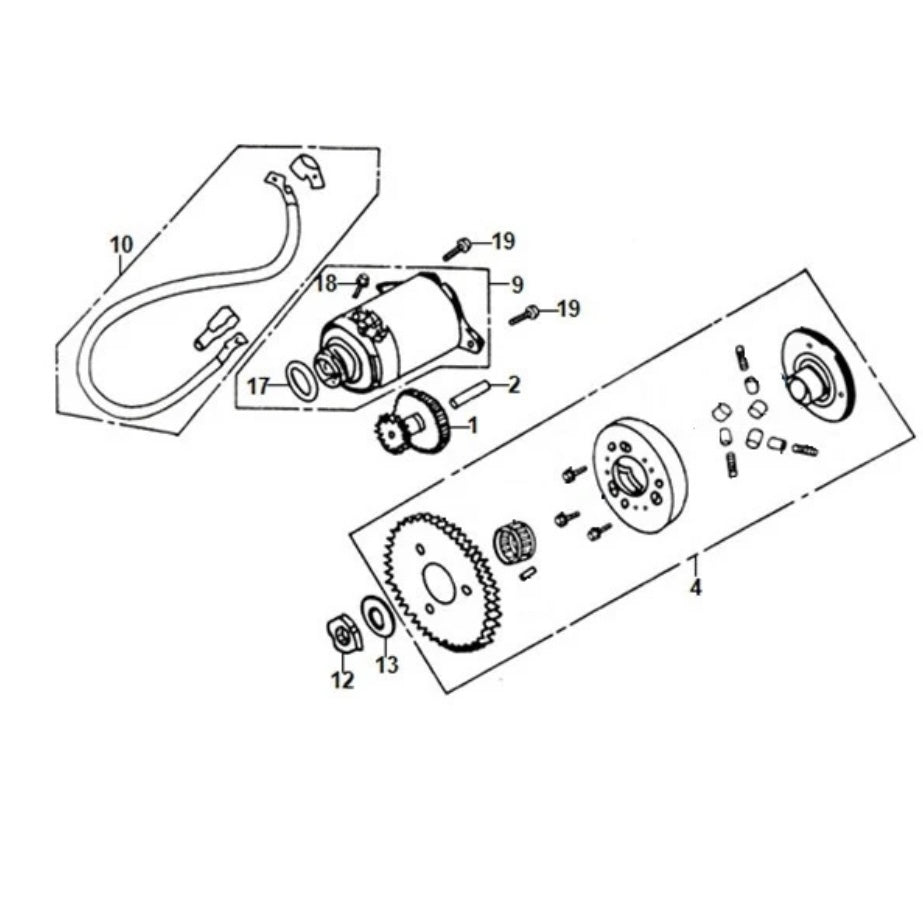

E 10 Starter Motor / Clutch Outer - Lance Havana 125 Diagram

E 10 Starter Motor / Clutch Outer - Lance Havana 125 Diagram

Parts:

• (1) 28101-GY6-9000 — Starter Reduction — $29
• (2) 28102-GY6-9000 — Starter Reduction — $5
• (4) 2812A-V02-0005 — Starter Clutch — $101
• (9) 31200-GY6-9000 — Starter Motor — $130
• (10) 32410-H2G-0000 — Starter Motor Cable — $18
• (12) 90201-GY6-9000 — Lock Nut 22mm — $6
• (13) 90403-GY6-9000 — Thrust Washer 22.2×31×2.5 — $2
• (17) 91309-425-0030 — O-Ring 24.4×3.1 — $1
• (18) 91981-KN7-6700 — Washer Screw — $3
• (19) 96001-06016-08 — Flange Bolt 6×16 — $1

We do not have live stock updates on diagram parts — please note that select parts may be out of stock. If you do not want to risk your parts being placed on backorder, visit the Contact page to check availability. Select parts may take a few weeks to arrive.

Questions about parts & compatibility? Visit the Contact page.
