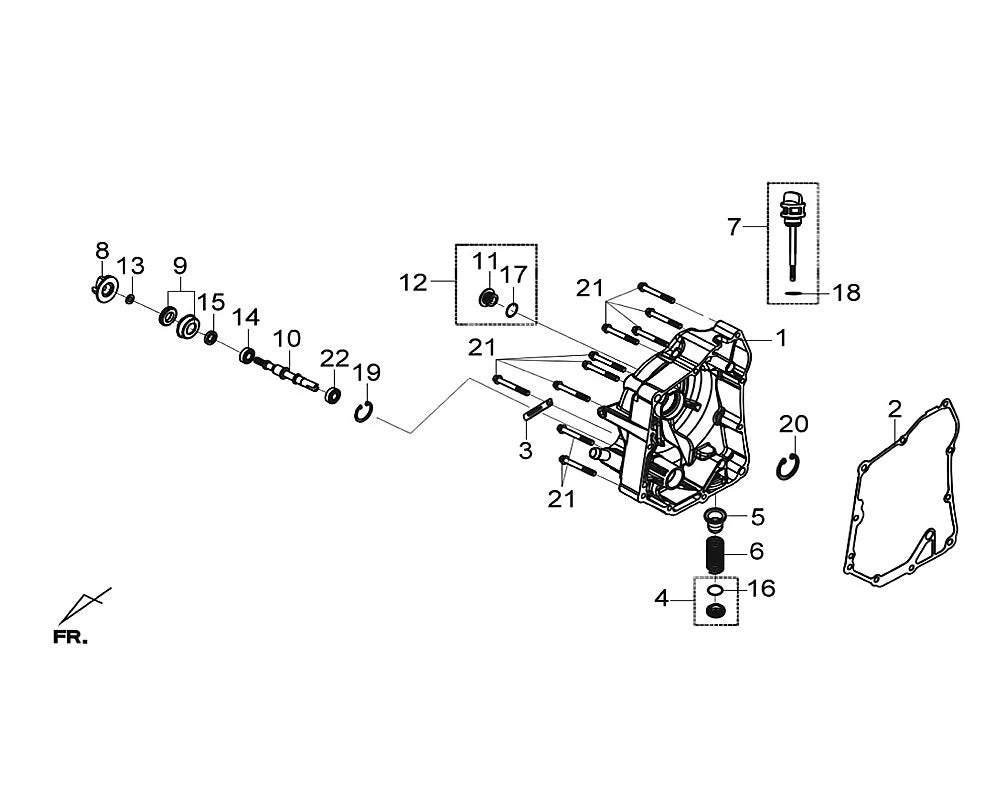

E 10 R. CASE COVER COMPLETE for SYM Citycom S 300i Gas Scooter

R. CASE COVER COMPLETE for SYM Citycom S 300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

OEM Parts:

• 01 R. Case Cover Complete
• 11330-LEA-000

• 02 R. Crank Case Cover Gasket
• 11394-HMA-002

• 03 Clamp
• 12342-X01-000

• 04 Tappet Adj Hole Cap Assy
• 1236A-V02-000

• 05 Oil Filter Screen
• 15421-B9D-000

• 06 Oil Filter Screen Spring
• 15426-X15-000

• 07 Oil Level Gauge Assy
• 1565A-LEA-000

• 08 Water Pump Impeller
• 19215-HLA-000

• 09 Mechanical Seal
• 19217-H9A-300

• 10 Water Pump Shaft
• 19231-HMA-000

• 11 A.C. Gen. Cap 14mm
• 90084-H9A-000

• 12 A.C. Gen. Cap Assembly
• 9008A-H9A-000

• 13 Washer 7.2x13x1.2
• 90423-KJ9-000

• 14 Radial Ball BRG. 6901
• 91001-KJ9-005

• 15 Oil Seal 12x20x5
• 91205-KF0-003

• 16 O-ring 30.8mm
• 91302-M9Q-000

• 17 O-ring 13.8x2.5
• 91303-M2Q-000

• 18 O-ring 18x3
• 91307-M9Q-000

• 19 Circlip in 26mm
• 94520-2600

• 20 In Circlip 32mm
• 94520-32000

• 21 Flange Bolt 6x45
• 96001-06045-00

• 22 Radial Ball Brg. 6000cm
• 96100-60000-00

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***

Questions about parts & compatibility? Visit the contact page. - HB SCOOTERS PARTS - Professional Scooter Dealership in Southern California Since 2008
