E 09 R. CRANK CASE COMPLETE for SYM Citycom S 300i Gas Scooter

R. CRANK CASE COMPLETE for SYM Citycom S 300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

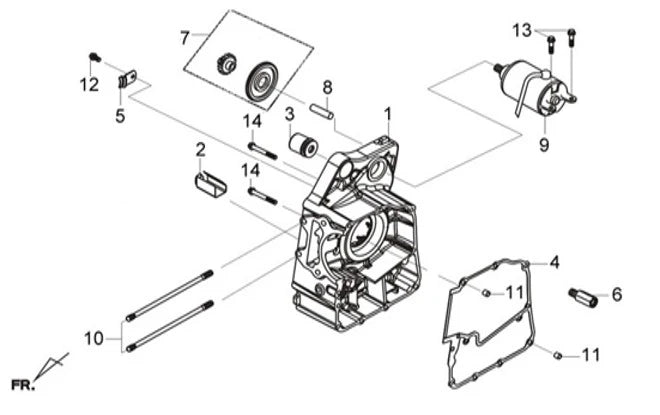

OEM Parts:

• 01 R. Crank Case Complete
• 11100-L3A-000

• 02 Magnet Plate
• 11107-HMA-000

• 03 Engine Hanger Bush Assembly
• 11120-LEA-000

• 04 Crank Case Gasket
• 11191-L3A-010

• 05 Cam Chain Setting Plate
• 14151-RFA-000

• 06 Oil Relief Valve Assembly
• 15200-HML-000

• 07 Starter Reduction Gear Complete
• 28101-RB1-000

• 08 Start Reduction Gear Shaft
• 28102-RB1-000

• 09 Start Motor Assembly
• 31200-HMA-000

• 10 Cylinder Stud Bolt A
• 90031-HMA-000

• 11 Dowel Pin 8x14
• 94301-08140

• 12 Flange Bolt 6x12
• 95701-06012-08

• 13 Flange Bolt SH 6x22
• 96001-06022-00

• 14 Bolt Flange SH 6x55
• 96001-06055-00

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
