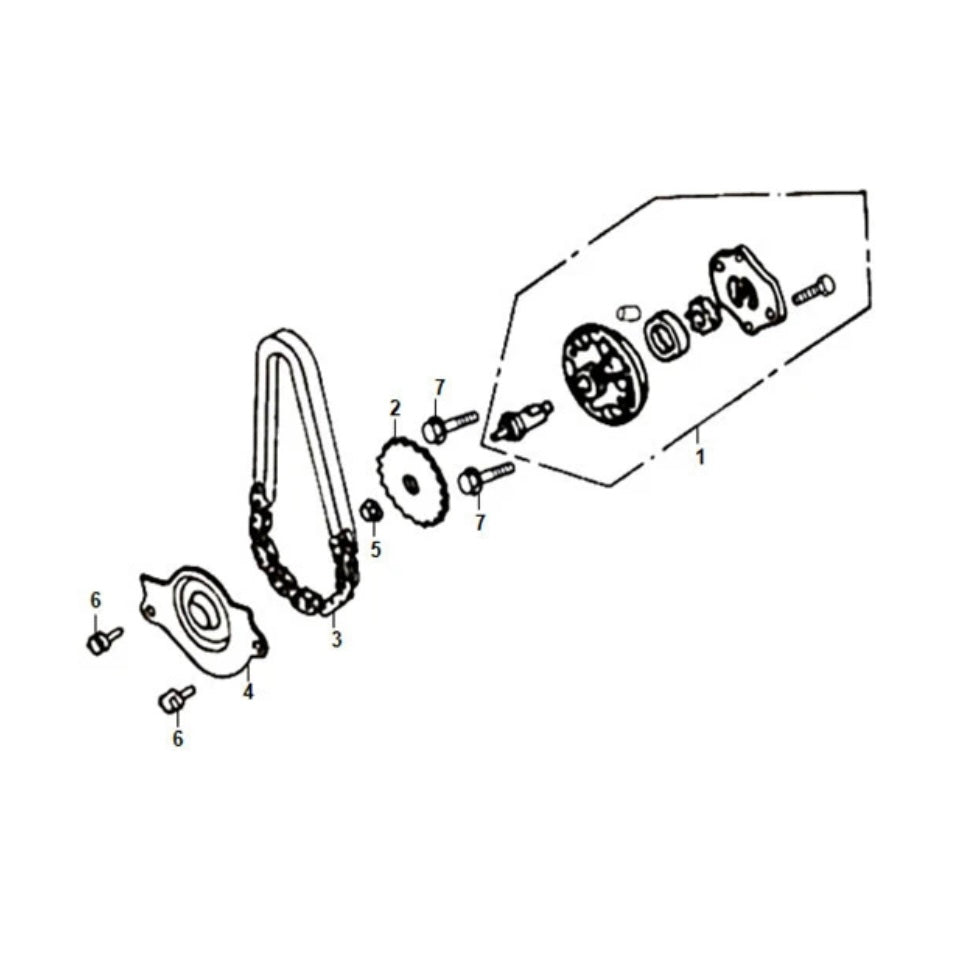

E 09 Oil Pump - Lance Havana 125 Diagram

E 09 Oil Pump - Lance Havana 125 Diagram

Parts:

1. 15100-H12-A000 — Oil Pump ASSY — $23
2. 15133-GY6-9000 — Oil Pump Driven — $11
3. 15141-V02-0001-M1 — Oil Pump Chain — $16
4. 96001-06025-08 — Flange Bolt 6×25 — $1
5. 15711-GY6-9000 — Oil Separator — $6
6. 94050-06080 — Flange Nut 6mm — $1
7. 96001-06012-08 — Flange Bolt 6×12 — $1
8. 93600-06025-0A — Flat Bolt 6×25 — $1

We do not have live stock updates on diagram parts — please note that select parts may be out of stock. If you do not want to risk your parts being placed on backorder, visit the Contact page to check availability. Select parts may take a few weeks to arrive.

Questions about parts & compatibility? Visit the Contact page.
