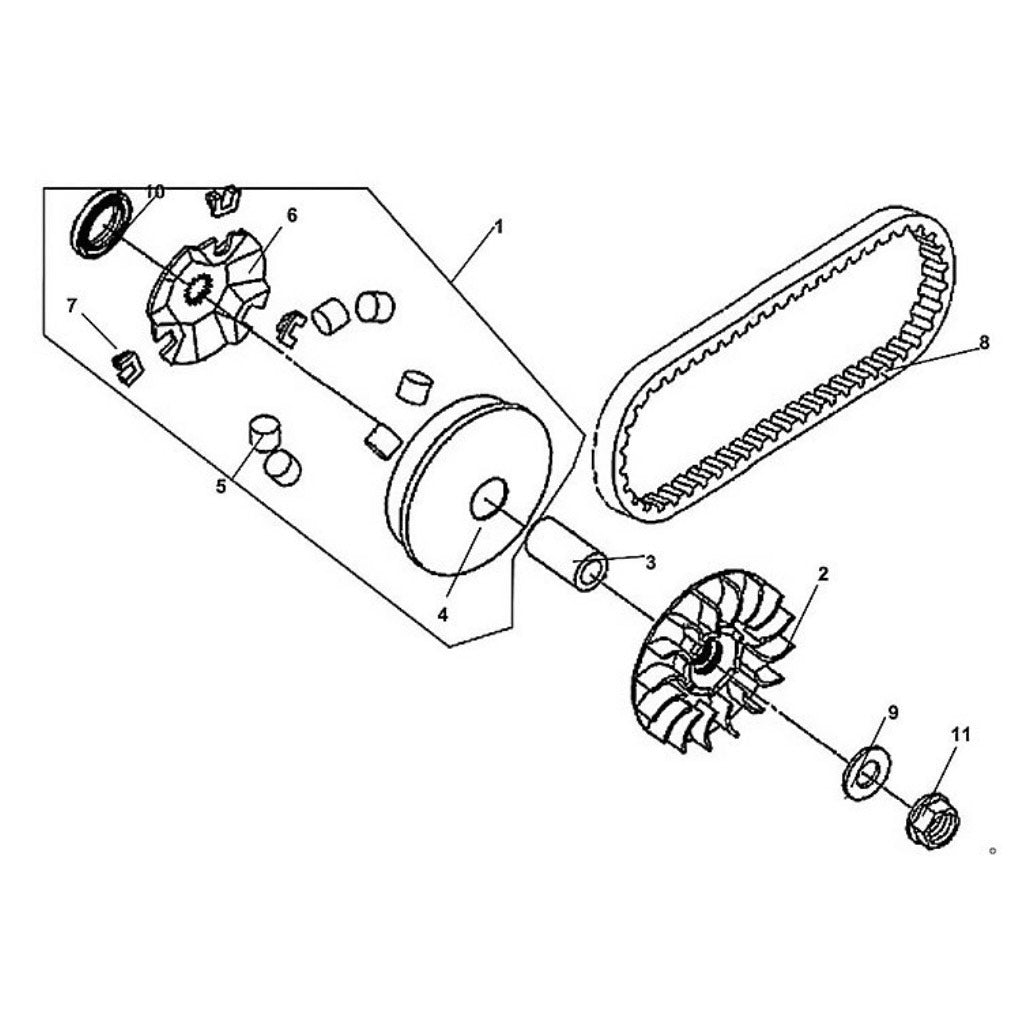

E 09 Moveable Drive Face Assembly - Lance Cabo 200i Diagram

E 09 Moveable Drive Face Assembly - Lance Cabo 200i Diagram

• 01
• Movable Drive Face ASSY - 2211A-F6C-0001-cabo200i

• 02
• Drive Face COMP - 22102-ARA-0001-cabo200i
• 03
• Drive Face Boss - 22105-M92-0000-cabo200i

• 04
• Movable Drive Face COMP - 22110-H5B-0001-cabo200i

• 05
• Weight Roller COMP (6per set) - 22121-GY6-9200-cabo200i

• 06
• Ramp Plate - 22131-M92-0002-cabo200i

• 07
• Slide Piece (3 per set) - 22132-ARA-0000-cabo200i

• 08
• Drive Belt - 23100-XJA-0000-cabo200i

• 09
• Plain Washer 12MM - 90440-166-0000-cabo200i-2

• 10
• Oil Seal 25*40*7 - 91204-HMA-0005-M2-cabo200i

• 11
• Flange Nut 12MM - 94050-12000-cabo200i-2
