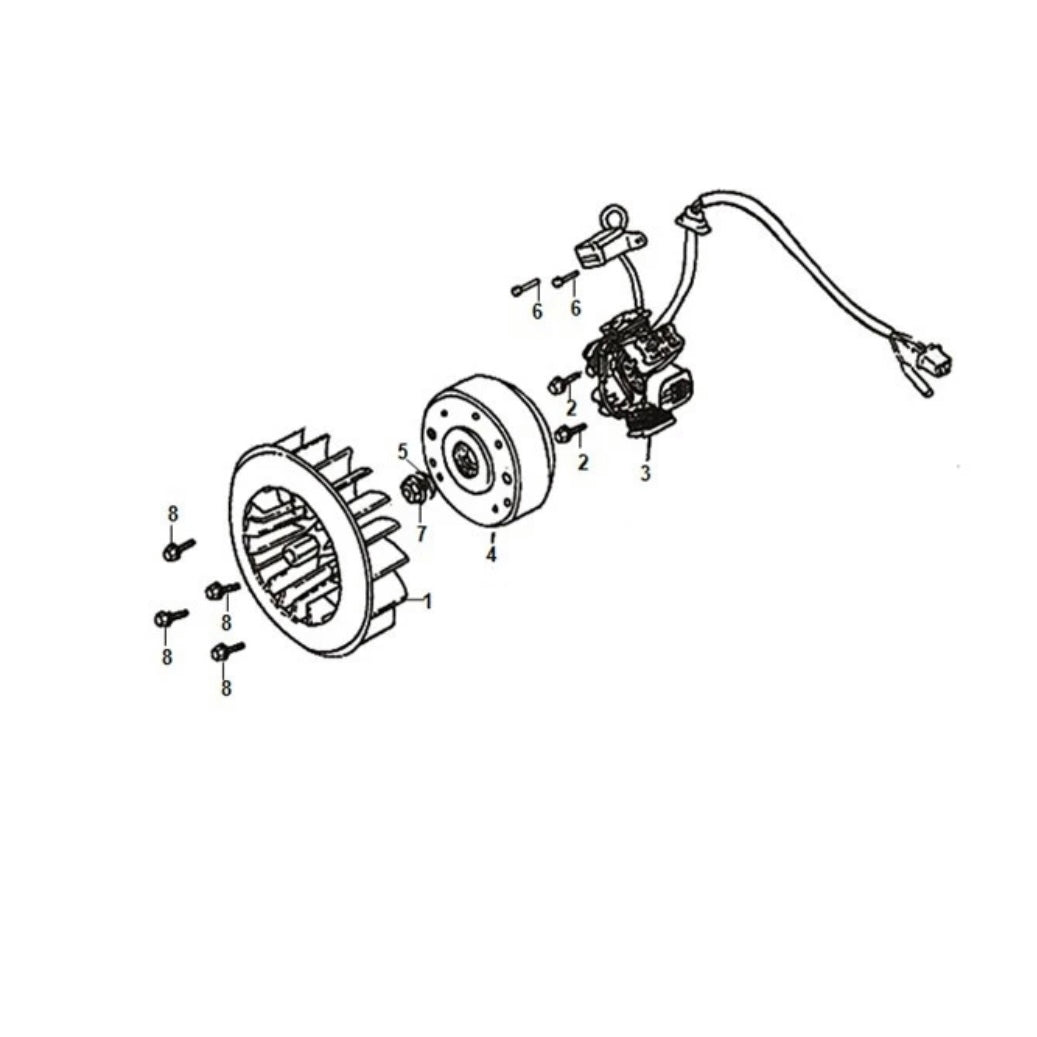

E 08 Generator / Fly Wheel / Stator - Lance Havana 125 Diagram

1. 19510-H69-0001 — Cooling Fan Comp — $16
2. 96001-06020-08 — Flange Bolt 6×20 — $2
3. 31120-H80-A000 — A.C.G. Stator — $98
4. 31110-T3D-0000-M1 — A.C.G. Flywheel — $68
5. 90440-166-0000 — Plain Washer 12×22 — $2
6. 92101-05012-0A — HEX. Bolt 5×12 — $1
7. 94050-12080 — Flange Nut 12mm — $2
8. 96001-06018-08 — Flange Bolt 6×18 — $1

We do not have live stock updates on diagram parts — please note that select parts may be out of stock. If you do not want to risk your parts being placed on backorder, visit the Contact page to check availability. Select parts may take a few weeks to arrive.

Questions about parts & compatibility? Visit the Contact page.
