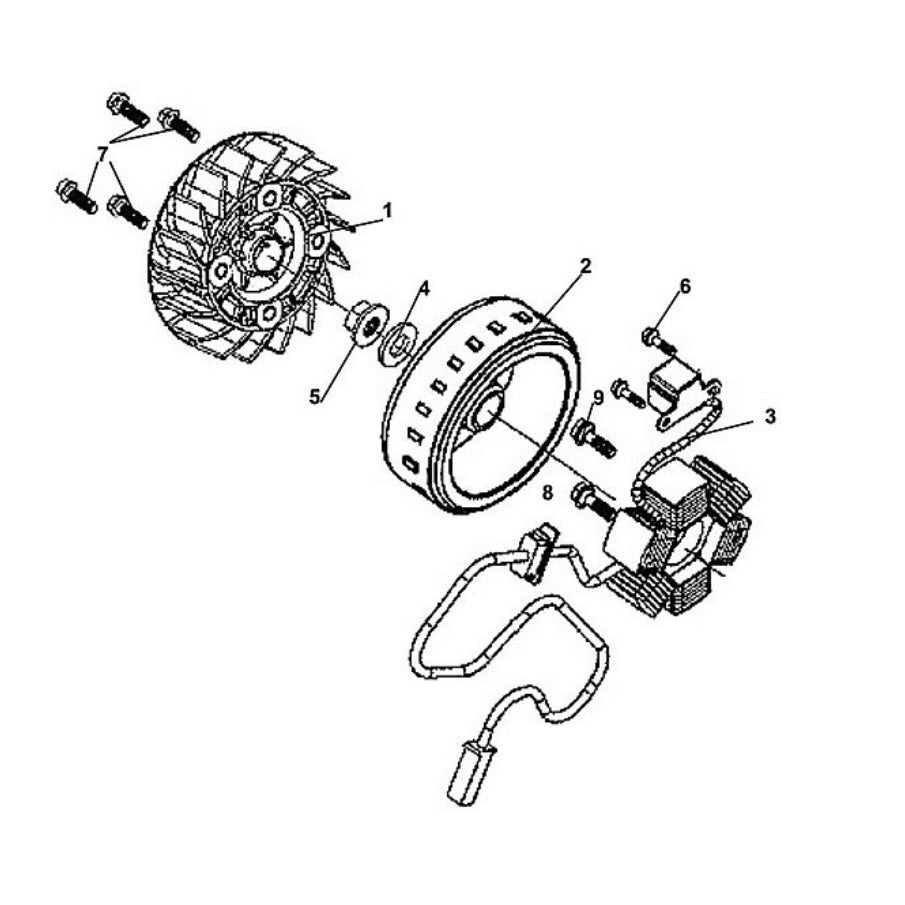

E-07 Stator / AC Gen Assy - Lance Cabo 200i Diagram

E-07 Stator / AC Gen Assy  - Lance Cabo 200i Diagram

Shop diagram parts for the Lance Cabo 200i

• 01
• Cooling Fan COMP - 19510-H69-0001-cabo200i

• 02
• Flywheel COMP - 31110-Z5C-0102-cabo200i

• 03
• Stator COMP - 31120-Z5C-0103-cabo200i

• 04
• Plain Washer 12MM - 90440-166-0000-cabo200i

• 05
• Flange Nut 12MM - 94050-12000-cabo200i

• 06
• HEX Bolt 5*12mm - 92101-05012-0A-cabo200i

• 07
• Flange Bolt 6*18 - 96001-06018-08-cabo200i

• 08
• Flange Bolt 6*28 - 96001-06028-08-cabo200i

• 09
• SH. Flange Bolt 6*20 - 96001-06020-00-cabo200i
