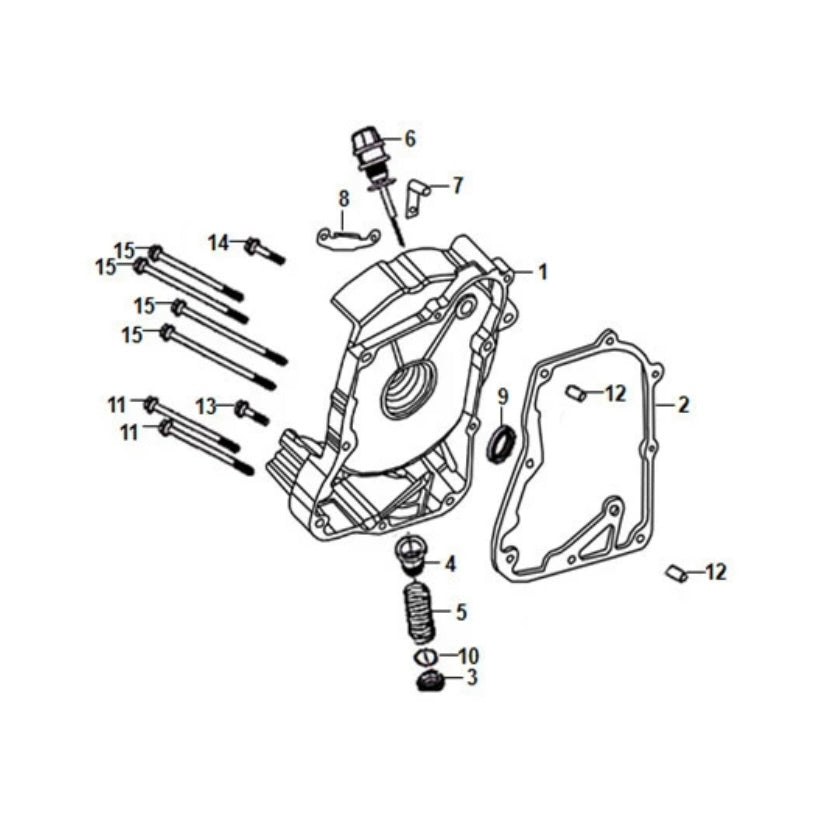

E 07 Right Crank Case Cover - Lance Havana 125 Diagram

E 07 Right Crank Case Cover - Lance Havana 125 Diagram

Parts:

1. 11331-GY6-0002 — R. Crank Case Cover — $109
2. 11394-Z8G-0000 — R Cover Gasket — $21
3. 12361-M9Q-0001 — Tappet ADJ. Hole Cap — $8
4. 15421-H66-0000 — Oil Filter Screen — $11
5. 15426-M9Q-0000 — Oil Filter Screen Spring — $1
6. 1565A-AAA-0000 — Oil Level Gauge ASSY — $8
7. 19613-GY6-9000 — Starter Motor Cord Clamp — $6
8. 32961-GY6-9000 — ACG Clip — $2
9. 91201-GY6-9031 — Oil Seal 19.8×30×5 — $6
10. 91302-M9T-0002 — O-Ring 30.8mm — $2
11. 96001-06110-08 — Flange Bolt 6×110 — $3
12. 94301-08140 — Dowel Pin 8×14 — $1
13. 96001-06032-08 — Flange Bolt 6×32 — $1
14. 96001-06040-080 — Flange Bolt 6×40 — $2
15. 96001-06095-08 — Flange Bolt 6×95 — $2

We do not have live stock updates on diagram parts — please note that select parts may be out of stock. If you do not want to risk your parts being placed on backorder, visit the Contact page to check availability. Select parts may take a few weeks to arrive.

Questions about parts & compatibility? Visit the Contact page.
