E 07 CYLINDER SET for SYM Citycom S 300i Gas Scooter

CYLINDER SET for SYM Citycom S 300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

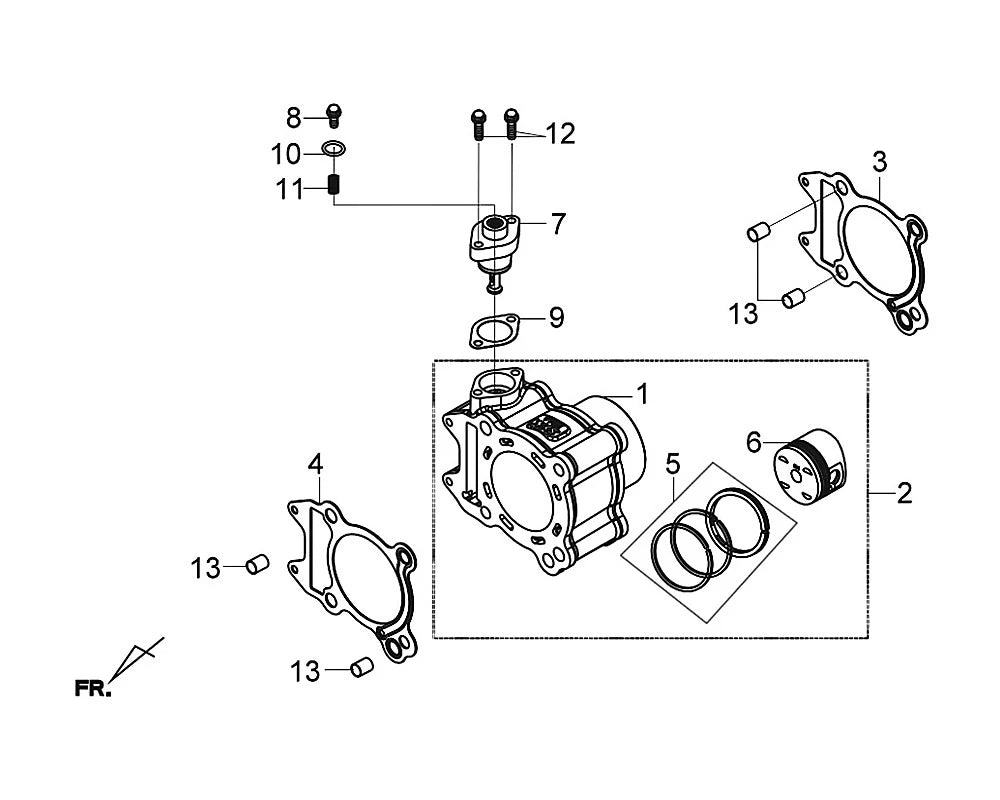

OEM Parts:

• 01 Cylinder Complete
• 1210S-LEA-000

• 02 Cylinder Assembly
• 12100-L3A-000-A

• 03 Cylinder Gasket
• 12191-RFA-001

• 04 Cylinder Head Gasket
• 12251-RFA-000

• 05 Piston Ring Set
• 13010-L3A-000

• 06 Piston
• 13101-L3A-000

• 07 Tensioner Lifter
• 14520-H6T-000

• 08 Tensioner Adjuster Bolt
• 14522-H6T-000

• 09 Tensioner Lifter Gasket
• 14523-M9Q-000

• 10 Oil-ring
• 14524-H6T-000

• 11 Adjuster Spring
• 14525-H6T-000

• 12 Flange SHF Bolt 6x22
• 90001-RFS-000

• 13 Dowel Pin 12*20
• 94301-12200
