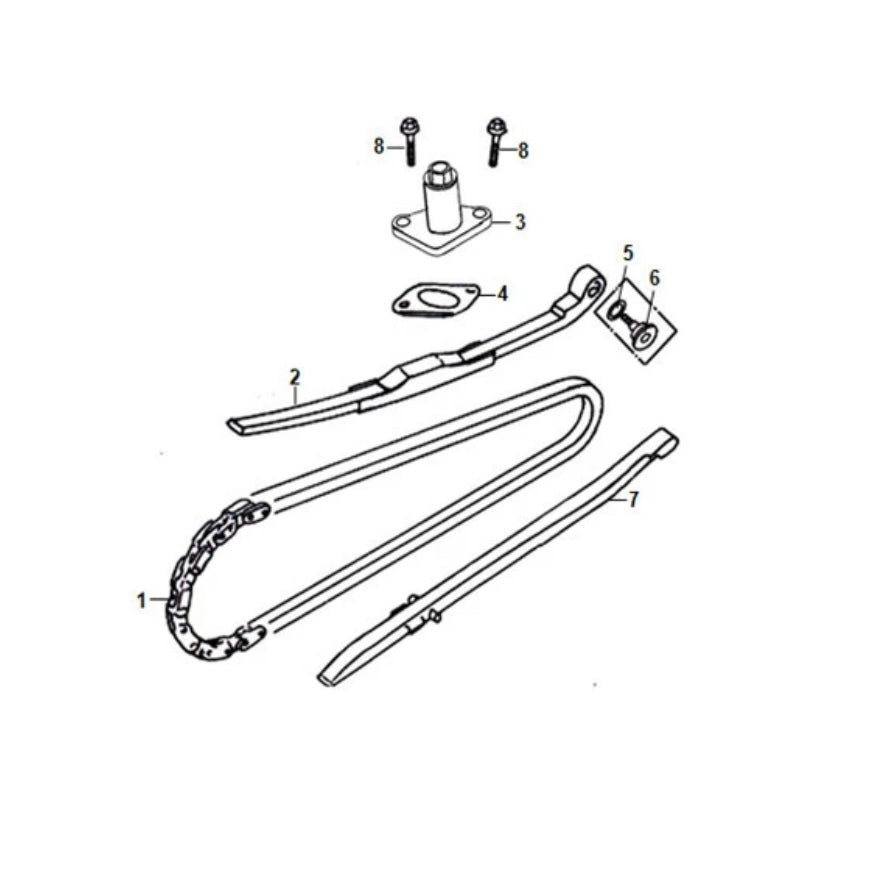

E 05 Cam Chain / Tensioner - Lance Havana 125 Diagram

E 05 Cam Chain / Tensioner - Lance Havana 125 Diagram

Parts:

1. 14401-V02-0001-M1 — Cam Chain — $47
2. 14510-GY6-9000 — Cam Chain Guide — $19
3. 14520-ZFE-0000 — Tensioner Lifter ASSY — $24
4. 14523-Z8G-0000 — Tensioner Lifter Gasket — $2
5. 91301-GR0-0030 — O-Ring 15.5×1.5 — $2
6. 14531-M9Q-0000 — Tensioner Pivot ASSY — $6
7. 14610-GY6-9000 — Cam Chain Guide Comp — $23
8. 96001-06022-08 — Flange Bolt 6×22 — $2

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
