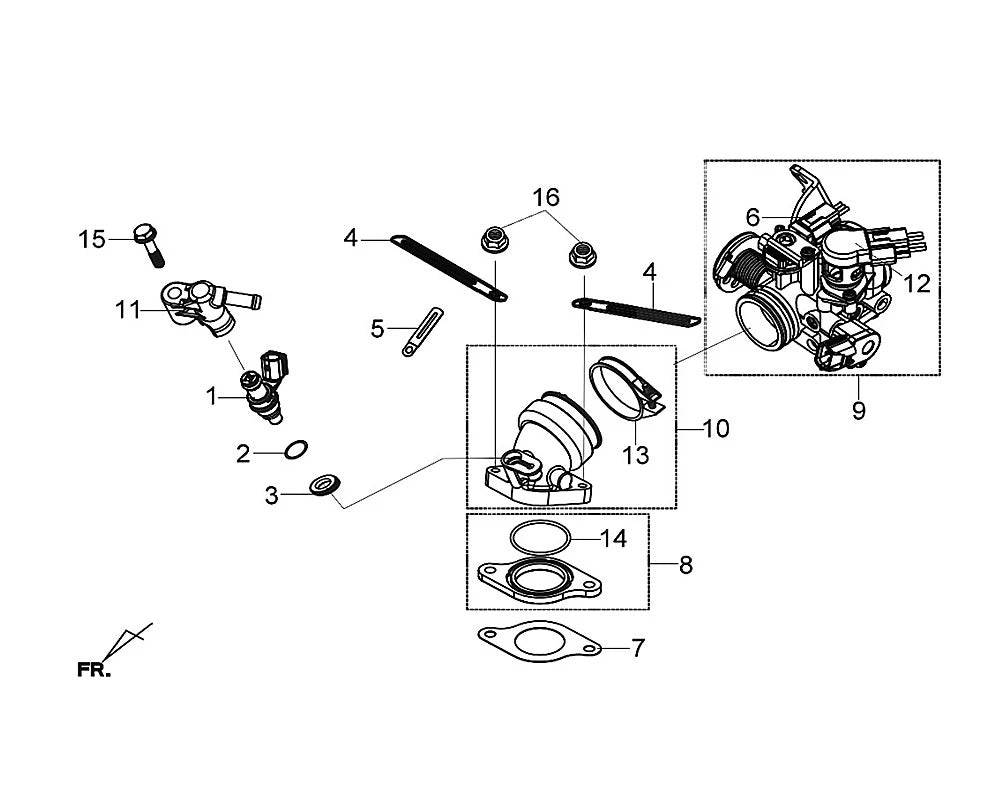

E 04 INLET PIPE ASSY for SYM Citycom S 300i Gas Scooter

INLET PIPE ASSY for SYM Citycom S 300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

OEM Parts:

• 01 Fuel Injector
• 06414-L4A-000

• 02 O-Ring
• 06415-HNS-000

• 03 Seal-ring
• 06416-HNS-000

• 04 Clamp
• 12342-G02-000

• 05 Clamp
• 12342-X01-000

• 06 Map Sensor (16401-hml-000)
• 16403-F6K-000

• 07 Carburetor Insulator Gasket
• 16201-HMC-001

• 08 Carburetor Insulator Assembly
• 1621A-HMC-000

• 09 Throttle Body Assembly
• 16401-LHB-000

• 10 Inlet Pipe Assembly
• 1711A-L3A-900

• 11 Fuel Injector Cup
• 17120-LHA-000

• 12 ISC Valve
• 3700-A35B-0100

• 13 Inlet Pipe Band 48
• 90653-HMA-000

• 14 O-ring 34*2.0
• 91308-HMA-000

• 15 Hex Bolt 5*12
• 92101-05012-0H

• 16 Flange Nut 6mm
• 94050-06000

We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive

***NOTE: There are no returns on electrical parts. Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.***
