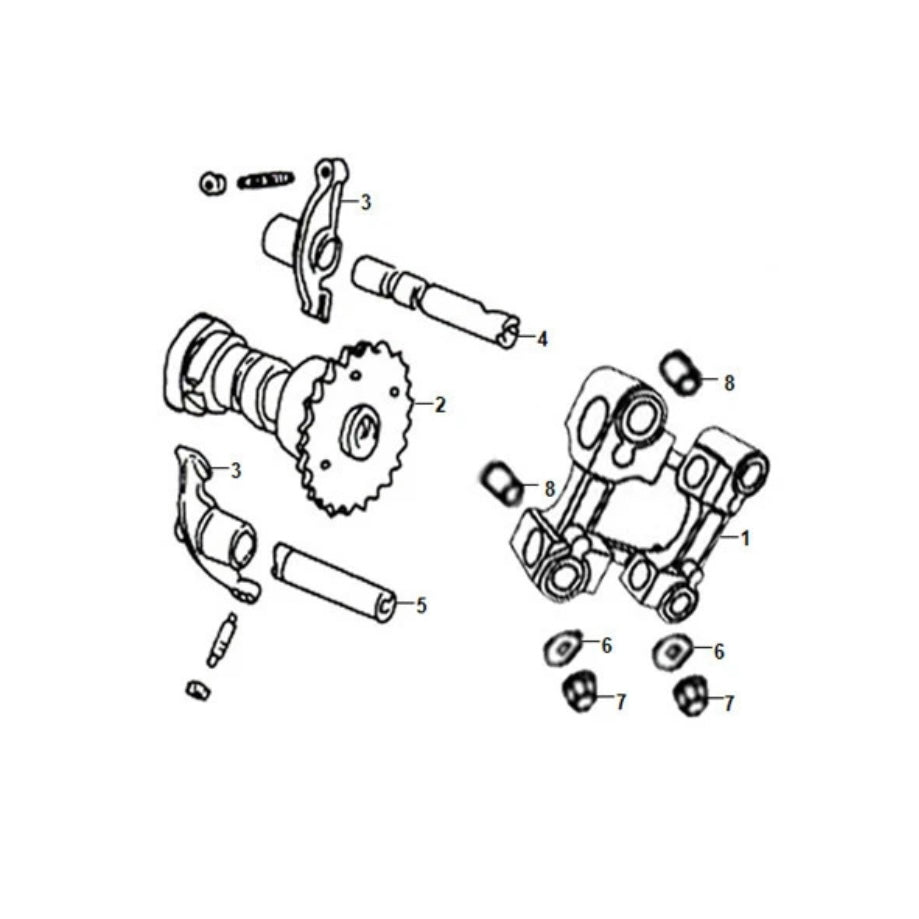

E 04 Cam Shaft / Valve - Lance Havana 125 Diagram

E 04 Cam Shaft / Valve - Lance Havana 125 Diagram

****NOTE: We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive

Part Numbers:

• 01
• 12211-GY6-900B-havana125 - Cam Shaft Holder

• 02
• 14100-GY6-0000-havana125 - Cam Shaft Comp

• 03
• 14431-GY6-900A-havana125 - Valve Rocker Arm

• 05
• 14452-GY6-9000-havana125 - Exhaust Rocker Arm Shaft

• 06
• 90465-MC4-0000-havana125 - Washer 8mm (sold individually)

• 07
• 94050-08080-G1-havana125 - Flange Nut 8mm (sold individually)

• 08
• 90703-M8Q-0003-havana125 - Dowel Pin 10x14

Questions about parts & compatibility? Visit the contact page. - HB SCOOTERS PARTS - Professional Scooter Dealership in Southern California Since 2008
