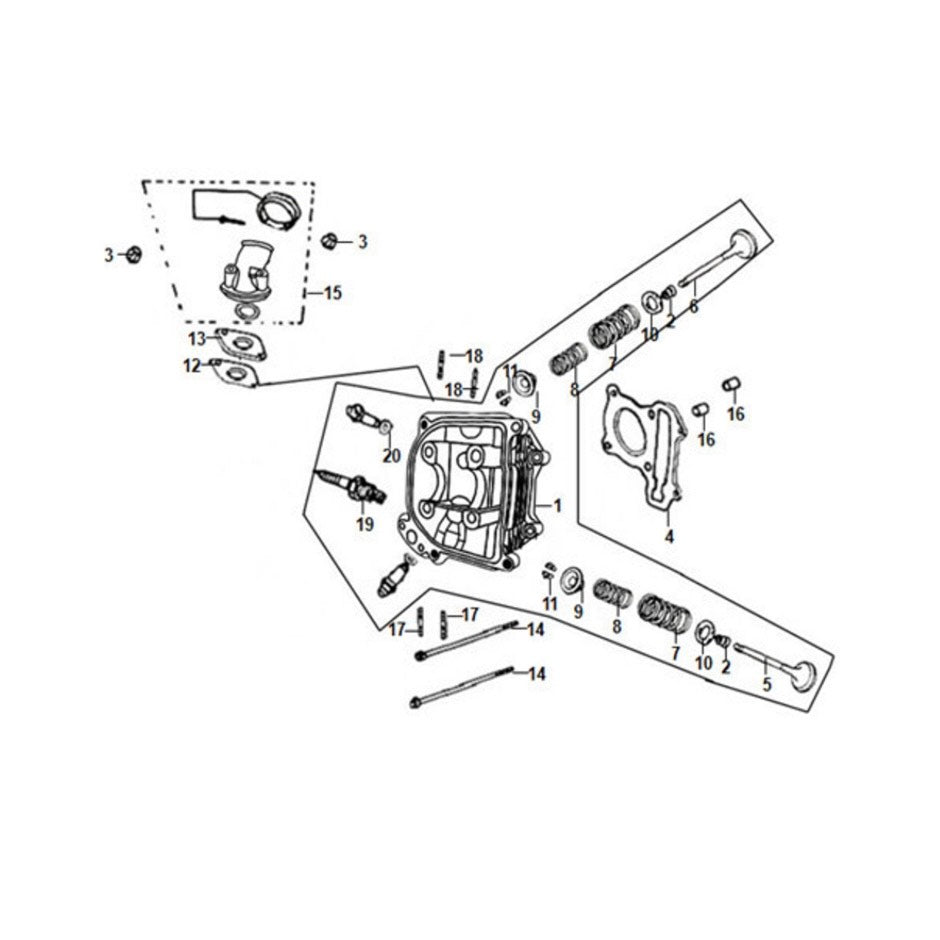

E 03 Cylinder Head for Lance Cali Classic 125cc

Parts:

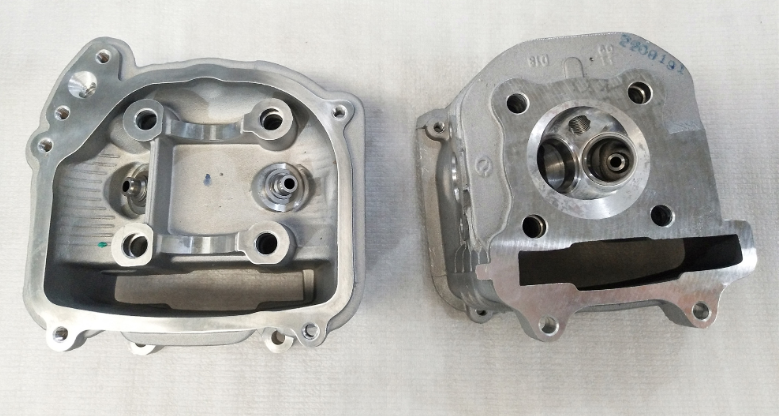

01 Cylinder Head
12200-H12-0008-cali125

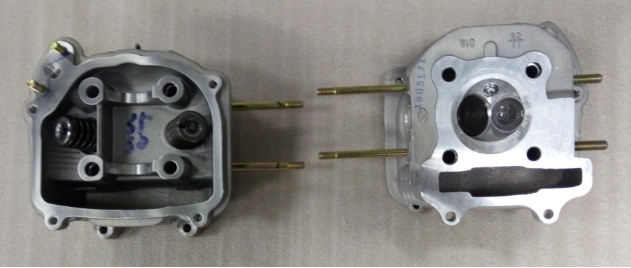

01 Cylinder Head Assembly
1220A-ABA-0003-cali125

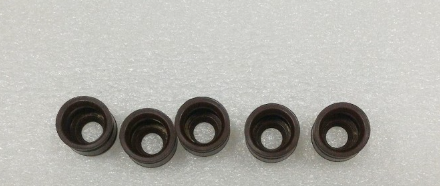

02 Valve Stem Seal
12209-H6B-9000-cali125

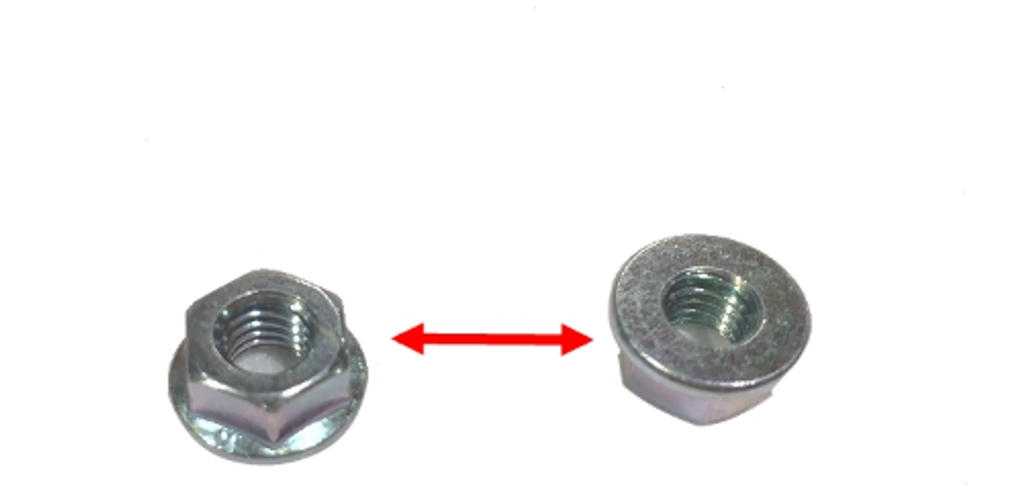

03 Flange Nut 6mm
94050-06080-0-CALI125

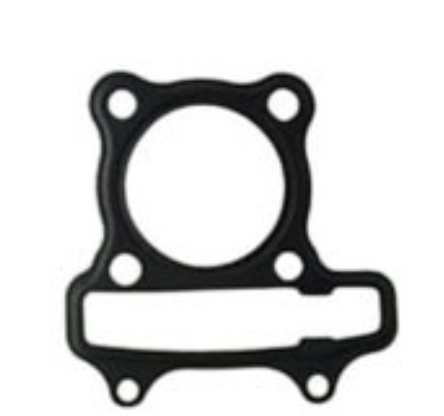

04 Head Gasket
12251-GY6-9000-cali125

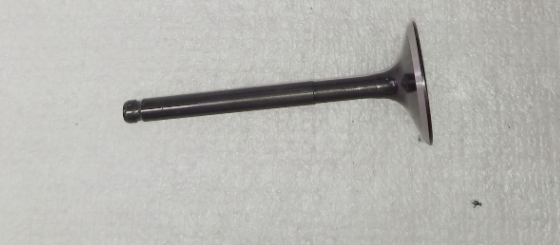

05 IN. Valve
14711-H12-A000-cali125

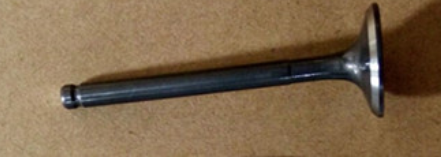

06 EX. Valve
14721-GY6-9000-cali125

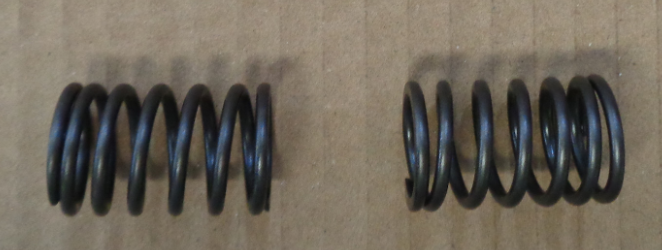

07 Valve Outer Spring
14751-GN5-9110-cali125

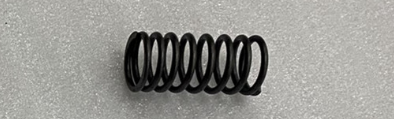

08 Valve Inner Spring
14761-GN5-9110-cali125

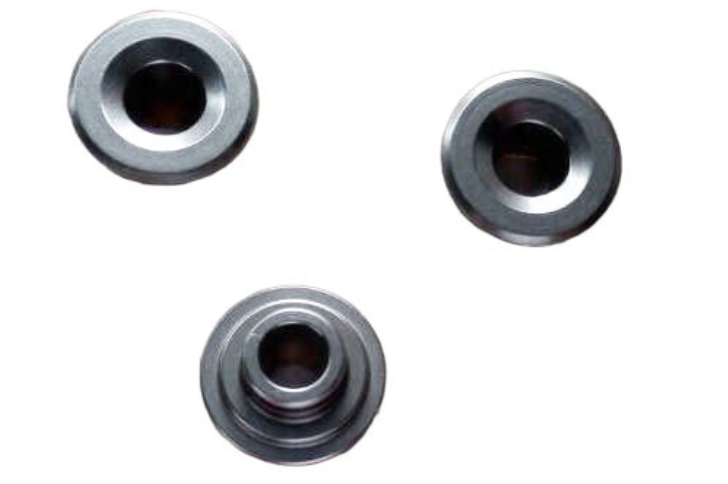

09 Valve Spring Retainer
14771-M8Q-0000-cali125

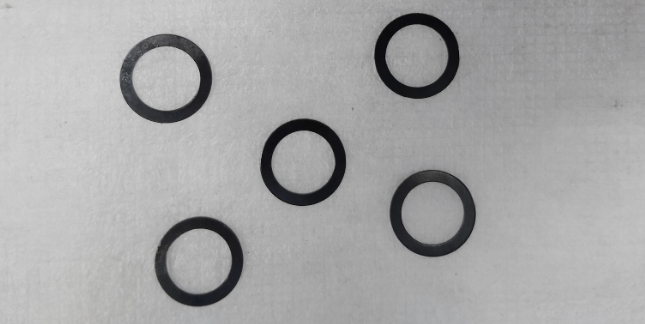

10 Valve Spring Seat
14775-M9Q-0000-cali125

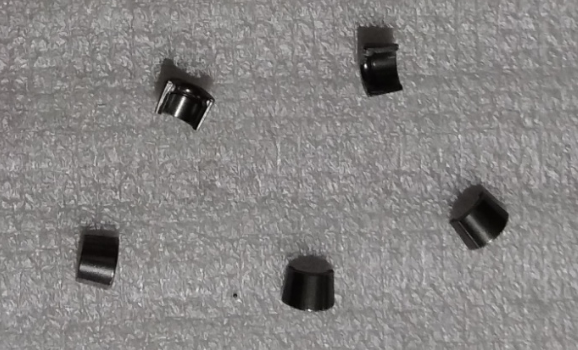

11 Valve Cotter
14781-A01-A000-cali125

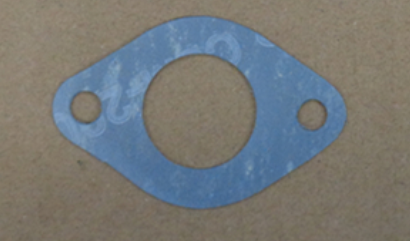

12 Insulator Gasket
16201-Z8G-0000-cali125

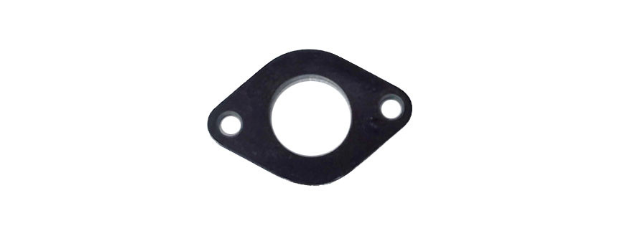

13 Carburetor Insulator
16211-GY6-9000-cali125

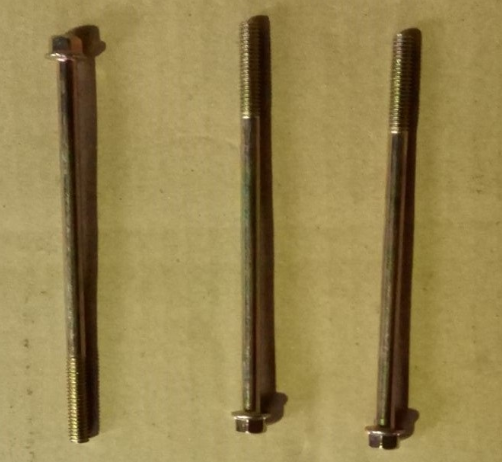

14 Flange Bolt 6x85
96001-06100-08-cali125

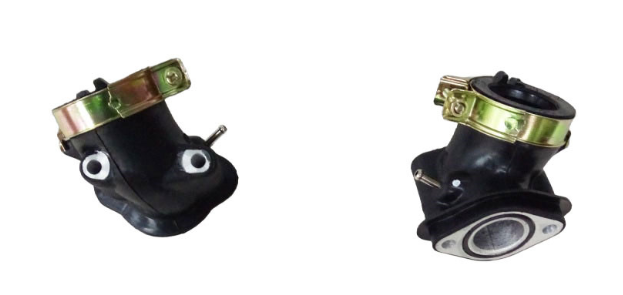

15 Intake Manifold
1711A-ABA-0001-cali125

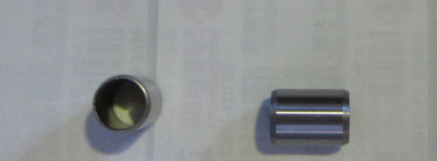

16 Dowel Pin
90703-M8Q-0003-0-cali125

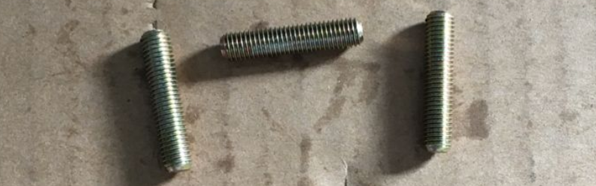

17 EX Stud bolt 7mm
90032-M92-3000-cali125

18 IN Stud Bolt 6mm
90033-M9Q-0000-cali125

18 Stud Bolt 6x65
90034-ABA-0000-CALI125

19 Spark Plug
98056-57718-NGK-cali125

NOTE: Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
