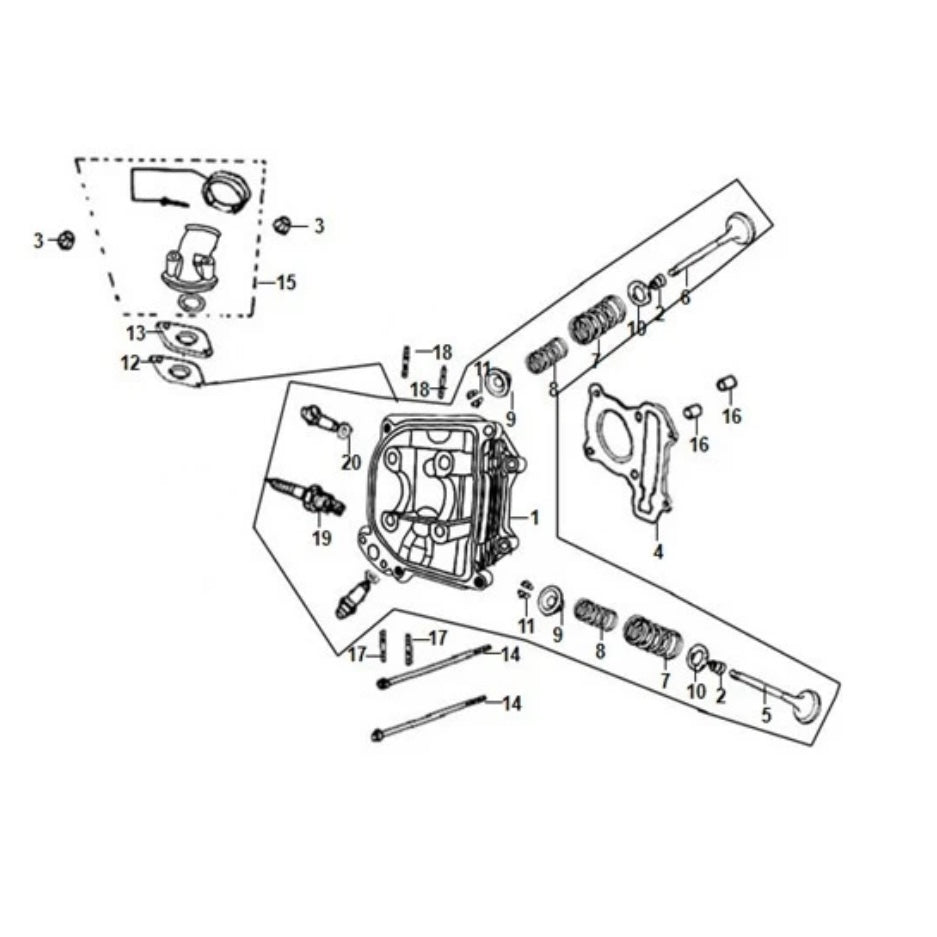

E 03 Cylinder Head - Lance Havana 125 Diagram

E 03 Cylinder Head - Lance Havana 125cc Diagram

****NOTE: We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive

Part Numbers:

• 01
• 12200-H12-0008-havana125 - Cylinder Head

• 01
• 1220A-ABA-0003-havana125 - Cylinder Head Assembly

• 02
• 12209-H6B-9000-havana125 - Valve Stem Seal

• 03
• 94050-06080-0-havana125 - Flange Nut 6mm

• 04
• 12251-GY6-9000-havana125 - Head Gasket

• 05
• 14711-H12-A000-havana125 - Intake Valve

• 06
• 14721-GY6-9000-havana125 - Exhaust Valve

• 07
• 14751-GN5-9110-havana125 - Valve Outer Spring

• 08
• 14761-GN5-9110-havana125 - Valve Inner Spring

• 09
• 14771-M8Q-0000-havana125 - Valve Spring Retainer

• 10
• 14775-M9Q-0000-havana125 - Valve Spring Seat

• 11
• 14781-A01-A000-havana125 - Valve Cotter

• 12
• 16201-Z8G-0000-havana125 - Insulator Gasket

• 13
• 16211-GY6-9000-havana125 - Carburetor Insulator

• 14
• 96001-06100-08-havana125 - Flange Bolt 6x100

• 15
• 1711A-ABA-0001-havana125 - Intake Manifold

• 16
• 90703-M8Q-0003-0-havana125 - Dowel Pin 10x14

• 17
• 90033-M9Q-0001-havana125 - Stud Bolt 6x18

• 18
•  90034-ABA-0000-HAVANA125 - Stud Bolt 6x65

• 19
• 98056-57718-M2-havana125 - Spark Plug (CR7HSA)
