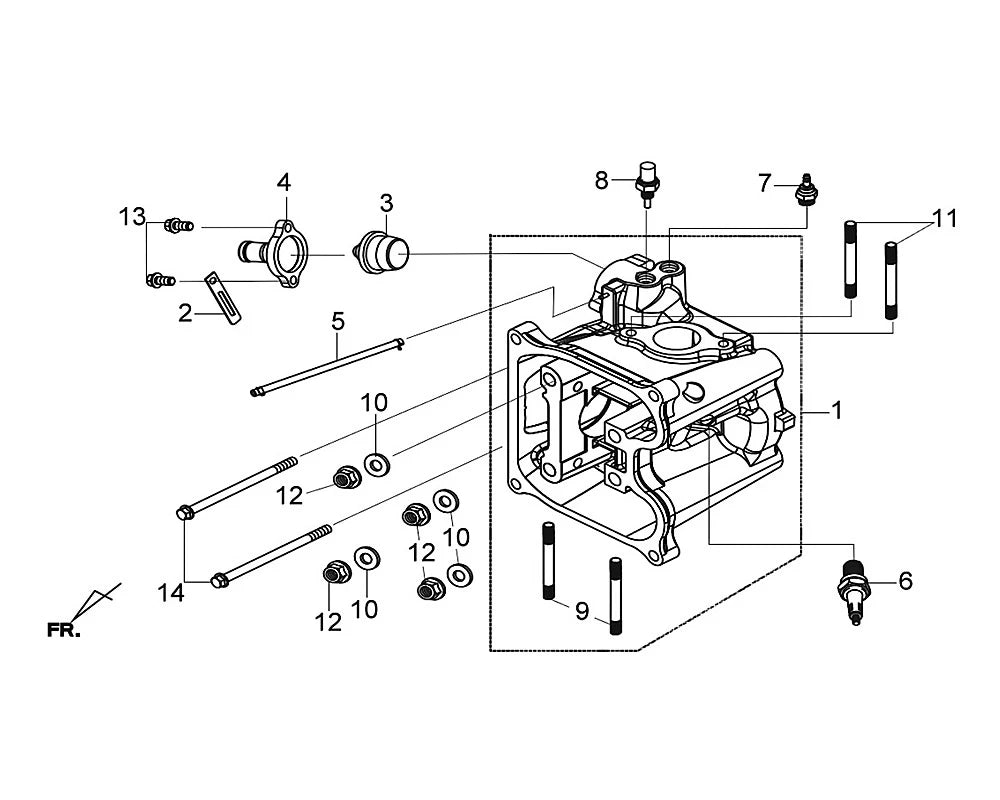

E 03 Cylinder Head Complete for SYM Citycom S 300i Gas Scooter

Cylinder Head Complete for SYM Citycom S 300i Gas Scooter

New Stock Original Replacement Parts - Manufactured by SYM Taiwan

Parts:

• 01 Cylinder Head Complete
• 12200-L3A-010

• 02 Clamp
• 12342-X01-000

• 03 Thermostat Assembly
• 19300-HMA-000

• 04 Thermostat Cover
• 19315-LEA-000

• 05 Thermostat Tube Assembly
• 1951A-HMA-010

• 06 Plug CR8E
• 1PCR8E-3

• 07 Thermostat Unit Assembly
• 37750-PC1-004

• 08 Tw Sensor
• 37880-HMC-000

• 09 Special Stud Bolt 8*40
• 90034-HMA-000

• 10 Seal Washer
• 90442-HMA-000

• 11 Stub Bolt 6x28
• 92900-06028-0B

• 12 Flange Nut 10mm
• 94050-10080

• 13 Flange Bolt SH 6x16
• 96001-06016-00

• 14 Flange Bolt SH 6x90
• 96001-06090-00

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
