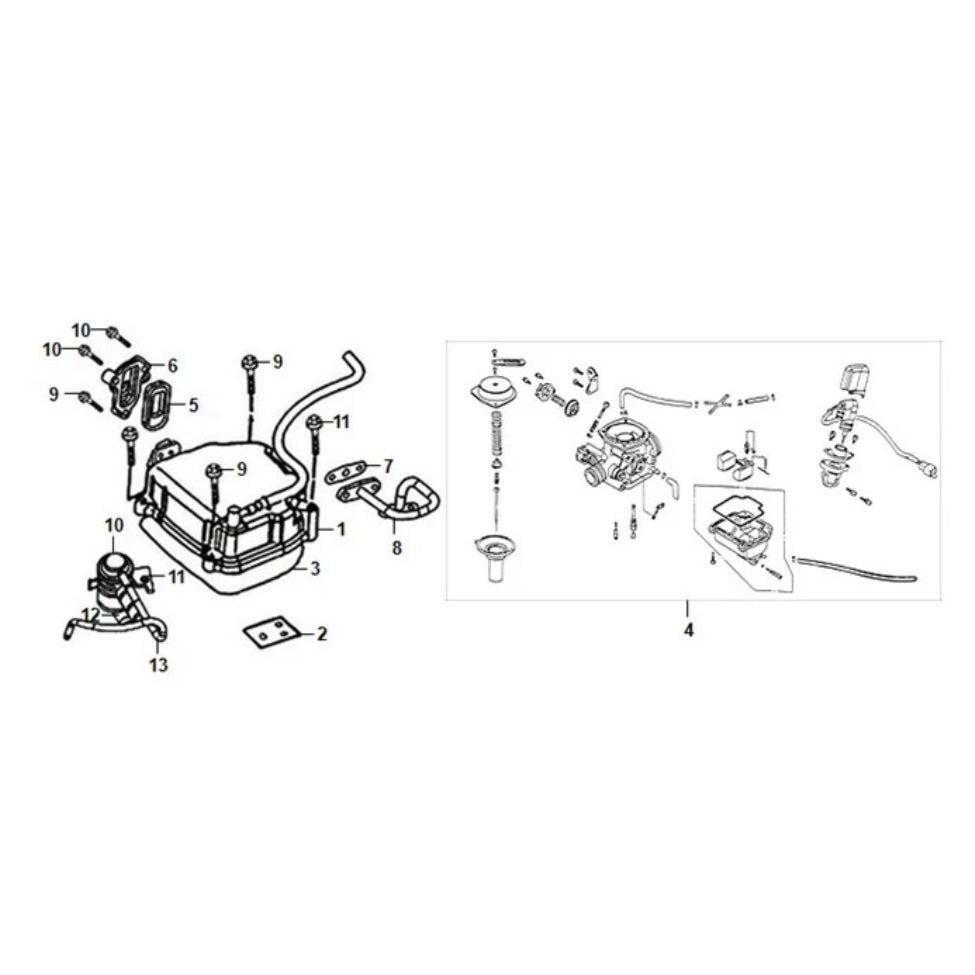

E 02 Cylinder Head Cover / Carburetor - Lance Havana 125 Diagram

E 02 Cylinder Head Cover / Carburetor - Lance Havana 125 Diagram

****NOTE: We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive

Part Numbers:

• 01
• 12301-GY6-0000-HAVANA125 - Valve Cover

• 02
• 12302-GY6-A001-HAVANA125 - Breather Separate Plate

• 03
• 12391-GY6-9400-havana125 - Valve Cover Gasket

• 04
• 16100-ABP-0000-havana125 - Carburetor Assembly

• 05
• 18601-MJ1-9000-havana125 - Reed Valve Comp

• 06
• 18612-H66-0002-havana125 - Reed Valve Cover

• 07
• 18645-M9Q-0000-havana125 - A/I Pipe Gasket

• 08
• 18647-GY6-9400-havana125 - A/I Pipe

• 09
• 96001-06025-0800-HAVANA125 - Flange Bolt 6x25

• 10
• 96001-06040-08-havana125 - Flange Bolt 6x40

• 11
• 96001-06050-08-havana125 - Flange Bolt 6x50

• 12
• 1865A-ALA-6001-havana125 - A.I.C.V. Unit

• 13
• 18659-H69-0000-HAVANA125 - A.I.S.V. Stay Comp
