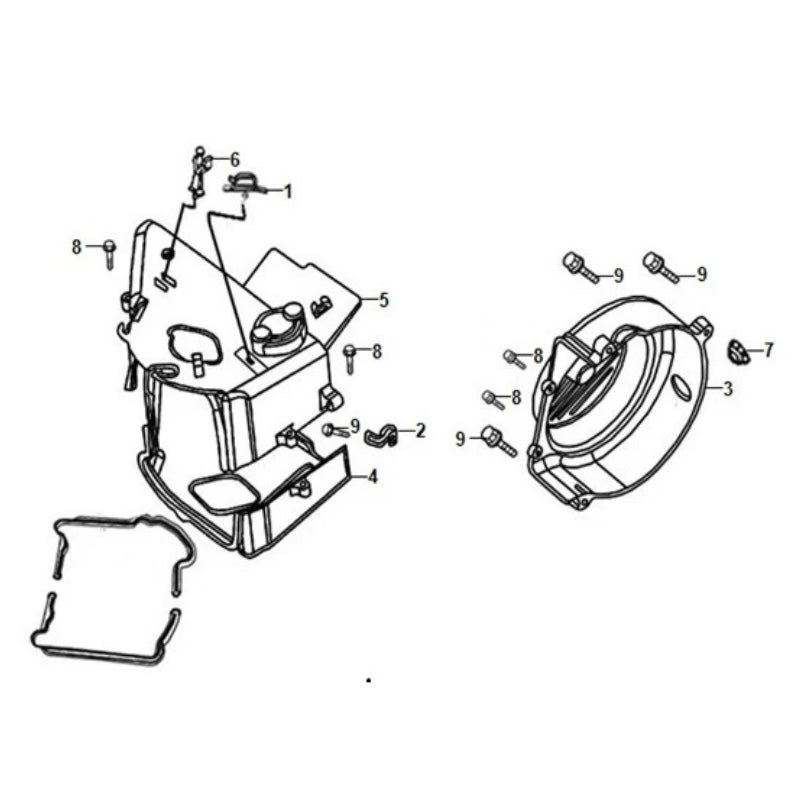

E 01 Fan Cover / Shroud Assembly - Havana Classic 125 Diagram

E 01 Fan Cover / Shroud Assembly - Havana Classic 125 Diagram

***NOTE: We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***

Part Numbers:

• 02
• 11385-GY6-9000-HAVANA125 - Drain Tube Clamp

• 03
•  1961A-GY6-A000-HAVANA125 - Fan Cover

• 04
• 1962A-GY6-A000-M2-HAVANA125 - Shroud A Assy

• 05
• 1963A-ABA-0000-HAVANA125 - Shroud B Assy

• 06
• 19631-GY6-9400-H1-HAVANA125 - Starter Motor Cord Clamp

• 07
• 70529-657-6700-HAVANA125 - Rubber Stopper

• 08
•  93904-35380-HAVANA125 - Tap Screw (5x16)

• 09
• 96001-06025-080-HAVANA125 - Flange Bolt (6x25)
