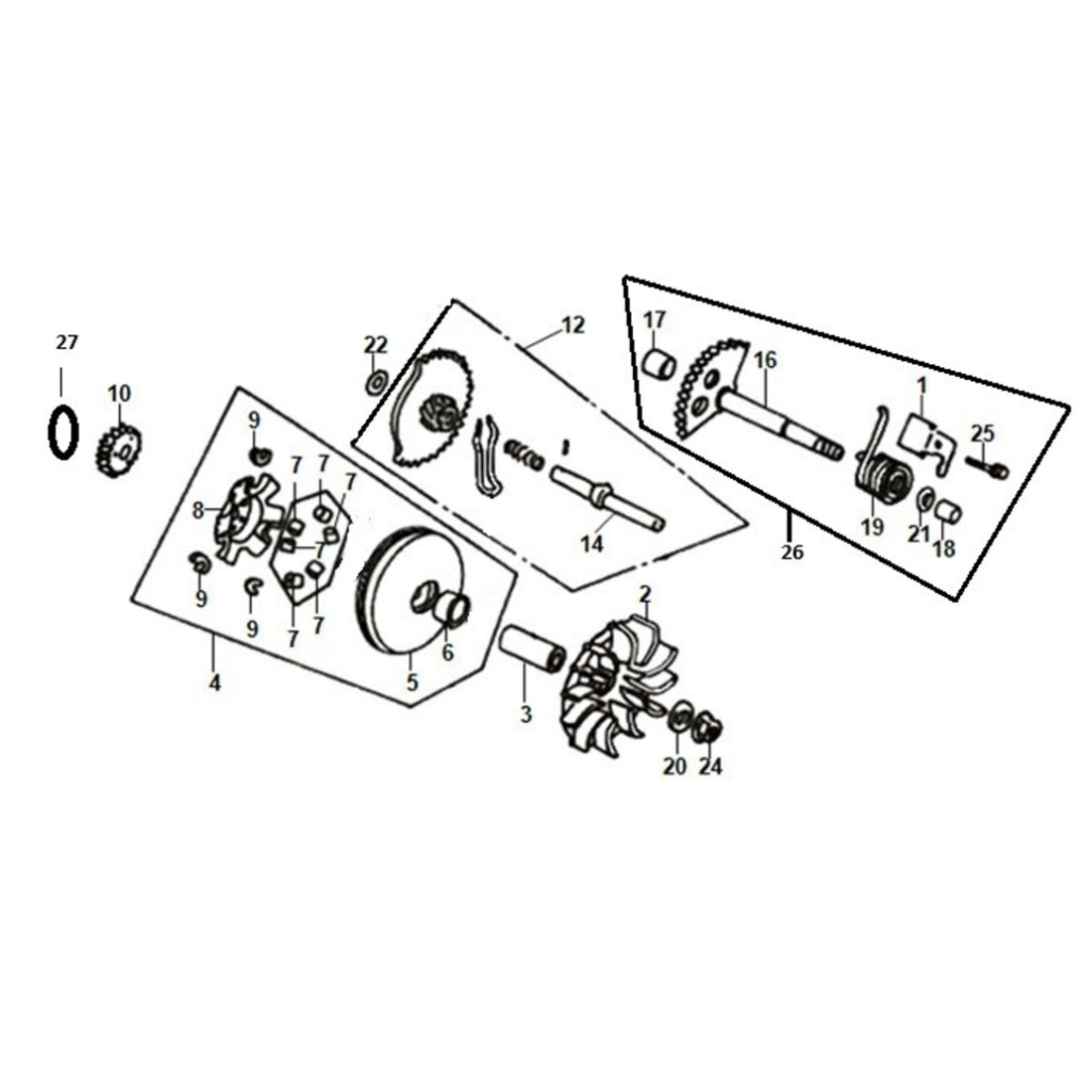

E 12 Drive Case / Kick Starter Spindle for Lance Cali Classic 125cc

Parts:

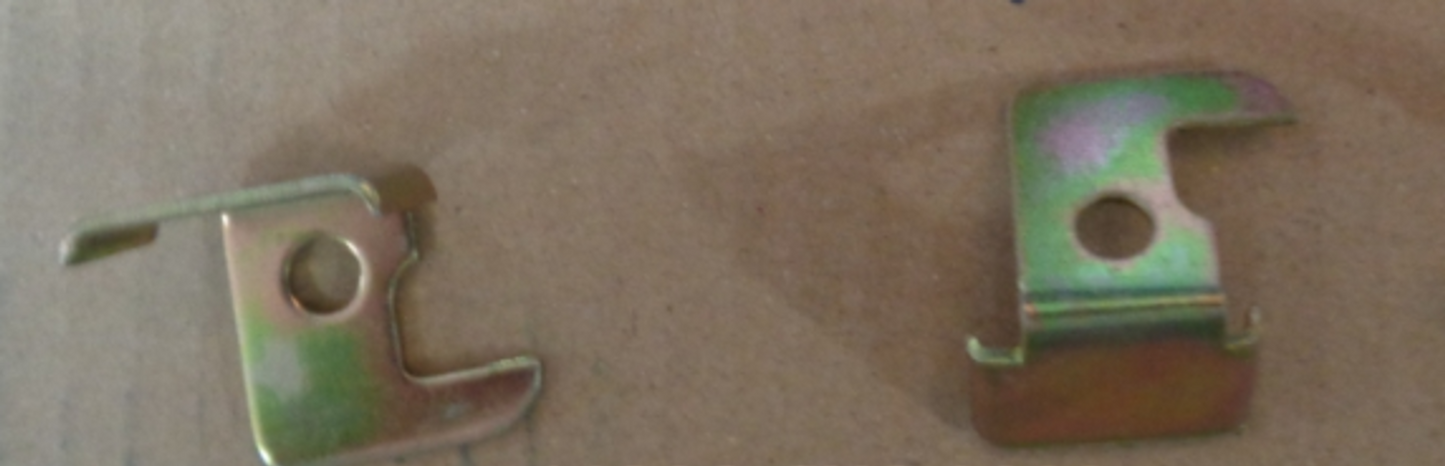

01 Kick Return Stopper Plate
11206-GY6-9000-CALI125

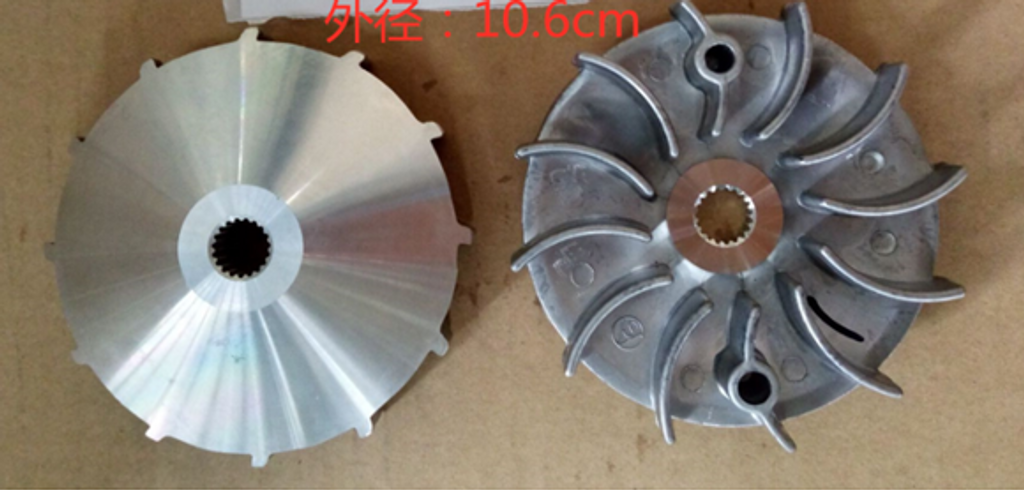

02 Drive Face Fan
22102-GY6-9000-cali125

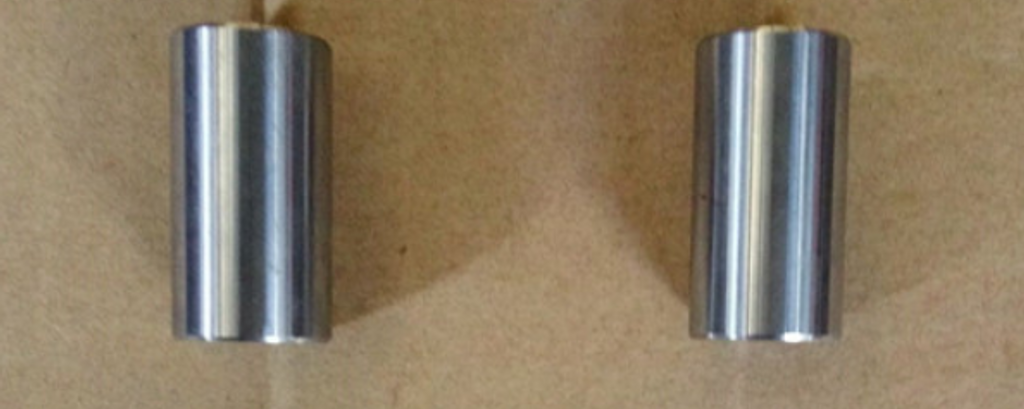

03 Drive Face Boss
22105-GY6-9001-cali125

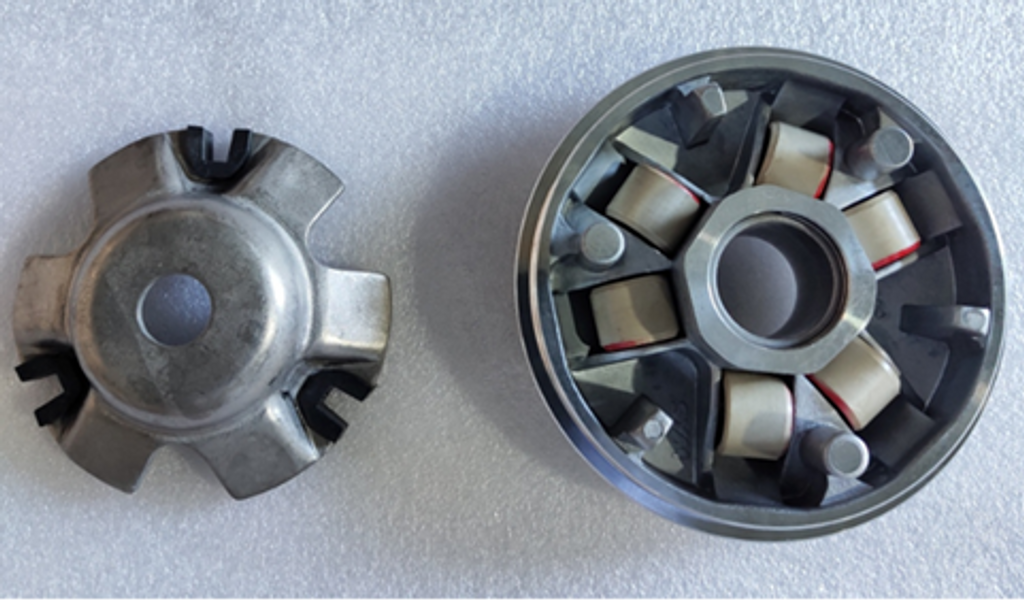

04 Movable Drive Face Assy
2211A-ABA-0000-cali125

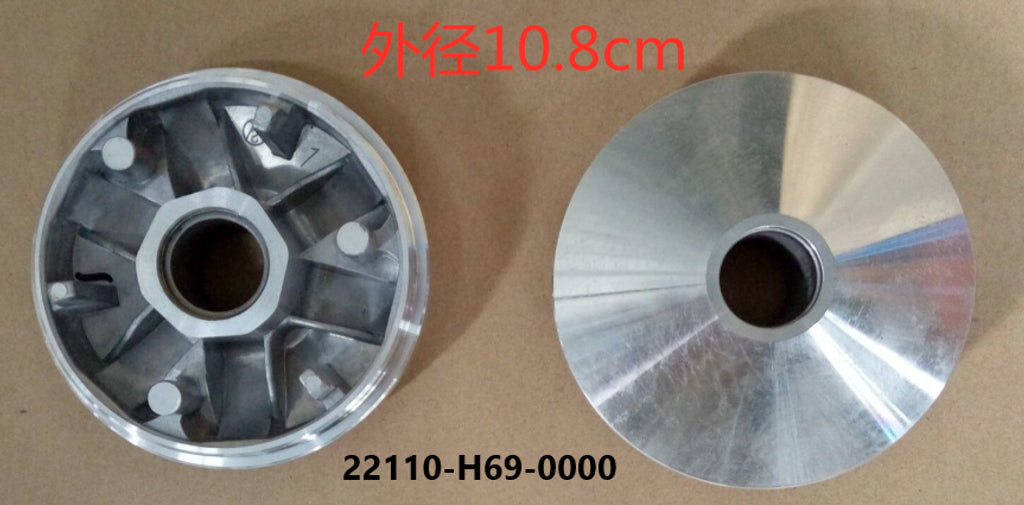

05 Movable Drive Face Comp
22110-H69-0000-CALI125

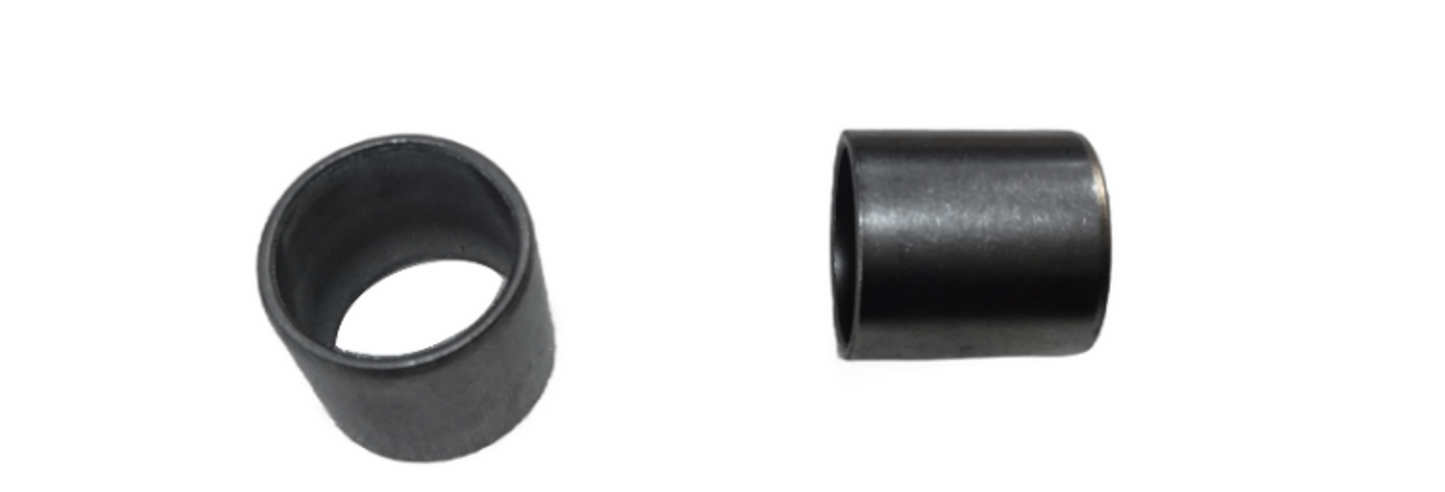

06 Bushing 24x28x30
22112-H69-3000-CALI125

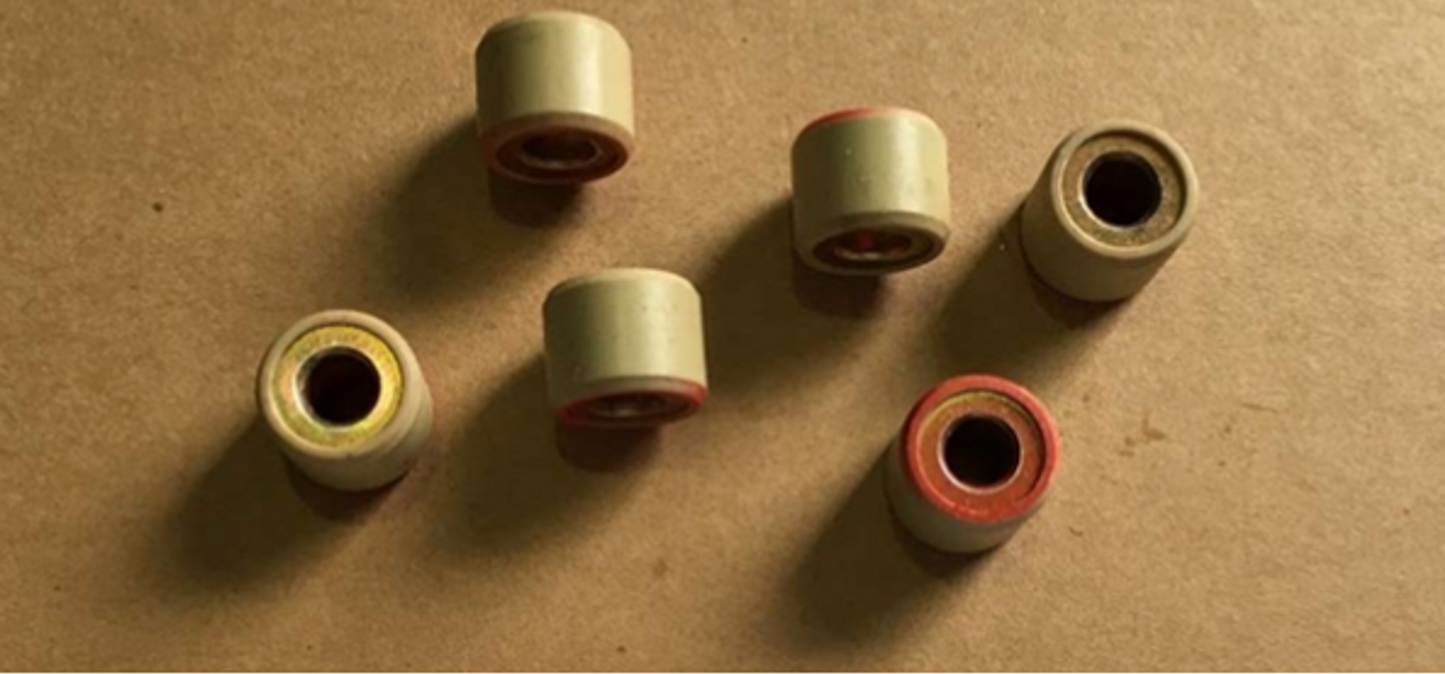

07 Weight Roller Comp 13g
22121-M9B-0000-cali125

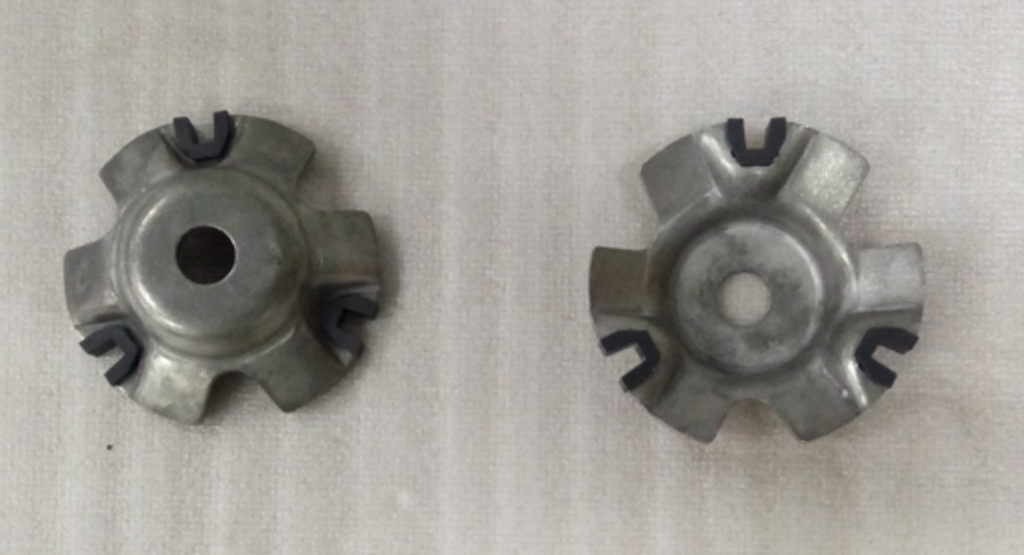

08 Ramp Plate
22131-H69-0000-cali125

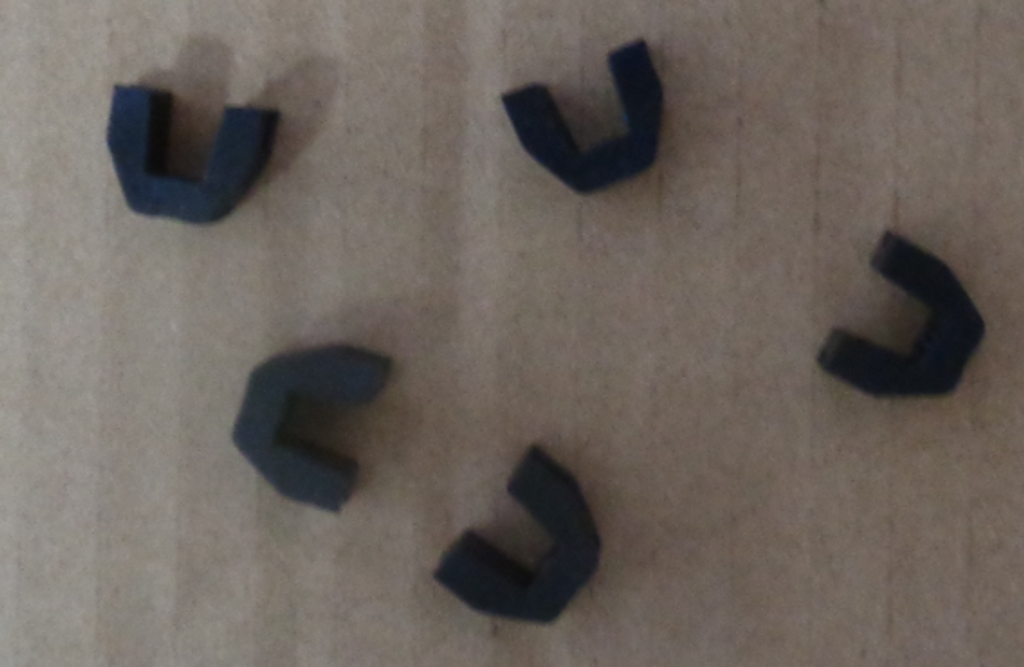

09 Slide Piece (3 per set)
22132-H69-0000-cali125

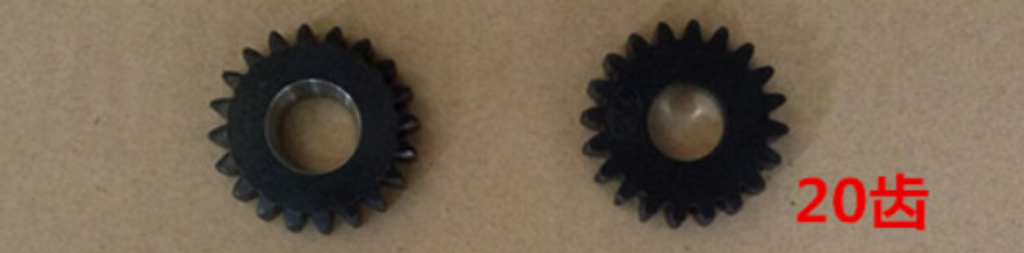

10 Kick Starter Driven Gear
28221-GY6-9000-cali125

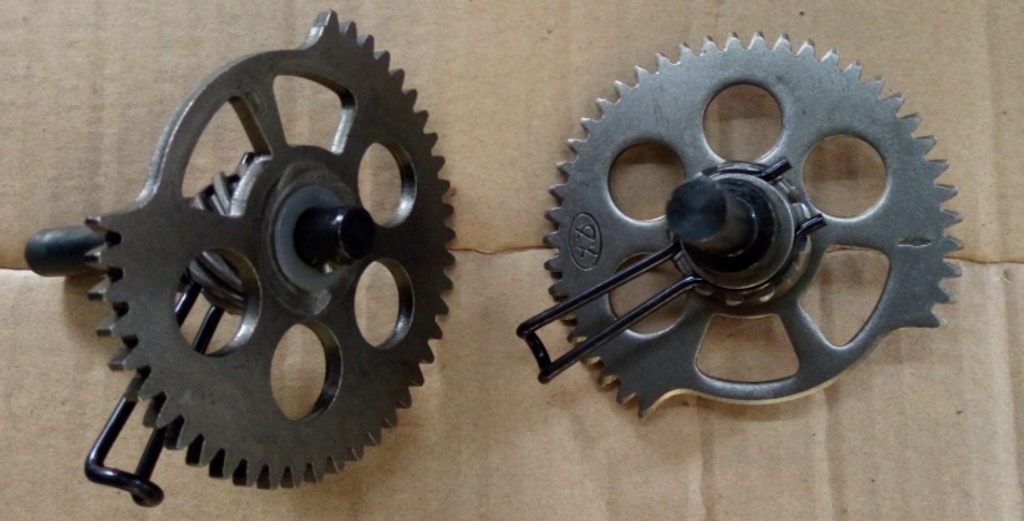

12 Starter Idle Gear
2823A-V02-9200-cali125

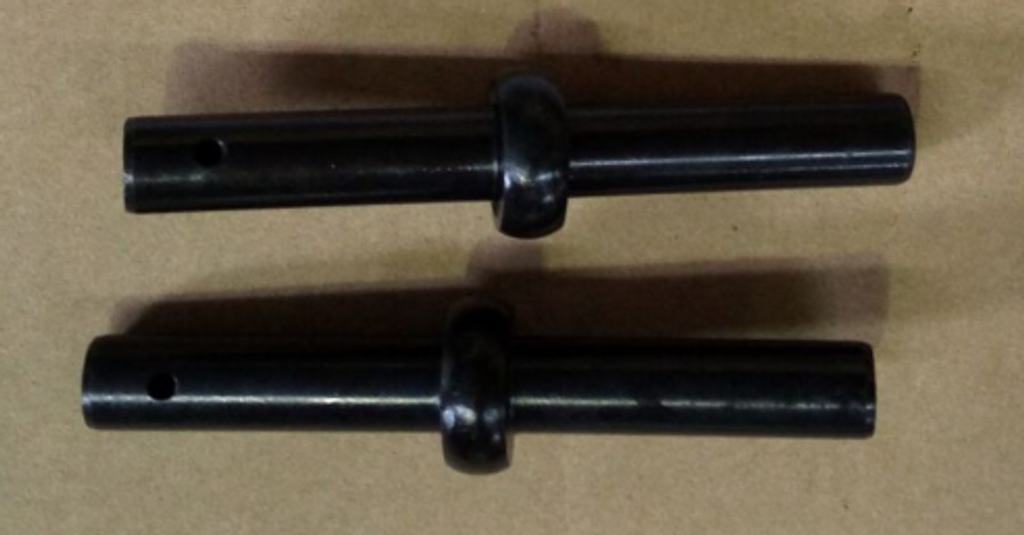

14 Starter Idle Shaft
28241-GY6-9400-cali125

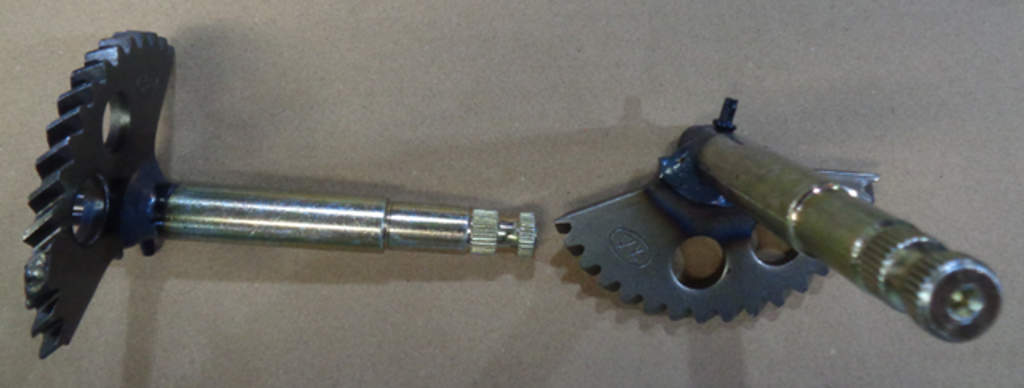

16 Kick Starter Spindle
28250-GY6-900B-cali125

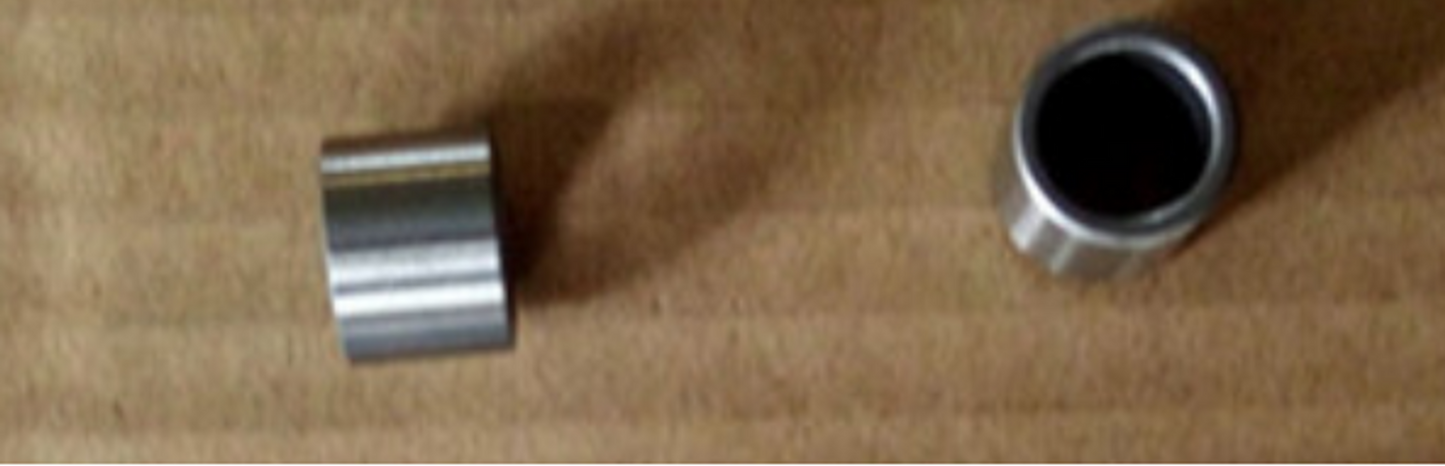

17 Bush 12x16x12
28254-GA7-003A-cali125

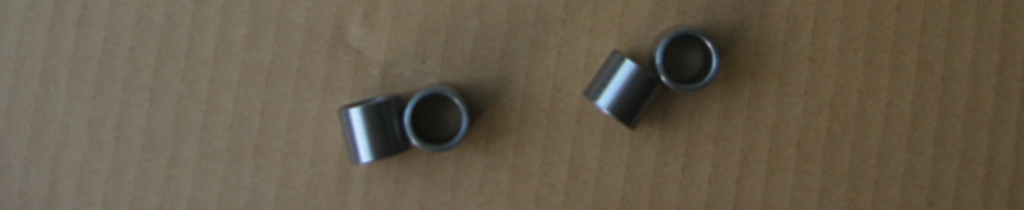

18 Kick Spindle Bush
28254-KG8-910A-cali125

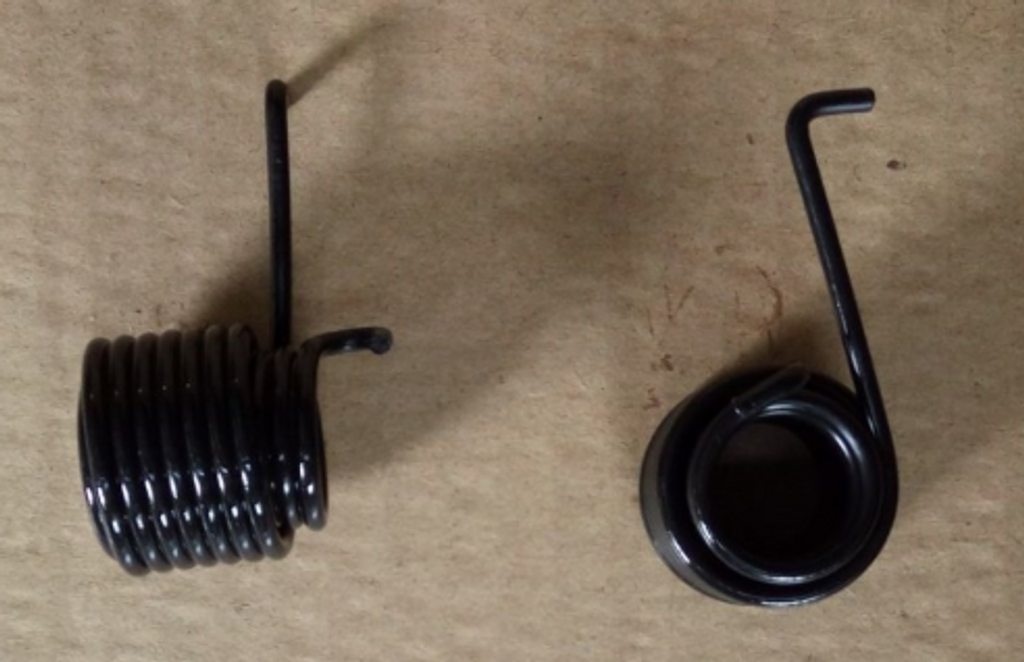

19 Kick Starter Spring
28281-KG8-9011-cali125

20 Plant Washer
90440-166-00000-CALI125

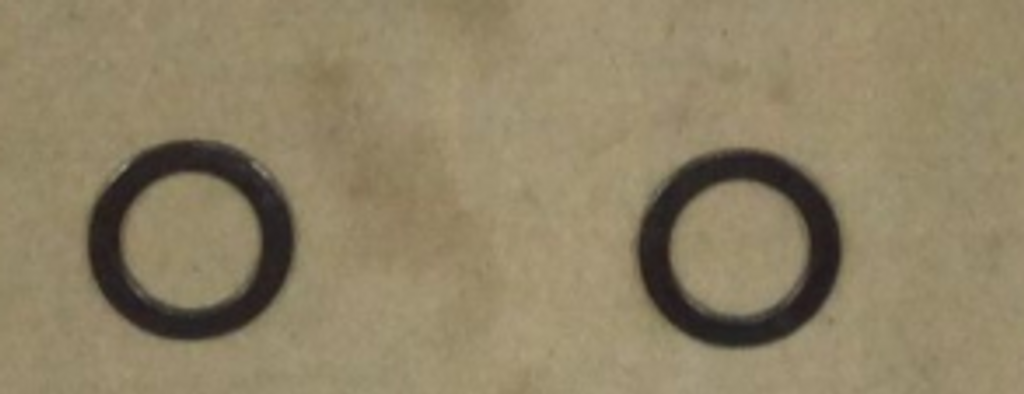

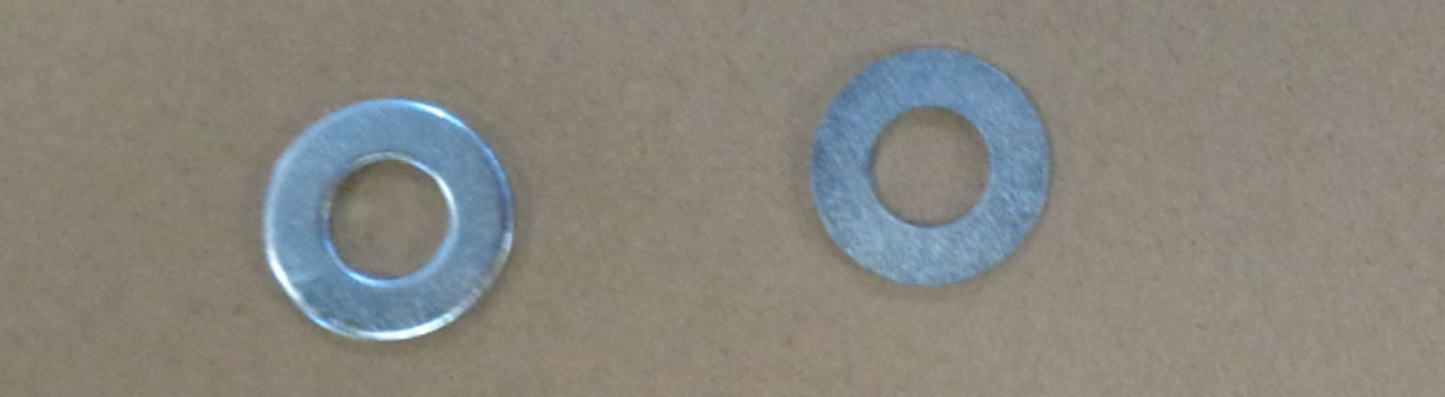

21 Washer 14.2x21x1
90451-155-0000-CALI125

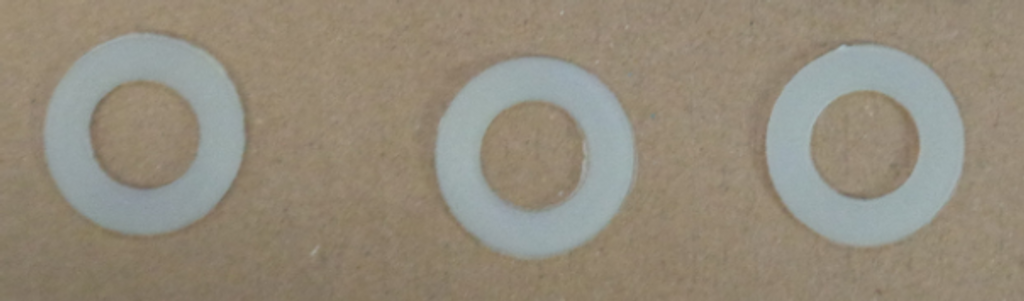

22 Washer 12.5mm
90452-KG8-0000-cali125

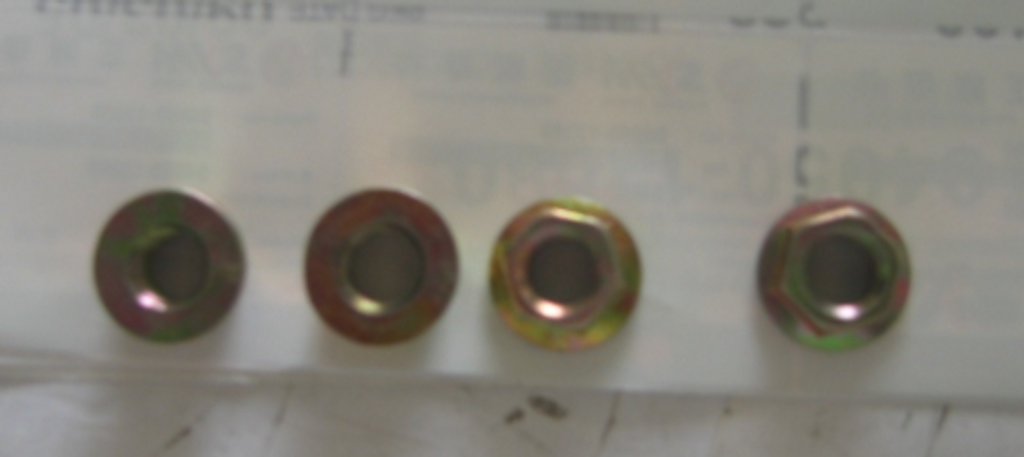

24 Flange Nut 12mm
94050-12080-0-CALI125

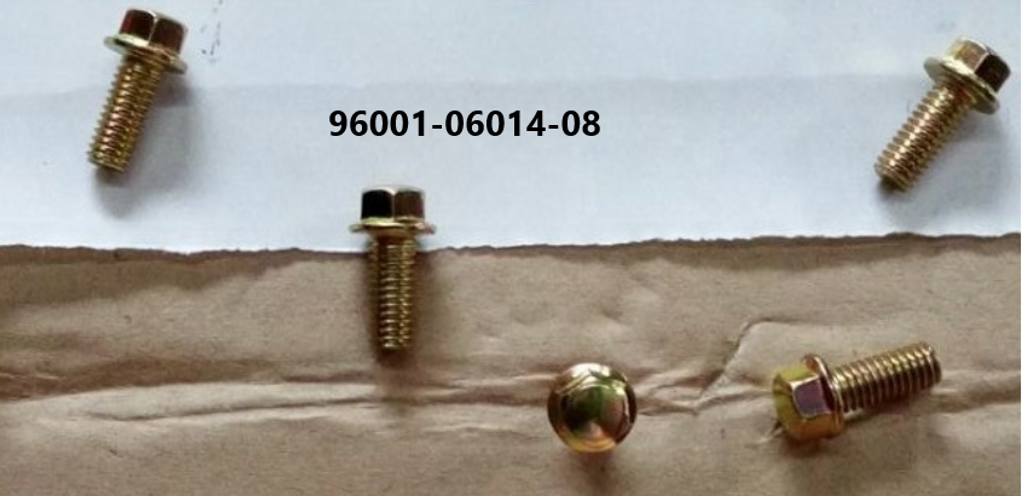

25 SH. Flange Bolt 6x14
96001-06014-08-CALI125

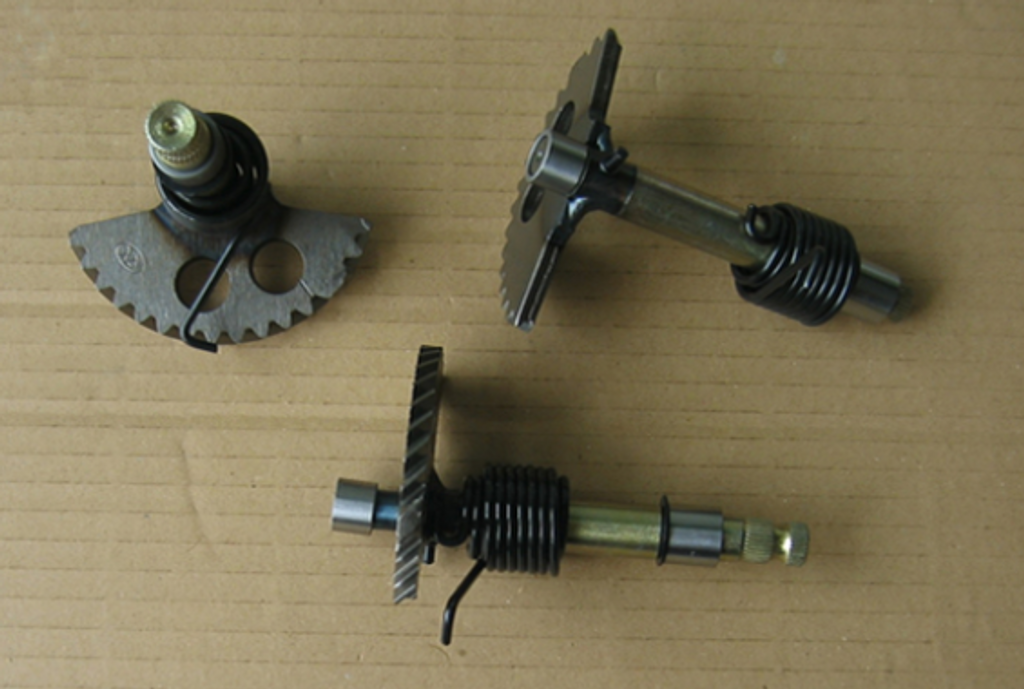

26 Kick Starter Spindle Comp
2825A-GY6-900B-cali125

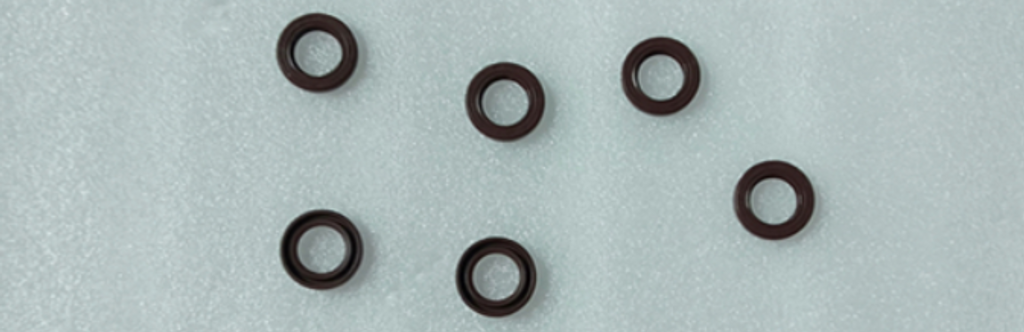

27 Oil Seal 19.8x30x5
91201-GY6-9031-cali125-2

NOTE: Please compare photos and part numbers before purchasing for quality and fitment on your scooter. It is always recommended to hire a professional mechanic for installation.

***We do not have live stock updates on diagram parts - note that we can run out of stock of select parts. If you do not want to risk your parts being on backorder, visit the contact page to check availability. Select parts may take a few weeks to arrive***
